Overview

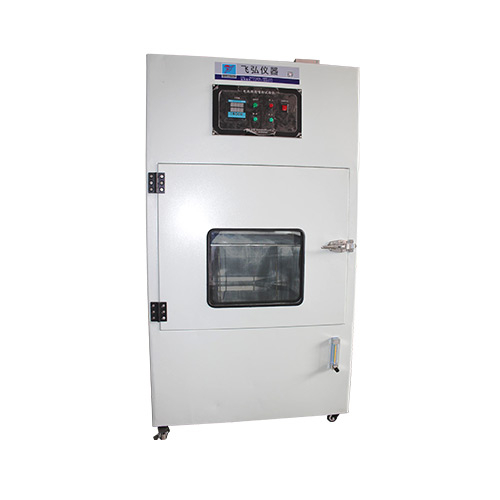

The Battery Combustion Test Chamber evaluates battery fire resistance under a controlled flame. The battery is placed on a heat-resistant mesh screen above a Bunsen burner, and the combustion process is observed and timed until the test ends.
Key Specifications
• Model: FH-5063
• Burner: Bunsen burner, 9.5 mm inner diameter, approx. 100 mm long
• Flame application time: 0–999.9 s, ±0.1 s
• Test opening diameter: 102 mm
• Octagonal mesh guard: 610 mm across flats × 305 mm high
• Protective chamber: stainless steel with tempered-glass viewing window
• Mesh guard material: stainless steel
• Octagonal cover material: aluminum
• Gas: LPG or methane
• Dimensions: approx. 750 × 750 × 1000 mm
• Power: 220 V, 50/60 Hz, 5 A
Standards
UL 1642-2008, UL 2054-2008, SJ/T 11170 and SJ/T 11169.
