Overview

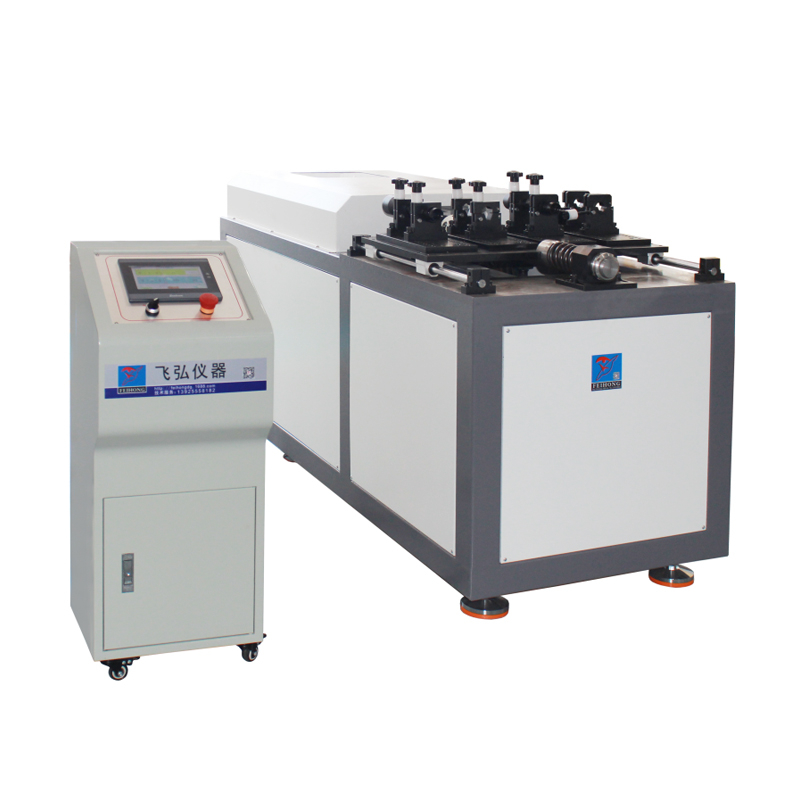

This four-station impact testing machine simulates firearm recoil to evaluate the reliability of riflescopes and their mounting components. Multiple samples can be tested at the same time for efficient durability verification.
Key Specifications
• Test stations: 4
• Impact acceleration per sample: 600–1200 G
• Display and control: touchscreen
• Test cycles: 1–999,999,999, programmable
• Impact frequency: 10–100 impacts per minute, adjustable
• Test bench dimensions: 1950 × 780 × 1060 mm
• Control cabinet dimensions: 370 × 350 × 910 mm
• Power supply: 380 V, 3.7 kW
Applications
Suitable for repeated recoil-impact testing of riflescopes, optical sights and mounting assemblies to verify structural durability and fastening reliability.
