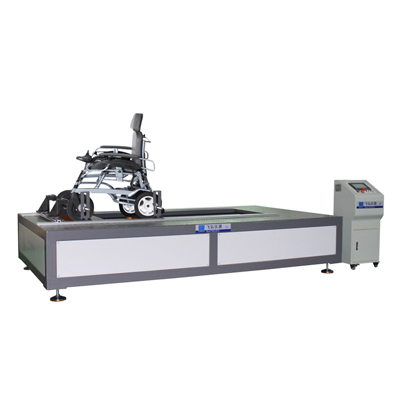

WHEELCHAIR DYNAMIC ROAD DURABILITY AND PERFORMANCE TESTING MACHINE
PRODUCT OVERVIEW
This test bench is designed for four-wheel mobility products including camping carts, warehouse carts, logistics vehicles and powered wheelchairs. It performs simulated load, climbing, road-condition, maximum-speed, driving-range and low-voltage protection tests. Weighted loading reproduces passenger or cargo loads for realistic durability evaluation.
MAIN TEST FUNCTIONS
• Simulated level-road running on a large roller
• Climbing performance simulation using an adjustable magnetic-powder brake load
• Maximum-speed measurement through a roller-shaft encoder
• Driving-range testing with automatic distance recording
• Low-voltage protection performance verification
• Loaded endurance testing for wheelchairs and other four-wheel vehicles
TECHNICAL SPECIFICATIONS
Roller diameter: 300 mm, knurled surface with anti-rust treatment
Roller width: 750 mm
Adjustable roller range: 400–1760 mm
Distance measurement accuracy: ≤1%
Speed measurement accuracy: ≤2%
Magnetic-powder brake torque range: 0–100 N·m
Test bench dimensions: Approx. 2900 × 165 × 630 mm
Control cabinet dimensions: Approx. 310 × 350 × 910 mm
APPLICATIONS
Powered wheelchair development, mobility vehicle performance validation, loaded road endurance testing, climbing evaluation, maximum-speed testing, range verification and production quality inspection.
Note: Specifications and fixture configuration may be adjusted according to the confirmed vehicle dimensions and test requirements.
