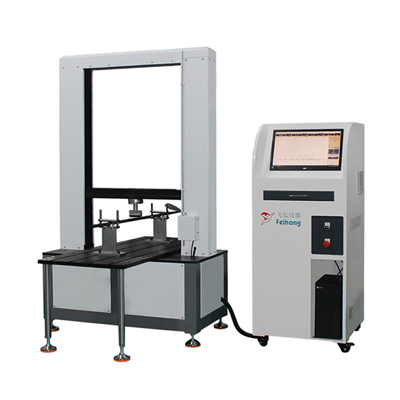

Universal Material Testing Machine

Performs tensile, compression, bending, shear, peel and tear tests with computer-controlled force, displacement and curve analysis.
Availability:
Quantity:
Inquire

  • Feihong

universal material testing machine tensile compression bending tester
Product Description

Functions

  • Tensile, compression, bending, shear, peel and tear testing.
  • Computer-controlled force, displacement and test-curve display.
  • Automatic calculation, data storage and report output.

Technical Specifications

Maximum Load 5,000 kg
Accuracy Class Class 0.5
Effective Force Range 0.4%–100%
Force Accuracy Within ±0.5% of indicated value
Dimensions 800 × 600 × 2,000 mm (L × W × H)
Drive System Servo motor with high-precision ball screw
Power Supply 220 V, 50 Hz
Rated Power 1.5 kW
Approx. Weight 400 kg
