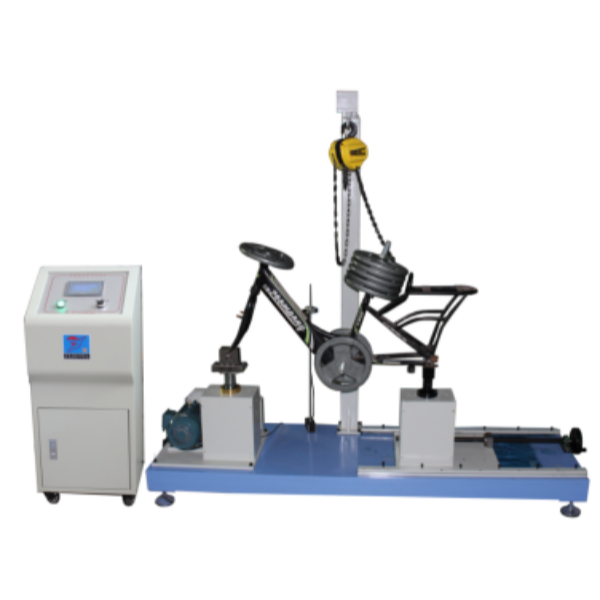

The Bicycle Frame Vertical Vibration Fatigue Testing Machine is designed to evaluate the structural durability and fatigue resistance of bicycle and electric bicycle frames under repeated vertical vibration loading conditions.

Developed in accordance with JIS D9401 and GB 17761 testing requirements, the system simulates continuous vertical vibrations experienced during real-world riding over uneven roads, pavement joints, rough terrain, and long-distance commuting conditions.

The frame specimen is mounted on a dedicated fixture while a specified load is applied to the saddle, head tube, and bottom bracket areas. The machine then subjects the frame to cyclic vertical vibration at controlled frequencies and amplitudes to verify structural integrity, fatigue life, and long-term reliability.

The test helps manufacturers identify weaknesses in frame geometry, weld joints, tubing design, and material selection before products enter mass production.

Applicable Standards

• JIS D9401 – Bicycle Frame Vibration Durability Test

• GB 17761 – Electric Bicycle Safety Requirements

• Internal OEM Quality Standards

• Product Development Validation Programs

• Endurance & Reliability Testing Protocols

Testing Logic & Purpose

Why Perform Vertical Vibration Testing?

During actual riding, bicycle frames are exposed to millions of repetitive vertical impacts generated by:

• Road irregularities

• Pavement joints

• Gravel roads

• Curbs

• Rider weight transfer

• Continuous vibration from wheel-road interaction

Although individual impacts may be relatively small, repeated loading can lead to:

• Weld cracking

• Frame deformation

• Joint loosening

• Material fatigue failure

This test accelerates years of riding stress into a controlled laboratory environment, enabling manufacturers to predict long-term durability.

Vertical Dynamic Fatigue Test

Testing Logic

The frame is securely mounted with:

• Saddle load applied according to the standard

• Bottom bracket load applied on both sides

• Head tube/front frame load fixed

• Wheel axle positions maintained horizontally

The machine generates repeated vertical oscillation through an eccentric cam mechanism.

The frame experiences:

• Cyclic vertical displacement

• Dynamic rider weight simulation

• Repeated stress concentration around welded joints

• Continuous fatigue loading

After the specified test cycles are completed, inspectors evaluate:

• Cracks

• Fractures

• Permanent deformation

• Looseness of structural joints

Test Objective

To verify whether the bicycle frame can withstand long-term riding vibration without structural failure.

Adjustable Frequency Control

Testing Logic

Different frame designs have different natural frequencies.

The machine allows vibration frequency adjustment between:

6–10 Hz

to avoid resonance conditions while accurately reproducing real riding environments.

Test Objective

To evaluate fatigue behavior under various riding frequencies and loading conditions.

Adjustable Amplitude Simulation

Testing Logic

The vibration amplitude can be adjusted to simulate different road severities.

Test Objective

To assess frame durability under:

• Urban commuting

• Trekking use

• Mountain riding

• Heavy-load electric bicycle applications

Key Features

JIS D9401 & GB17761 Compliant Design

Specifically developed for bicycle and electric bicycle frame durability verification.

Wide Frame Compatibility

Supports wheelbase dimensions ranging from:

500 mm – 1200 mm

allowing testing of:

• City bikes

• Trekking bikes

• Mountain bikes

• Road bikes

• Electric bicycles

Adjustable Vibration Parameters

• Frequency: 6–10 Hz

• Amplitude: 0–25 mm

• Speed: 0–100 RPM

High Stability Mechanical Structure

• Heavy-duty steel frame

• Precision eccentric cam drive

• Long-term continuous operation capability

Automatic Cycle Counting

OMRON and Schneider electrical components provide reliable cycle monitoring and automatic test termination.

Technical Specifications

FAQ

Q1: Why is vertical vibration testing important for bicycle frames?

Vertical vibration testing reproduces the repeated up-and-down loads that occur during normal riding. It helps identify fatigue cracks, weld failures, and structural weaknesses before products reach the market.

Q2: What is the difference between vibration testing and frame fatigue loading tests?

A vibration test simulates continuous road-induced oscillations affecting the entire frame structure, while traditional fatigue tests usually apply concentrated loads to a specific area such as the head tube or bottom bracket.

Both tests are complementary and are often required for complete durability validation.

Q3: Why must resonance be avoided during testing?

Every frame has its own natural frequency. Testing at resonance can create unrealistic stress amplification and may not represent actual riding conditions. JIS D9401 therefore recommends selecting vibration frequencies between 6 and 10 Hz while avoiding resonance points.

Q4: Which frame areas are most likely to fail during vibration testing?

The most critical areas typically include:

• Head tube welds

• Seat tube junctions

• Bottom bracket shell

• Rear triangle connections

• Suspension mounting points (for e-bikes and MTB frames)

Monitoring these locations helps engineers improve frame durability and safety.

Q5: What other testing machines are commonly purchased together with this equipment?

Customers building a complete bicycle frame testing laboratory typically combine this machine with:

• Frame Horizontal Fatigue Testing Machine (ISO 4210-6.4.4)

• Frame Vertical Fatigue Testing Machine (ISO 4210-6.4.5)

• Frame/Fork Impact Testing Machine

• Front Fork Fatigue Tester

• Handlebar Fatigue Testing Machine

• Pedal Fatigue Testing Machine

• Drop Test Machine

• Complete Bicycle Road Simulation Durability Test Bench
