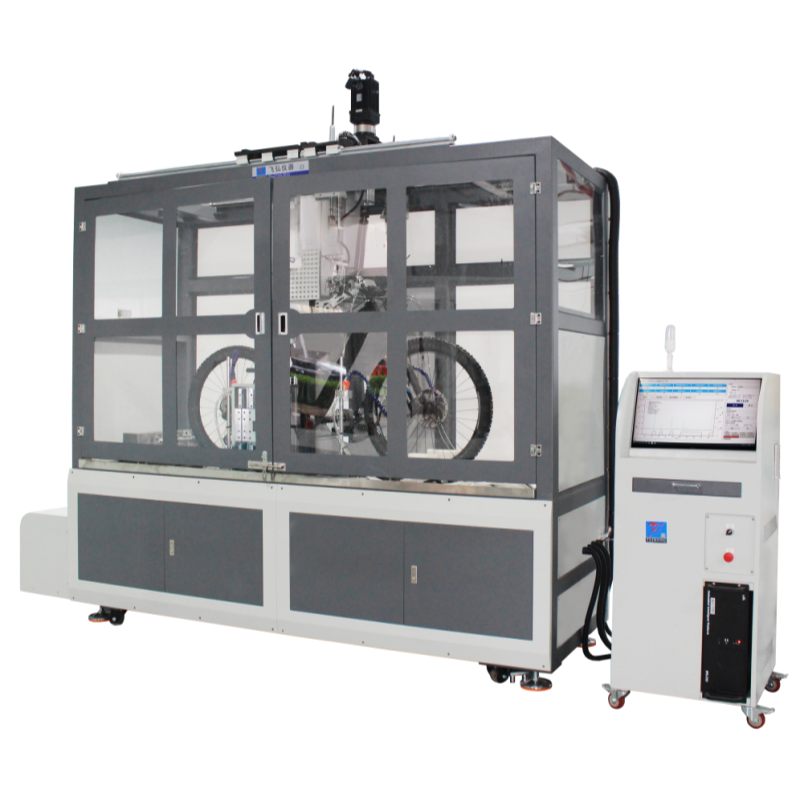

The Bicycle Mud Riding Simulation Test Bench is an advanced environmental durability and performance validation system designed to reproduce real-world muddy riding conditions for bicycles and e-bikes.

Unlike conventional mud spray equipment, this platform integrates drivetrain operation, braking, shifting, suspension movement, steering input, wheel wobble simulation, rider load application, and mud circulation into a single automated test environment.

The system enables manufacturers to evaluate the long-term reliability and performance of complete bicycles, frames, suspension systems, drivetrains, brakes, and electric-assist systems under severe off-road conditions.

Ideal for mountain bikes, e-MTBs, gravel bikes, cargo bikes, commuter bicycles, and performance e-bikes.

Key Testing Functions and Testing Logic

Mud Exposure & Contamination Testing

Purpose

Evaluate how mud, water, and abrasive particles affect bicycle components during long-term operation.

Testing Logic

The system continuously sprays recirculated mud onto critical bicycle components while the drivetrain, suspension, steering, and braking systems remain active.

Engineers can analyze:

• Mud ingress resistance

• Seal effectiveness

• Bearing protection

• Drivetrain contamination

• Component wear

Adjustable Parameters

• Mud flow rate: 0–12 L/min

• Spray duration

• Spray cycle intervals

• Continuous or intermittent operation

Drivetrain Endurance Testing

Purpose

Verify drivetrain reliability under contaminated riding conditions.

Testing Logic

A servo-driven crank system applies programmable torque and cadence to drive the chain and rear wheel.

The system simulates:

• Climbing efforts

• High torque pedaling

• Continuous riding

• Variable cadence conditions

Adjustable Parameters

• Torque: 0–100 Nm

• Cadence: 0–145 rpm

Gear Shifting Reliability Testing

Purpose

Assess shifting performance while exposed to mud and contamination.

Testing Logic

Automated shifting actuators repeatedly change gears according to a programmable duty cycle.

Engineers can evaluate:

• Shift accuracy

• Shift delay

• Cable contamination effects

• Derailleur durability

Brake Performance Testing

Purpose

Evaluate braking consistency in muddy environments.

Testing Logic

Electronic brake actuators apply controlled braking force during operation while the drivetrain remains active.

This allows engineers to monitor:

• Brake response

• Pad contamination

• Braking consistency

• Component wear

Rear Wheel Lateral Load Testing

Purpose

Simulate wheel deflection and side loading encountered during off-road riding.

Testing Logic

A programmable actuator applies cyclic side loads to the rear wheel.

This reproduces:

• Cornering forces

• Trail impacts

• Frame torsional loading

• Wheel tracking disturbances

Adjustable Parameters

• Travel: ±100 mm

• Frequency: 0.1–1 Hz

Suspension & Frame Durability Testing

Purpose

Evaluate fatigue resistance of the frame, fork, linkage, and rear suspension system.

Testing Logic

Vertical loads are applied to the saddle and stem while the bicycle operates continuously.

This reproduces:

• Rider weight transfer

• Terrain-induced impacts

• Suspension compression cycles

• Frame fatigue accumulation

Adjustable Parameters

• Load range: 0–150 kg

• Frequency: 0.1–1 Hz

Steering Durability Testing

Purpose

Assess steering system reliability during long-term riding.

Testing Logic

Automated steering inputs repeatedly rotate the handlebar while the bicycle remains under load.

Engineers can evaluate:

• Bearing wear

• Cable routing interference

• Steering stability

• Frame stress distribution

Adjustable Parameters

• Steering angle: 0–45°

• Frequency: 0.1–1 Hz

Data Acquisition & Control System

The software platform supports fully programmable ride cycles.

Engineers can import test profiles through Excel or CSV files and automate complete durability programs.

Functions include:

• Custom riding scenarios

• Multi-stage test sequences

• Pause commands

• Cycle repetition

• Adjustable execution speed

• Real-time parameter monitoring

Recorded Parameters:

• Pedaling torque

• Cadence

• Brake force

• Shift position

• Steering angle

• Mud flow rate

• Suspension load

• Rear wheel lateral displacement

All test data can be stored, analyzed, and exported for reporting.

Typical Applications

• Mountain Bike Development

• E-MTB Validation

• Gravel Bike Testing

• E-Bike Reliability Testing

• Suspension System Evaluation

• Drivetrain Durability Testing

• Brake Performance Testing

• Component Supplier Validation

• Product Certification Preparation

• Accelerated Lifecycle Testing

FAQ

Q1. Why is mud simulation testing important for mountain bikes and e-bikes?

Mud is one of the most aggressive contaminants encountered during real-world riding. It accelerates wear on drivetrains, bearings, suspension seals, and braking systems. Controlled mud testing helps manufacturers identify weaknesses before products reach the market.

Q2. Why combine pedaling, braking, shifting, and mud exposure in a single test?

Real-world riding conditions involve multiple systems operating simultaneously. Testing components individually often fails to reveal interaction-related failures. Integrated testing provides a more realistic assessment of product reliability.

Q3. What is the purpose of rear wheel lateral load simulation?

Rear wheel side loading reproduces cornering forces, uneven terrain impacts, and frame torsion experienced during off-road riding. This helps evaluate frame stiffness, wheel durability, and suspension performance.

Q4. Can this system evaluate e-bike drive units?

Yes. The programmable crank drive and adjustable DC power supply allow testing of mid-drive motors, drivetrain components, and e-bike systems under realistic muddy riding conditions.

Q5. How does programmable ride-cycle testing improve product development?

Engineers can create repeatable test profiles that simulate specific riding environments, such as cross-country racing, trail riding, commuting, or cargo transport. This allows direct comparison between design iterations and significantly shortens development cycles.
