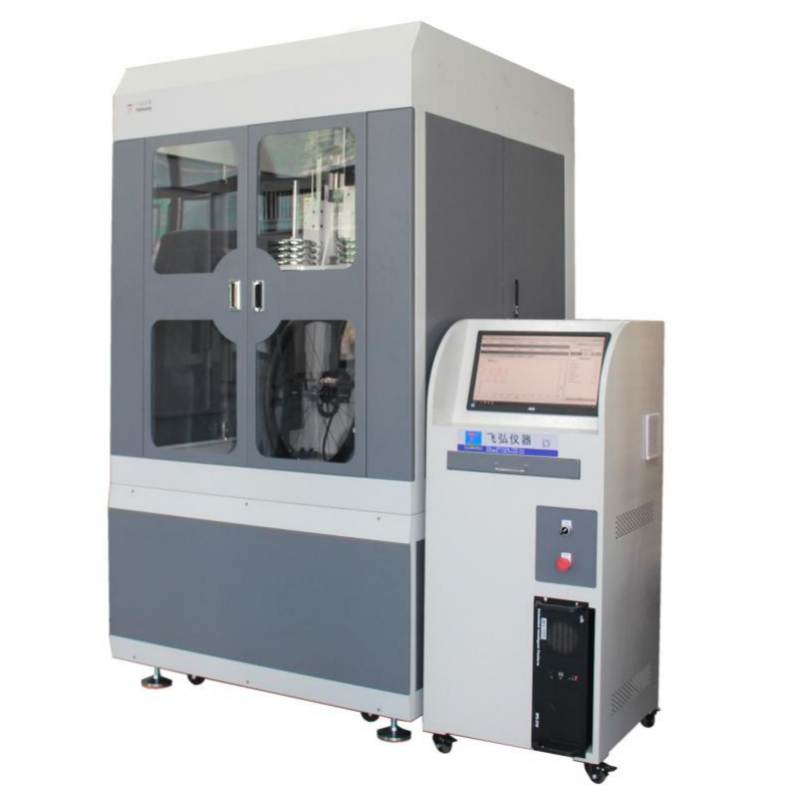

The Bicycle Rim Runout & Durability Testing Machine is designed to evaluate the structural durability, lateral runout, braking performance, and dynamic riding characteristics of bicycle wheels and rims. The system complies with EN 14764:2005 and ISO 4210:2014 standards and is widely used by wheel manufacturers, bicycle OEMs, testing laboratories, and quality control departments.
The machine uses a large drive roller to rotate the test wheel under controlled loading conditions. A direct-weight loading system applies realistic vertical loads to accurately simulate actual riding conditions. By incorporating road obstacles and programmable speed control, the equipment can reproduce real-world cycling environments and evaluate wheel durability and performance.
The industrial computer control system provides automated testing, data collection, and result analysis, ensuring high repeatability and accuracy.
Key Features:
• Designed according to EN 14764:2005 and ISO 4210:2014
• Dynamic wheel endurance and runout testing
• Direct vertical weight loading for realistic simulation
• Road obstacle simulation capability
• Wheel brake performance evaluation
• Temperature rise monitoring during testing
• Forward and reverse rotation operation
• Industrial PC control system
• Automatic test data recording and analysis
• Suitable for bicycle wheels, rims, and wheel assemblies
Supported Test Functions:
• Wheel Load Capacity Test
• Dynamic Road Simulation Test
• Lateral Runout (Wobble) Test
• Brake Performance Test
• Temperature Rise Test
• Wheel Durability Evaluation
• Obstacle Impact Simulation
Applications:
• Bicycle Wheel Manufacturers
• Rim Manufacturers
• Bicycle OEM Factories
• E-bike Wheel Testing
• Quality Control Laboratories
• Certification and Compliance Testing Centers
• Product Development and Validation Laboratories
Applicable Standards:
• EN 14764:2005
• ISO 4210:2014
Technical Specifications:
Loading Method: Direct Vertical Weight Loading
Maximum Load: 1500 N
Obstacle Angle: 30°
Speed Range: 0.05 – 35,000 m/h (Programmable)
Rotation Direction: Forward and Reverse
Platform Lift Range: 50 – 200 mm
Travel Measurement Accuracy: ≤ ±0.5 m
Travel Control Range: 0.05 – 99.9 km
Time Measurement Accuracy: 0.1 s
Control System: Industrial Computer
Machine Dimensions:
Test Platform: 1340 × 1390 × 2400 mm
Electrical Cabinet: 600 × 630 × 1850 mm
Machine Weight: Approx. 510 kg
Power Supply: 380V ±10%
Frequency: 50 Hz
Power Consumption: 5.5 kW
Benefits:
• Simulates real-world riding and loading conditions
• Evaluates wheel durability and structural reliability
• Supports international bicycle testing standards
• Improves product quality and consistency
• Provides accurate runout and performance data
• Suitable for R&D, production, and certification testing
FAQ
Q: What types of wheels can be tested?
A: The machine is suitable for bicycle wheels, rims, wheel assemblies, and e-bike wheels with customized fixtures.
Q: Which standards does the machine comply with?
A: It is designed according to EN 14764:2005 and ISO 4210:2014 bicycle testing standards.
Q: Can the machine simulate road conditions?
A: Yes. Removable obstacles can be installed on the drive roller to simulate rough road conditions and impact loads.
Q: What is the maximum test load?
A: The machine can apply a direct vertical load of up to 1500 N.
Q: Can brake performance be evaluated during testing?
A: Yes. The system supports wheel brake performance testing and temperature rise monitoring during operation.
