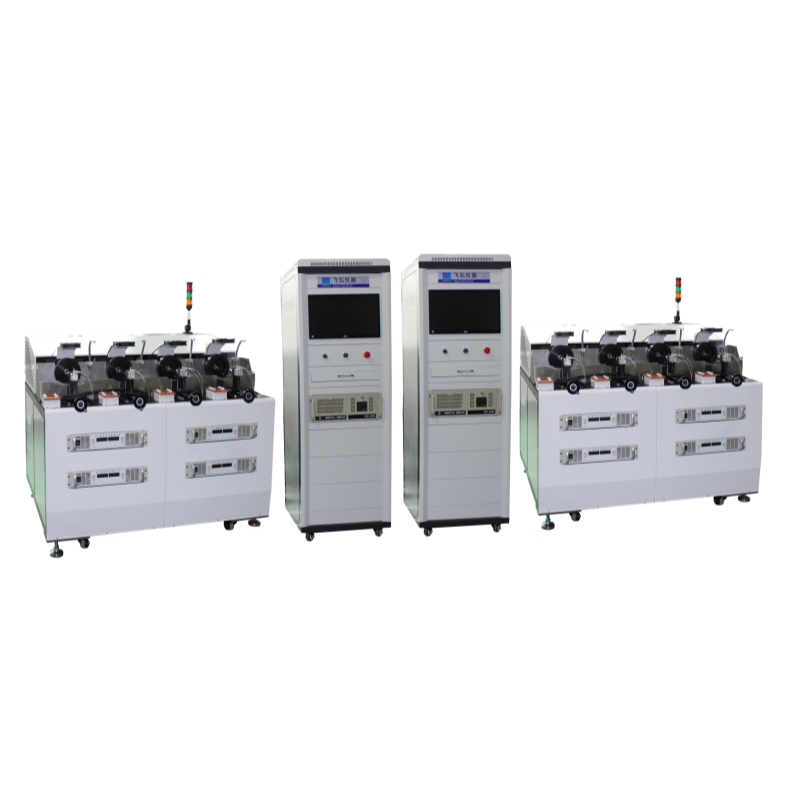

The 8-Station Hub Motor Life Test Bench is specifically designed for endurance testing, reliability verification, aging evaluation, and performance characterization of electric bicycle hub motors.

The system enables simultaneous testing of up to eight hub motors, significantly increasing laboratory efficiency and reducing validation time. Each workstation operates independently, allowing different loading conditions, torque profiles, and test cycles to be executed simultaneously.

A magnetic powder brake loading system combined with high-precision torque sensor feedback provides accurate closed-loop torque control, ensuring stable and repeatable load simulation throughout long-term durability testing.

The equipment is ideal for hub motor manufacturers, electric bicycle OEMs, research institutions, certification laboratories, and quality control departments.

Key Features

• Simultaneous testing of up to 8 hub motors

• Independent control for each test station

• Continuous torque loading and release cycle testing

• Motor life cycle and durability evaluation

• Motor aging and reliability verification

• Closed-loop torque control system

• Automatic fault diagnosis and protection

• Automatic test data storage and export

• Real-time cycle counting and monitoring

• Dedicated cooling system for magnetic powder brakes

• Independent parameter settings for each workstation

• Automatic test report generation

Test Functions

Hub Motor Endurance Testing

Simulates long-term operating conditions by applying programmable cyclic torque loads.

Life Cycle Testing

Evaluates motor durability through continuous load and unload cycles over extended periods.

Aging Test

Monitors performance degradation during prolonged operation.

Torque Loading Verification

Applies precise torque loads using magnetic powder brake technology.

Performance Characterization

Measures motor operating characteristics and generates performance curves.

Reliability Assessment

Validates motor performance under various operating conditions and load profiles.

Technical Specifications

Mechanical Structure

Test Platform

• Heavy-duty welded steel frame construction

• Cold-rolled steel working surface

• Mobile design with industrial casters

• Protective safety enclosure with mesh doors

Test Fixtures

• 8 quick-change motor mounting fixtures

• Fast installation and replacement

• Secure motor clamping system

Cooling System

• Dedicated cooling system for magnetic powder brakes

• Prevents overheating during long-term testing

• Ensures stable torque output accuracy

Control & Monitoring System

Each workstation is equipped with:

• Independent start/stop control

• Operating status indicators

• Real-time cycle monitoring

• Individual test parameter settings

• Independent fault monitoring

Tri-color tower light indication:

Green: Normal Operation

Yellow: Standby / Pause Status

Red: Fault or Alarm Condition

Main Components

Generated Test Reports

The software automatically records and generates:

• Torque-Time Curves

• Torque-Speed Curves

• Endurance Cycle Counts

• Load History Records

• Motor Performance Curves

• Pass/Fail Judgement Results

• Historical Data Comparison

• Exportable Test Reports

Applications

• E-Bike Hub Motor Manufacturers

• Electric Bicycle OEM Factories

• Motor Research & Development Centers

• Product Certification Laboratories

• Quality Control Departments

• University Research Laboratories

• Third-Party Testing Organizations

Advantages

High Throughput Testing

Eight motors can be tested simultaneously, dramatically improving validation efficiency.

Independent Multi-Station Control

Each station can run unique test programs and loading conditions.

Precise Closed-Loop Torque Control

Torque sensor feedback ensures stable, repeatable, and highly accurate loading performance.

Comprehensive Durability Validation

Supports life testing, aging testing, reliability evaluation, and performance characterization on one integrated platform.

Automated Data Management

All test data are automatically stored, analyzed, and exported for traceability and certification purposes.

FAQ

Q1: How many motors can be tested simultaneously?

A: The system supports simultaneous testing of up to 8 hub motors.

Q2: Can each station operate independently?

A: Yes. Each workstation has independent control, parameter settings, monitoring, and fault protection.

Q3: What is the torque testing range?

A: The torque loading range is ±1 to 200 N·m with an accuracy of ±1% FS.

Q4: What loading method is used?

A: The system uses high-precision magnetic powder brakes controlled through closed-loop torque feedback.

Q5: Can the machine generate motor performance curves?

A: Yes. The software automatically generates motor characteristic curves, endurance records, and professional test reports.

Q6: What types of motors are suitable?

A: The machine is primarily designed for electric bicycle hub motors and can be customized for different wheel motor configurations.
