Product Overview

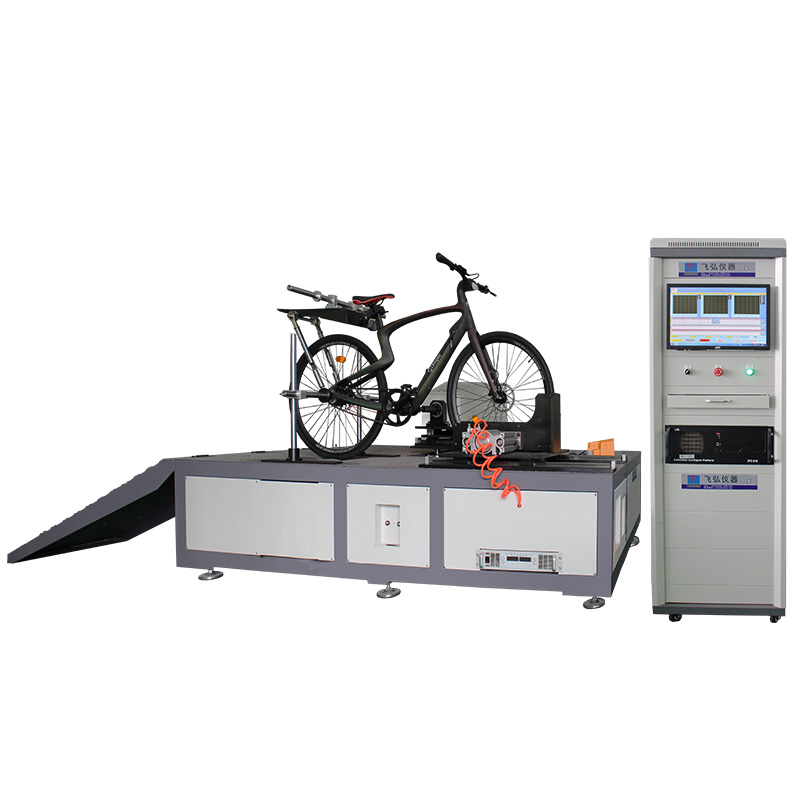

The Electric Bicycle Dynamic Performance and Road Simulation Testing System is a comprehensive laboratory platform designed to evaluate the performance, safety, durability, and energy efficiency of electric bicycles.
The system supports testing of both mid-drive motors and hub motors, with torque capacities up to 200 N·m and motor input power up to 1.8 kW. By simulating real riding conditions through a dual-roller dynamometer, adjustable loading system, and road simulation functions, the equipment provides accurate data for product development, quality assurance, certification testing, and regulatory compliance.
The platform is suitable for manufacturers, testing laboratories, certification bodies, and research institutions involved in electric bicycle performance validation.
Reference Standards
EN 15194
ISO 4210
EN 14764
EN 14766
EN 14781
CPSC
CSA
DIN
JIS
BS
NF
CNS
Main Testing Functions
The system evaluates motor voltage, current, torque, power output, and efficiency under controlled operating conditions.
Applicable to:
Motor performance data can be used to generate torque-speed and power-speed characteristic curves for engineering analysis.
Maximum Speed and Acceleration Testing
The dual-roller system simulates road resistance and allows dynamic speed testing up to 80 km/h.
Engineers can evaluate:
Using magnetic powder braking and adjustable load simulation, the system reproduces uphill riding conditions.
The test evaluates:
The integrated braking evaluation system supports both dry and wet braking tests.
Measured parameters include:
A built-in spray system simulates wet-road conditions for safety verification.
Road Simulation and Durability Testing
Obstacle blocks and roller-based road simulation allow evaluation of:
Suspension durability
Frame fatigue resistance
Vehicle stability
Long-term reliability
The system supports continuous cyclic testing up to 999,999 cycles.
The platform continuously monitors:
Battery voltage
Battery current
Energy consumption
Driving range
Engineers can analyze vehicle efficiency and generate speed-versus-energy consumption curves.
Testing Logic
Real-world electric bicycle performance is influenced by multiple interacting factors:
Motor output torque
Vehicle speed
Rider load
Road conditions
Battery state of charge
Braking performance
Rather than testing individual components in isolation, this system recreates actual riding conditions through controlled laboratory simulation.
By combining motor loading, vehicle resistance, road obstacles, rider weight simulation, and battery monitoring, manufacturers obtain comprehensive performance data that closely reflects real-world operation.
Core Features
Dual-Roller Dynamometer Design
High-Precision Torque Measurement
Intelligent Data Acquisition
NI-based data acquisition architecture
Real-time performance monitoring
Automatic report generation
Exportable testing data
Rider Load Simulation
Safety Protection System
Technical Specifications
Item | Specification |
Applicable Motors | Mid-drive & Hub Motors |
Maximum Torque Capacity | 200 N·m |
Maximum Motor Power | 1.8 kW |
Maximum Vehicle Speed | 80 km/h |
Roller Diameter | 760 mm |
Adjustable Wheelbase | 300–1750 mm |
Torque Sensor Accuracy | ±0.2% |
Torque Response Time | 100 μs |
Battery Voltage Range | DC 0–100 V |
Voltage Accuracy | 0.1% |
Current Accuracy | 0.5% |
Power Supply | DC 0–80 V / 75 A |
Test Cycle Capacity | 0–999,999 cycles |
Frequently Asked Questions (FAQ)
What types of electric bicycles can be tested on this system?
The system is suitable for electric bicycles equipped with hub motors or mid-drive motors. It can accommodate a wide range of vehicle geometries and wheelbase configurations.
How does the road simulation testing function work?
The dual-roller dynamometer reproduces riding resistance while obstacle blocks and adjustable loading systems simulate real road conditions, rider weight, and climbing scenarios. This testing logic provides performance data that closely matches actual riding conditions.
Yes. The platform continuously records battery voltage, current, energy consumption, vehicle speed, and travel distance, allowing engineers to evaluate range performance and energy efficiency.
Why is motor efficiency testing important for e-bike manufacturers?
Motor efficiency directly affects battery consumption, vehicle range, heat generation, and overall riding performance. Measuring efficiency under different load conditions helps optimize motor control strategies and improve product competitiveness.
What is the advantage of combining motor testing and road simulation?
Many conventional test benches evaluate motors independently. This system evaluates the entire vehicle under realistic operating conditions, allowing engineers to understand the interaction between motor output, battery performance, vehicle load, and road resistance.
E-Bike Frame Vertical Fatigue Testing Machine

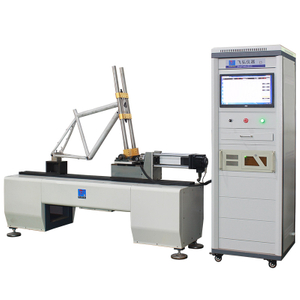

E-Bike Frame Horizontal Fatigue Testing Machine
Bicycle Frame and Fork Impact Testing Machine
Battery Pack Performance Testing System
Wheel Radial Fatigue Testing Machine
Wheel Impact Testing Machine
Brake Durability Testing Machine
Motor Efficiency and Torque Test Bench
Environmental Temperature Chamber
Together, these systems provide a complete electric bicycle testing laboratory solution covering performance, durability, safety, reliability, and regulatory compliance.
