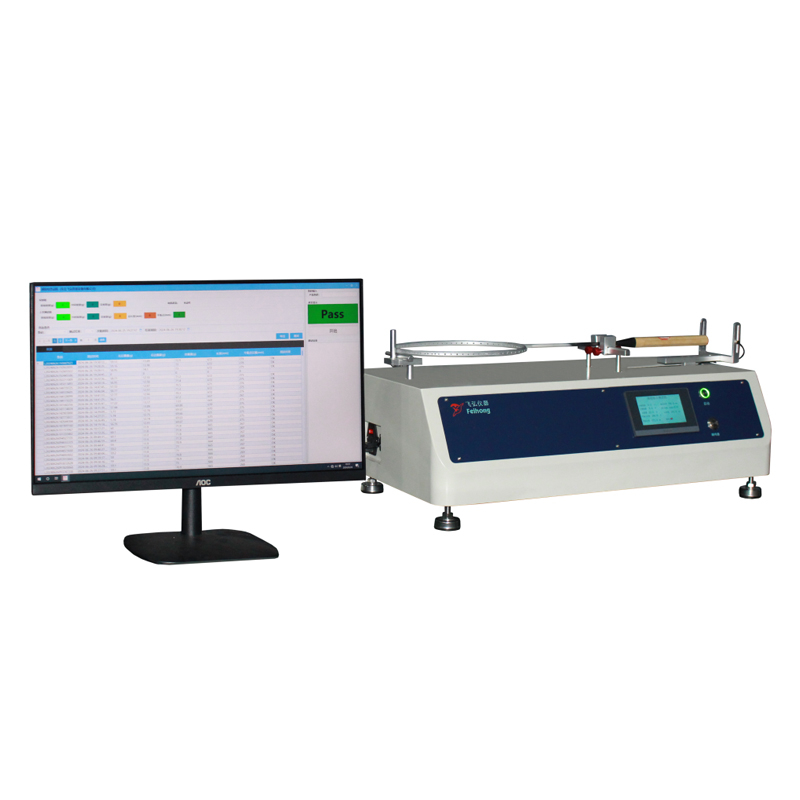

Professional Racket Weight & Balance Tuning Analyzer (Swing Weight Machine)
Maximize racket personalization, quality control, and athletic performance with our industry-leading Racket Weight and Balance Tester. Specifically engineered for premium tennis, badminton, and squash rackets, this high-precision instrument delivers an "All-in-One, One-Click Placement" diagnostic workflow. By instantly tracking total weight, static balance point, length, and dynamic Swing Weight (Inertia), it translates raw physical racket properties into actionable science for elite customization and standardization.
Technical Parameter
Weight measurement accuracy | +/-0.2g |
Length measurement accuracy | +/-0.5mm |
Balance point position accuracy | +/-0.05mm |
Product dimensions | 720*380*330mm |
Weight | About 20kg |
Power supply | AC220V, 5A |
1. Core Functions & Technical Parameters
3-in-1 Instant Measurement: Simply place the racket on the calibrated test frame to simultaneously capture weight, exact length, and center-of-gravity placement without manual re-fixturing.
Weight Profiling: Dedicated measuring matrix calibrated for 200–400g parameters, delivering an exceptional accuracy threshold of $\pm0.1$g / $\pm0.2$g.
Balance Center Identification: Analyzes balance points across a 280–370mm spectrum with an ultra-fine resolution of $\pm0.1$mm ($\pm0.05$mm position precision).
Dynamic Swing Weight Tracking: Evaluates true dynamic inertia profiles during simulated swing arcs with an elite accuracy margin within $\pm0.5\%$ FS.
2. Technical Highlights & Equipment Advantages
Ergonomic "Place & Play" Architecture: Eliminates complex manual clamping or multi-step calibrations, minimizing operator error and securing unmatched repeatability.
Turnkey Data Intelligence: Standard onboard storage easily archives $\ge1,000$ complete test sets (expandable up to 10,000 sets), providing a robust historical database for product matching or batch comparisons.
Compact Laboratory Footprint: Encased in a rugged, workspace-optimized $720 \times 380 \times 330\text{ mm}$ chassis (approx. 20kg, powered via standard AC 220V/5A), ideal for active pro shops and clean质检 labs.
Bespoke Customization: Hardware configurations and specific software parameter boundaries can be tailored on-demand to support unique brand protocols.
3. Target Applications & Industry Value
Racket Manufacturers & R&D: Essential for maintaining strict production line consistency and evaluating structural carbon-composite prototypes against ISO 9001 benchmarks.
Professional Stringing & Customization Labs: Empower certified stringers to perform exact "racket matching" (tuning multiple rackets to identical weight and swing profiles) for professional touring athletes.
Quality Assurance & Compliance Hubs: Delivers definitive data validation verifying compliance with official ITF (International Tennis Federation) and IBF (International Badminton Federation) structural regulations.
Contact our sales engineering division today for customized layout designs, software UI details, and global distribution pricing!
