FH-JXJ01
Feihong
Simulated footsteps. Real load. Continuous hours. The treadmill durability test that never tires.
The FH-JXJ01 uses a mechanical linkage mechanism to simulate human walking on a treadmill at 3–6km/h and 90–175kg adjustable load — running for the programmed time or step count and stopping automatically when done. A programmable AC power supply (1–300V / 45–75Hz / 1–22A, ±0.5% regulation) powers the treadmill under test with monitored, controlled electrical parameters; four independent temperature channels watch motor, belt, and electronics in real time; and voltage, current, and temperature alarms stop the test the moment any parameter exceeds its preset limit. PLC and HMI handle all sequencing automatically.
Quick Specs
Test speed: 3–6km/h
Test load: 90–175kg (adjustable)
Drive: Linkage mechanism simulating human foot stepping
Test power supply (for treadmill): AC 1–300V / 45–75Hz / 1–22A (±0.5% regulation)
Equipment power monitoring: 0–500V AC / 0–30A AC (settable alarms)
Temperature monitoring: 4 independent channels, 0–300°C (settable alarms)
Control: PLC + HMI
Auto-stop: Time reached / step count reached / alarm triggered
Test bench: 2090 × 1280 × 1620mm
Control cabinet: 630 × 550 × 1100mm
Why Treadmill Durability Testing Requires a Mechanical Foot
Overview of the FH-JXJ01 Test Machine
Standards and Regulatory Context
Main Test Functions and Monitoring Channels
Design Features of the FH-JXJ01
Technical Specifications
How the FH-JXJ01 Testing Process Works
Benefits for Treadmill Manufacturers and Testing Labs
Choosing the Right Treadmill Durability Tester
Real-World Application Scenarios
FAQs for the FH-JXJ01
Related Testing Equipment
Get a Quote from Feihong Machine
A treadmill's service life is determined by its weakest link under the actual loading conditions of use — and those conditions involve one mechanical reality that no static or simple cyclic test can replicate: a human foot stepping repeatedly on a moving belt, applying a dynamic contact force at a walking or running cadence across the full width of the belt surface.
The mechanical events of treadmill use are more complex than they appear. Each footstep applies an impact load to the belt and deck; the belt flexes, the deck absorbs the load, and the motor increases torque momentarily to maintain constant belt speed against the increased friction. Over hundreds of hours of use — the lifetime expected of a commercial-grade treadmill — this repeated impact-and-recovery cycle accumulates fatigue in the belt surface material, the running deck lubrication film, the motor drive train, the belt drive roller bearings, and the electronic control system.
Testing any of these components in isolation misses the interaction effects: a belt that is individually adequate may develop premature wear when combined with a specific deck hardness and a specific motor control algorithm — because the combined system under repeated human-foot contact produces a different stress pattern than any component alone. Mechanical foot durability testing — running the complete treadmill under a simulated human walking load for thousands of hours — is the only method that captures these system-level durability characteristics.
The simulation accuracy requirements are demanding: the load must represent real human weight (90–175kg covers the range from average adult to the maximum load rating of most commercial treadmills); the stepping pattern must replicate real walking cadence (3–6km/h walking speed); and the test must run continuously for the programmed duration without requiring human attendance — making automated mechanical simulation with PLC control the only practical approach.

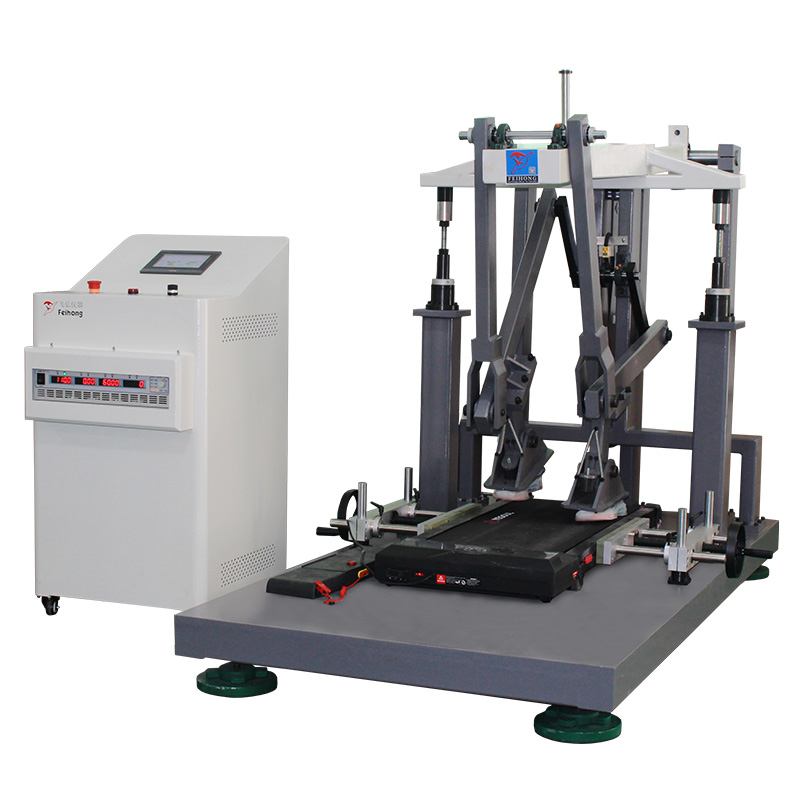

The FH-JXJ01 is a PLC-controlled treadmill durability test bench that uses a linkage mechanism — a mechanical system of arms and joints — to convert rotary motor motion into a reciprocating foot-contact pattern that replicates the timing, force, and spatial pattern of human walking at 3–6km/h. The treadmill under test sits on the bench platform; the mechanical foot assembly contacts the moving belt surface repeatedly at the programmed cadence and load.
The machine provides two separate electrical systems:
Test power supply — a programmable AC power supply (1–300V, 45–75Hz, 1–22A with ±0.5% voltage regulation) powers the treadmill under test. This allows the test to be run at any voltage and frequency relevant to the treadmill's target market (110V/60Hz for North America, 220V/50Hz for Europe and China, or other specifications) and at any load current within the supply range, with the supply parameters under PLC control and monitored continuously.
Equipment power monitoring — the FH-JXJ01's own electrical consumption (0–500V AC / 0–30A AC) is monitored separately, with settable alarm thresholds for both voltage and current.
Four independent temperature measurement channels (0–300°C each, all with settable alarm thresholds) allow simultaneous monitoring of motor surface temperature, belt/deck junction temperature, electronics compartment temperature, and any fourth measurement point of engineering interest.
Auto-stop conditions are set before the test: time limit, step count limit, and any combination of voltage, current, or temperature alarms. The PLC executes the full test sequence and stops — or alarms and stops — automatically.
EN 957 (Part 1: General Safety Requirements; Part 6: Additional specific safety requirements for treadmills) is the primary EU standard for treadmill safety and performance. EN 957-6 specifies:
Structural strength requirements for the running deck, frame, and handrail
Electrical safety requirements for the motor drive and control electronics
Endurance and durability test requirements including belt and deck wear evaluation
Maximum user weight (load) specifications
The FH-JXJ01's load range (90–175kg) covers the EN 957-6 required test load for treadmills up to and including 175kg maximum user weight. The programmable step count and time parameters match the endurance test durations specified in EN 957-6.
ISO 20957 is the international standard series for stationary training equipment, with Part 1 covering general requirements and Part 4 covering treadmills. ISO 20957-4 specifies durability and endurance test requirements for treadmill belts, decks, and drive systems — including mechanical foot simulation tests at defined load and speed.
ASTM F1749 covers treadmill performance and safety requirements for the North American market, including durability and endurance tests. The FH-JXJ01's programmable power supply (1–300V / 45–75Hz) accommodates both 60Hz North American and 50Hz international treadmill operation.
Treadmills sold in the EU require CE marking under the Machinery Directive (2006/42/EC) and EN 957 compliance. Endurance testing per EN 957-6 is part of the technical file required for CE marking — the FH-JXJ01's automated test execution and data logging directly support the test evidence documentation needed for the technical file.
Standard | Market | Treadmill Durability Clause |
|---|---|---|
EN 957-6 | EU | Structural endurance, belt/deck wear |
ISO 20957-4 | International | Treadmill durability requirements |
ASTM F1749 | USA / North America | Treadmill performance and safety |
GB standards | China | Domestic treadmill safety requirements |
The linkage mechanism produces the reciprocating foot-contact pattern at walking speed — 3km/h to 6km/h, covering the range from slow rehabilitation walking to moderate fitness walking. Load is set between 90kg (minimum adult test load) and 175kg (commercial treadmill maximum user weight rating). The simulation runs continuously for the programmed duration or step count, with no operator intervention needed after startup.
The treadmill under test is powered by the FH-JXJ01's programmable supply — not from a wall socket — giving complete control and monitoring of the electrical parameters:
Voltage: 1–300V AC, adjustable — covers 110V (US), 220V (EU/China), 230V (UK), and other market specifications Frequency: 45–75Hz — covers 50Hz and 60Hz markets with margin Current: 1–22A — covers light domestic treadmills (5–8A) through commercial grade (15–22A) Regulation accuracy: ±0.5% — the supply voltage is stable to within 0.5% of the setpoint throughout the test run, ensuring treadmill motor and control electronics are evaluated at a consistent, specified electrical environment
Real-time monitoring of actual voltage and current delivered to the treadmill is displayed on the HMI and logged. Alarm thresholds can be set for both — automatically stopping the test if the treadmill's electrical draw exceeds the preset current limit (indicating motor overload, control failure, or winding insulation degradation) or if the supply voltage deviates from specification.
Separate from the treadmill's supply, the FH-JXJ01's own electrical consumption is monitored on two channels:
AC Voltage: 0–500V, settable alarm
AC Current: 0–30A, settable alarm
This allows the test machine's own power draw to be verified within normal operating range, and flags machine faults that manifest as electrical anomalies before they can affect the test specimen.
Four independent thermocouples or temperature sensors can be placed at any four measurement points on or around the treadmill under test:
Motor surface — monitors motor winding temperature rise under continuous load; alarm triggers if motor exceeds safe operating temperature
Belt/deck running surface — monitors friction-generated heat in the belt-deck interface; excessive temperature indicates lubrication failure or excessive belt tension
Electronics compartment — monitors control board and drive electronics thermal environment; overtemperature indicates cooling failure
User-defined fourth channel — any additional point of engineering interest (roller bearing housing, power supply module, etc.)
All four channels log temperature continuously and stop the test automatically if any channel exceeds its independently set alarm threshold.
The linkage mechanism that drives the mechanical foot is the core engineering element of the FH-JXJ01. Unlike a simple up-down piston, a linkage mechanism converts rotary input into a compound trajectory — the foot contact point follows a path that includes both vertical (impact) and horizontal (push-off) components, replicating the heel-strike-to-toe-off motion pattern of human walking. This kinematic accuracy is what makes the stress distribution on the belt, deck, and drive system representative of real use rather than an approximation.
The mechanism is designed for the 3–6km/h walking speed range, where the cadence and force profile of the simulated step cycle match the actual walking patterns that produce the highest cumulative fatigue loads on commercial treadmill components — a range where real users spend the majority of their total treadmill time.
The load applied through the mechanical foot is adjustable from 90kg to 175kg, covering:
90kg: Average adult body weight — baseline durability test load for domestic treadmills
120–140kg: Typical maximum user weight for mid-range commercial treadmills
175kg: Maximum user weight for heavy-duty commercial grade equipment
The ≥90kg minimum specification ensures that the lightest test load still represents a meaningful physical simulation — not a low-force test that understates the real mechanical stress on belt and deck components.
Two independent auto-stop mechanisms run simultaneously:
Time-based: Test runs until cumulative elapsed time reaches the programmed limit — useful for standards that specify test duration in hours
Step count-based: Test runs until cumulative foot contacts reach the programmed count — useful for standards that specify a minimum number of steps
Either condition reaching its limit stops the machine automatically. Both counts accumulate from zero at start and are displayed in real time on the HMI throughout the test.
The ±0.5% voltage regulation of the power supply is the specification that determines whether the treadmill's electrical performance during the durability test is representative of its performance at rated supply voltage. A supply that varies by ±5–10% would cause the motor speed to fluctuate — changing the belt speed during the test and making the mechanical foot's speed-to-belt-speed ratio inconsistent. At ±0.5%, the supply is stable enough that belt speed variation from electrical supply variation is negligible relative to the mechanical system tolerances.
The PLC manages all sequencing: starting and stopping the mechanical foot drive, monitoring all sensor channels continuously, comparing readings to alarm thresholds, and executing auto-stop on any alarm condition. The HMI displays real-time values of all monitored parameters — step count, elapsed time, treadmill voltage, treadmill current, machine voltage, machine current, and all four temperatures — in a single view, with alarm indicators for any parameter approaching its limit.
Specification | Details |
|---|---|
Test speed | 3–6km/h |
Test load | 90–175kg (adjustable) |
Simulation mechanism | Linkage mechanism (human foot walking pattern) |
Test time control | Manually settable, auto-accumulates, auto-stop on completion |
Step count control | Manually settable, auto-accumulates, auto-stop on completion |
Specification | Details |
|---|---|
Voltage range | 1–300V AC (adjustable) |
Frequency range | 45–75Hz (adjustable) |
Current range | 1–22A (adjustable) |
Voltage regulation accuracy | ±0.5% |
Function | Powers treadmill under test with controlled, monitored parameters |
Specification | Details |
|---|---|
Voltage monitoring range | 0–500V AC |
Current monitoring range | 0–30A AC |
Alarm | Settable threshold on both channels |
Specification | Details |
|---|---|
Channels | 4 independent |
Range | 0–300°C per channel |
Alarm | Independently settable threshold on each channel |
Specification | Details |
|---|---|
Test bench (L×W×H) | 2090 × 1280 × 1620mm |
Control cabinet (L×W×H) | 630 × 550 × 1100mm |
Control system | PLC + HMI |
3–6km/h test speed range is the walking speed range that produces the highest cumulative belt and deck wear in real treadmill use — most users walk at 4–5km/h for the majority of their time on a treadmill. Testing at these speeds with an accurate mechanical foot simulation gives the most representative durability data for the actual use conditions the product will encounter.
90–175kg load range covers the full spectrum from domestic (max 120kg) through commercial light-duty (max 150kg) to commercial heavy-duty (max 175kg) treadmill categories, allowing a single machine to test the full commercial product portfolio.
±0.5% voltage regulation ensures that any electrical degradation observed in the treadmill during the test — rising current draw, voltage drop across motor windings, temperature rise — reflects actual component deterioration rather than supply voltage variation.
Four independent temperature alarms allow the test to stop immediately when any component reaches its thermal limit — whether motor winding, deck surface, or electronics — rather than requiring the operator to monitor temperatures manually during a multi-hour unattended run.
Dual time + step count auto-stop accommodates both time-based (EN 957-6 specifies hours) and count-based (ISO 20957 may specify step counts) test requirements on the same machine without configuration changes between standard requirements.
The treadmill under test is positioned on the FH-JXJ01 test bench platform. The mechanical foot assembly is positioned above the belt surface at the correct lateral position for centered footstep simulation. The treadmill's power input cable is connected to the FH-JXJ01's programmable AC output.
The four temperature sensors are placed at the monitoring locations: motor surface, belt/deck running surface, electronics compartment, and any fourth point of engineering interest. The sensors are secured and their wiring routed to the control cabinet.
On the HMI, the operator enters:
Test speed (3–6km/h)
Test load (90–175kg)
Supply voltage, frequency, and current for the treadmill (matching its rated specification)
Alarm thresholds for treadmill voltage, treadmill current, machine voltage, machine current, and all four temperature channels
Test time limit (hours) and/or step count limit
Any other test-specific parameters
The PLC starts the treadmill (via the programmable supply) and begins the mechanical foot stepping cycle simultaneously. The linkage mechanism cycles at the speed corresponding to the set walking cadence; the foot contacts the belt with the programmed load force. The HMI displays all monitored parameters in real time. The PLC monitors all alarm thresholds continuously.
The test stops automatically when:
Elapsed time reaches the programmed time limit, OR
Step count reaches the programmed count limit, OR
Any monitored parameter (treadmill voltage, treadmill current, machine voltage, machine current, any temperature) exceeds its preset alarm threshold
The stop condition and the parameter values at the moment of stop are logged.
After the programmed test duration or count, the treadmill is inspected for:
Belt surface wear and elongation
Running deck wear and lubrication status
Drive roller and bearing condition
Motor winding resistance and insulation (before/after comparison)
Electrical parameter drift (current draw, power factor, motor speed stability)
Any visible structural fatigue in frame or deck support
The FH-JXJ01 tests the treadmill as a complete system under realistic use conditions — belt, deck, motor, drive electronics, and frame all loaded simultaneously by the mechanical foot at the cadence and weight of real walking. Component-level tests (belt tension measurement, motor run-in, electronics burn-in) cannot capture the interaction effects between components that determine system-level durability life.
Auto-Stop Condition | What It Prevents |
|---|---|
Current alarm (treadmill) | Motor overload from winding degradation runs to failure rather than stopping at first symptom |
Temperature alarm (motor) | Thermal runaway from cooling failure is caught before permanent damage |
Temperature alarm (belt/deck) | Lubrication failure is caught before belt-deck fusion or belt damage |
Time/count limit | Test does not run beyond the standard-specified duration |
One machine tests 110V/60Hz North American models, 220V/50Hz European models, and 230V/50Hz UK/Australian models — without external transformer or rewiring. For manufacturers supplying multiple regional markets, this eliminates the need for separate test benches or voltage adaptation hardware.
A standard EN 957-6 treadmill endurance test may run for 500–1,000+ hours. With PLC automation, auto-stop on any alarm condition, and data logging throughout, the FH-JXJ01 runs these tests without operator attendance — freeing lab personnel for other work while the test accumulates.
Some lower-cost treadmill durability setups apply a static weight to the belt and run the motor — testing belt elongation and motor endurance under a non-moving load. This misses the dynamic impact loading of real footsteps, which is what produces belt wear, deck marking, and drive train fatigue in real use. Confirm the test machine uses a dynamic linkage mechanism that produces realistic foot contact force profiles, not a static deadweight.
Confirm the load range covers your maximum product user weight specification. If you manufacture commercial treadmills rated to 175kg, a machine with a 120kg maximum load tests below your product's rated condition — an under-test that will not reveal failures that would occur at rated load.
For manufacturers supplying multiple regional markets, confirm the programmable supply range covers all target market voltages (110V through 230V) and both 50Hz and 60Hz without external adapters.
Four independent temperature channels allow comprehensive thermal monitoring of the test specimen. Machines with fewer channels require the operator to choose which locations to monitor — potentially missing a failure in an unmonitored location.
A treadmill manufacturer preparing EN 957-6 CE marking documentation ran FH-JXJ01 endurance tests on a new mid-range home treadmill model at 120kg load and 5km/h for the EN 957-6 specified duration. At approximately 70% of the required test time, the motor current alarm triggered — indicating increasing current draw from bearing friction as the front roller bearing lubricant degraded. The bearing specification was upgraded before the CE marking submission; the subsequent test ran to full duration without alarm.
A commercial gym equipment supplier sourcing treadmills from a new OEM ran acceptance qualification tests on the initial production batch using the FH-JXJ01 — testing 3 units at 150kg / 5km/h for 200 hours each. One unit showed elevated belt/deck temperature from hour 40 onward (lubrication applied volume below specification by the OEM); the other two units completed the test within all alarm thresholds. The lubrication specification was added to the purchase order as a verified QC requirement.
A testing laboratory running ISO 20957-4 certification tests for multiple treadmill brands used the FH-JXJ01's programmable supply to run North American (110V/60Hz) and European (220V/50Hz) specification treadmills on the same bench in successive tests, switching supply parameters between tests without any hardware changes.
A linkage mechanism converts rotary motor drive into a reciprocating motion that moves the foot contact point in a pattern approximating the heel-strike-to-push-off trajectory of human walking. Unlike a simple vertical piston, the linkage produces a compound path with both vertical (impact) and horizontal (push-off) components — giving a stress distribution on the belt and deck closer to real footstep loading than a purely vertical mechanism.
The programmable supply gives complete control and monitoring of the electrical environment the treadmill experiences during the test. Wall supply voltage varies with building load; the FH-JXJ01's ±0.5% regulated supply maintains a defined, constant voltage throughout the test — ensuring any changes in the treadmill's electrical draw reflect actual component changes, not supply variation. It also allows testing at any target market voltage without external transformers.
The temperature of any of the four monitored channels exceeding its independently preset alarm threshold. Typical applications: motor surface temperature exceeding the winding insulation class rating; belt/deck surface temperature indicating lubrication failure; electronics compartment temperature exceeding component ratings.
Yes. The PLC monitors all channels continuously and stops the machine automatically on any alarm condition or when the programmed time/count limit is reached. All monitored parameter values at the stop point are logged for review when the operator returns.
Time auto-stop halts the test when elapsed running time reaches the set limit — used for standards specifying test duration in hours. Step count auto-stop halts when the cumulative number of foot contacts reaches the set limit — used for standards specifying a minimum footstep count. Both can be set simultaneously; whichever is reached first stops the test.
The FH-JXJ01 monitors electrical parameters (voltage, current) and temperatures of the treadmill during the test. Belt speed monitoring of the treadmill under test would require an additional sensor on the treadmill belt — this can be configured based on specific test requirements.
The mechanical foot applies 90–175kg adjustable load to the treadmill belt surface through the linkage mechanism contact point. Load is set before the test begins and maintained throughout the test cycle by the mechanical configuration.
