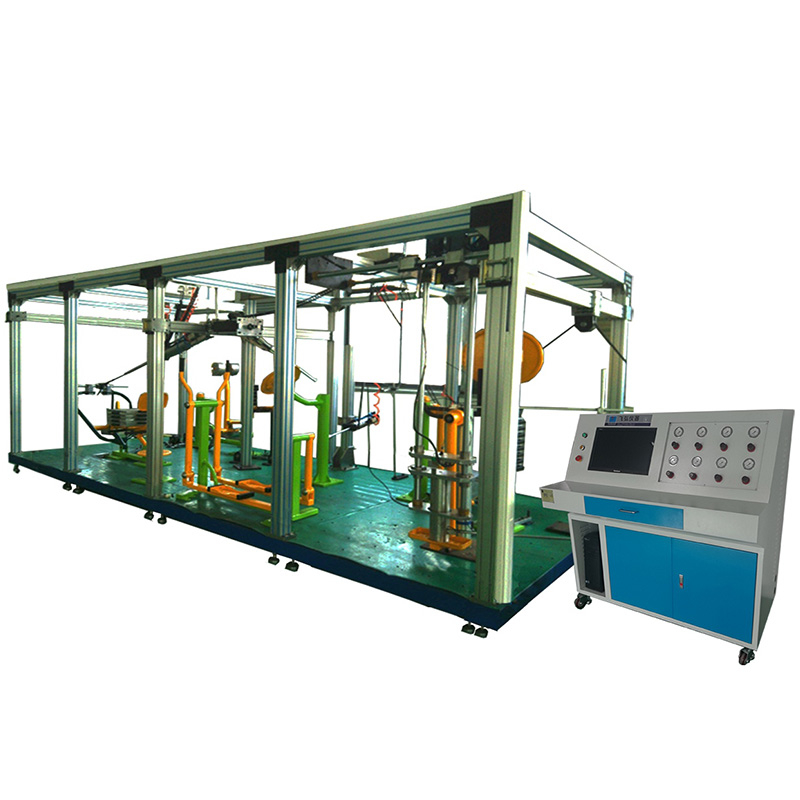

Outdoor Fitness Equipment Comprehensive Testing Machine Product Overview

The Outdoor Fitness Equipment Comprehensive Testing Machine is designed for fatigue, endurance, durability, and reliability testing of a wide range of public outdoor fitness equipment. Developed in accordance with GB 19272, GB 17498, and related testing standards, the system simulates long-term repetitive usage conditions to evaluate structural integrity, operational reliability, and service life.

The machine supports testing of multiple categories of outdoor exercise equipment commonly installed in parks, schools, residential communities, public fitness areas, and recreational facilities. Through programmable motion control and automated force loading, the system accurately reproduces real-world user movements while collecting critical performance data throughout the test process.

Equipped with PLC control, LabVIEW-based software, industrial computer integration, and multi-channel closed-loop control technology, the system provides fully automated testing, real-time monitoring, data acquisition, curve analysis, and intelligent fault diagnosis.

Applicable Equipment

The testing system is suitable for evaluating:

• Air Walkers

• Pendulum Swings

• Leg Press Trainers

• Outdoor Exercise Bikes

• Waist Twisters

• Arm Wrestling Trainers

• Tai Chi Push Wheels

• Big Wheel Rotators

• Cross Trainers

• Seesaws

• Rowing Machines

• Stretch Trainers

• Seated Pull Trainers

• Seated Push Trainers

• Elliptical Trainers

• Other Outdoor Fitness Stations

The modular fixture design enables adaptation to various outdoor fitness equipment structures and movement patterns.

Key Features

Comprehensive Fatigue Testing

Simulates repetitive user operations to evaluate:

• Structural durability

• Mechanical reliability

• Wear resistance

• Service life

• Joint and bearing performance

Multi-Motion Testing Capability

Supports testing of:

• Swinging equipment

• Oscillating equipment

• Rotating equipment

• Reciprocating equipment

• Pedaling equipment

• Push-pull exercise equipment

Standards-Based Testing

Designed with reference to:

• GB 19272 Outdoor Fitness Equipment Standard

• GB 17498 Sports Equipment Safety Standards

• Related durability and reliability testing requirements

Suitable for product development, certification preparation, and quality assurance programs.

Automated PLC & LabVIEW Control System

The system integrates:

• PLC lower-level control

• LabVIEW upper-level control software

• Industrial computer monitoring platform

Providing stable, accurate, and fully automated testing management.

Real-Time Data Monitoring

Displays and records:

• Push-pull force values

• Swing cycles

• Rotation cycles

• Test duration

• Remaining test time

• Cumulative cycle count

• Real-time force curves

All testing data can be viewed and analyzed through the software platform.

Multi-Channel Closed-Loop Control

Dedicated software enables:

• Automatic test execution

• Closed-loop force control

• Automatic measurement

• Real-time curve generation

• Data storage and reporting

Automatic Stop & Alarm Protection

The system automatically stops and triggers alarms when:

• Preset cycle count is reached

• Excessive deformation is detected

• Test specimen failure occurs

• Abnormal operating conditions arise

Power Failure Recovery

In case of unexpected power interruption:

• Test parameters are automatically saved

• Data remains protected

• Equipment restarts automatically after power restoration

• Testing resumes according to pre-interruption settings

This feature minimizes testing downtime and prevents data loss during long-duration endurance tests.

Intelligent Fault Diagnosis

Built-in self-diagnostic system automatically detects equipment abnormalities and displays fault codes for fast troubleshooting and maintenance.

Technical Specifications

System Advantages

• Supports multiple categories of outdoor fitness equipment

• Complies with national fitness equipment testing requirements

• Fully automated fatigue and endurance testing

• Multi-channel closed-loop control architecture

• Real-time force and motion monitoring

• Intelligent fault diagnosis and protection

• Automatic power-loss recovery

• Flexible fixture system for different equipment designs

• Ideal for product certification, R&D, and quality assurance

Typical Applications

The system is widely used by:

• Outdoor Fitness Equipment Manufacturers

• Public Fitness Equipment Suppliers

• Municipal Sports Equipment Projects

• Certification Laboratories

• Quality Inspection Organizations

• Product Development Centers

• Universities and Research Institutes

• Third-Party Testing Facilities

FAQ

Q1: What types of outdoor fitness equipment can be tested?

The machine can test air walkers, waist twisters, elliptical trainers, rowing machines, outdoor exercise bikes, Tai Chi wheels, leg press trainers, seesaws, stretch trainers, and many other outdoor fitness stations.

Q2: Which testing standards does the system follow?

The equipment is designed according to GB 19272, GB 17498, and related outdoor fitness equipment testing standards.

Q3: What is the purpose of fatigue testing for outdoor fitness equipment?

Fatigue testing evaluates long-term durability, structural integrity, wear resistance, and operational reliability under repeated usage conditions.

Q4: Can the machine perform different motion types?

Yes. The system supports swinging, rotating, reciprocating, oscillating, pedaling, and push-pull motion testing through configurable fixtures and control programs.

Q5: How are test results monitored?

The software continuously displays force values, cycle counts, operating time, remaining test duration, motion curves, and other key parameters in real time.

Q6: What happens when the preset test cycles are completed?

The machine automatically stops operation and generates an alarm notification indicating test completion.

Q7: Can the system recover after a power outage?

Yes. The machine automatically saves all testing parameters and resumes operation after power is restored, ensuring uninterrupted long-term testing.

Q8: Does the system support remote monitoring and communication?

Yes. The equipment includes RS-232 and RS-485 communication interfaces, allowing integration with computer-based monitoring and control systems.

Q9: Is the machine suitable for certification testing?

Yes. The system is commonly used for product development, quality assurance, compliance verification, and certification preparation.

Q10: What are the main benefits of using this testing machine?

The machine helps manufacturers verify durability, improve product reliability, reduce maintenance risks, support compliance testing, and ensure the long-term safety of outdoor fitness equipment installed in public environments.
