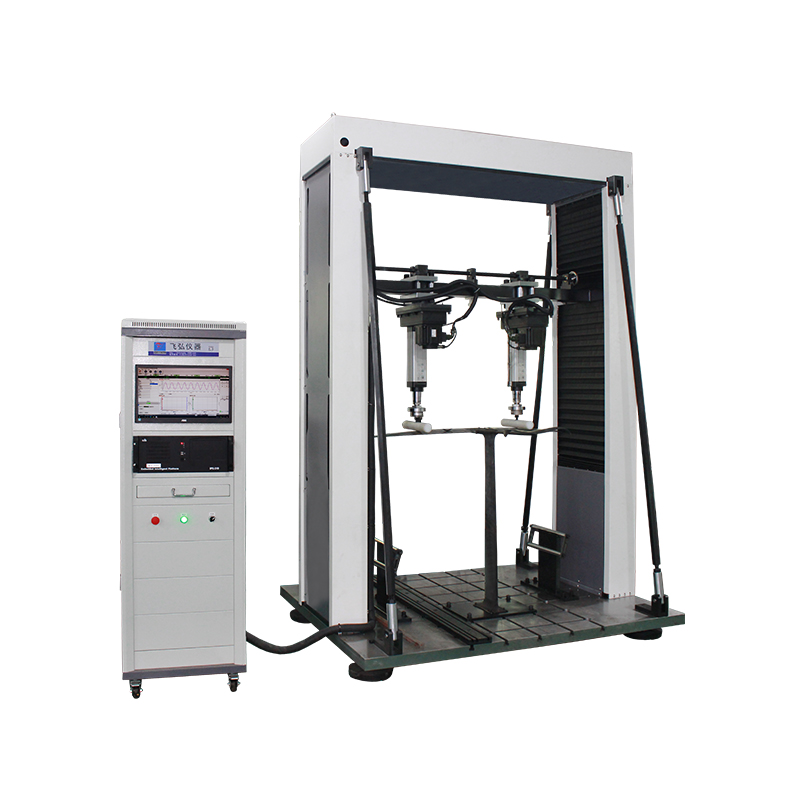

Hydrofoil Dynamic Fatigue Tester

Sturdy Gantry Design

• T-slotted base for quick specimen mounting.

• Motorized crossbeam lift – vertical test space up to 1500mm.

• Rigid frame minimizes vibration for accurate results.

Dual Servo Actuators (2 x 500kg)

• 3 modes: Synchronous, Asynchronous, or Single-actuator operation.

• Actuator spacing adjustable (scale included) – max ≥1200mm.

• Vertical testing only – no angle adjustment needed.

Key Specs

• Max load: 3000N

• Frequency: 1–5Hz (adjustable)

• Stroke: 0–80mm (adapts to 5–120mm deformation)

• Power: 220V / 2.5kW – standard mains

• Temp: < 65°C operating environment

Smart Control & Safety

• Two test modes: Constant Force or Constant Displacement.

• Pre-set parameters, output preferences, and stroke limits.

• Built-in over-travel & overload protection.

Real-Time Data & Reports

• Live force-displacement curves.

• Records each cycle's force & displacement.

• Automatically calculates Max / Min / Average values.

• Export results to Word or Excel – ready for editing.

Separate Electrical Cabinet

• Compact size: 600×630×1850mm.

• Isolated from mainframe to reduce interference and improve stability.

Get a quote or customize your configuration – contact us today!
