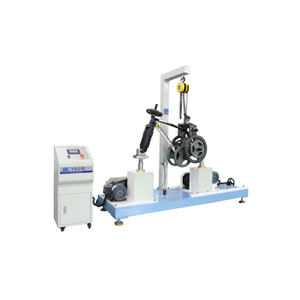

Bicycle Handlebar Fatigue Testing Machine
According to standards: EN14764:2005, ISO4210-2014, GB3565-2005
This testing machine is designed for the handlebar fatigue resistance test, using dual electric cylinders for force application. After the bicycle handlebar is fixed on the fixture of this testing machine, a certain frequency, load, and test times of fatigue force are applied to it. After the test is completed, check the damage situation of the tested sample.
Technical parameters:
Capacity (kgf) | 500kgf * 2 set |
Experimental accuracy | 5‰ |
Electric cylinder stroke | 150mm |
Power source | Electric cylinder servo control system |
Software | Feihong control system |
Frequency range | 1-5HZ |
Machine dimensions | Testing bench:1290*1700*1930mm Host computer: 600*600*1830mm |
Cabinet Size | 60*61*181cm |
Weight | About 420KG |
Power supply | AC220V,15A |
Power waveform | Sine wave |
