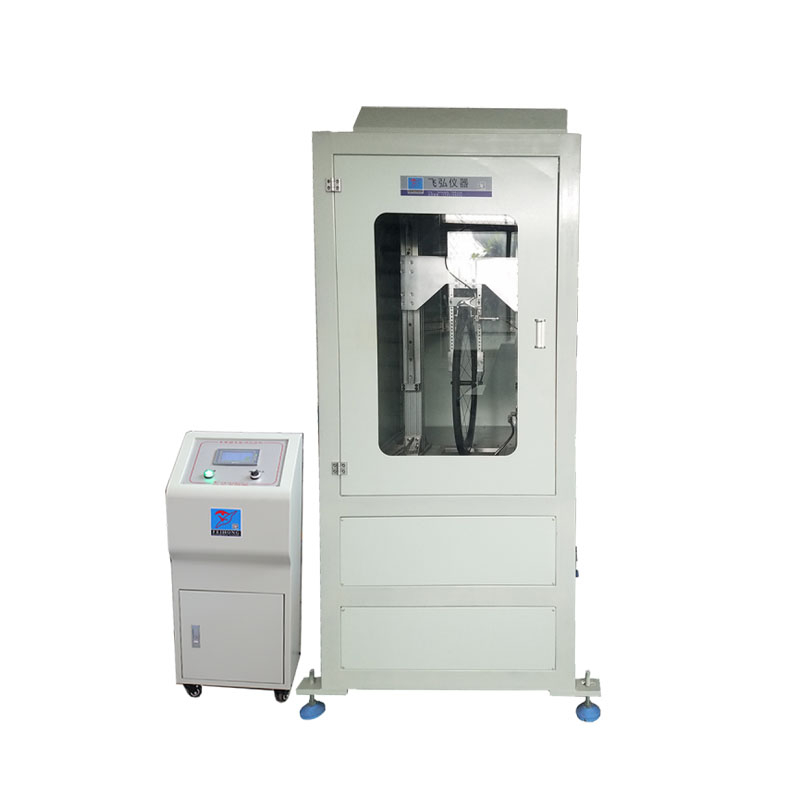

The Feihong machine Bicycle Wheel Rim Fatigue Testing Machine is your essential solution for advanced quality control. Engineered for manufacturers and testing labs, this system helps you verify that every wheel rim meets the most stringent safety, durability, and performance standards. It stands as a pivotal bicycle wheel rim quality control testing equipment, rigorously evaluating endurance and structural integrity.
Comprehensive Performance Analysis: Rigorously evaluate the endurance, structural integrity, and fatigue life of your bicycle wheel rims under realistic, simulated conditions to guarantee product reliability. This bike rim performance test machine ensures your products meet real-world demands.
Unified & Cost-Effective System: Streamline your QA process by consolidating multiple critical assessments into one versatile machine. This reduces your equipment costs and simplifies your testing workflow, bridging the gap between manufacturing and real-world usage.
Actionable Data for R&D: Identify potential material weaknesses and design flaws early. Our machine simulates impacts, long-distance stress, and sustained loads to provide you with crucial data for product improvement and consistent quality.
Versatile Application & Compliance: Confidently test a wide range of rim types, including those for road, mountain, and e-bikes. Ensure your products meet key international standards like ISO and ASTM across diverse product lines.
Engineered for precision and durability, the Feihong FH-551D Bicycle Wheel Rim Fatigue Testing Machine provides the robust data your quality assurance and R&D teams need. The key performance parameters are outlined below to help you validate its capabilities against your testing protocols.
| Parameter | Specification |
|---|---|
| Model | FH-551D |
| Load Capacity | 0–2000N (Direct Pressure) |
| Speed Range | 0.05–35,000 m/h |
| Travel Control Range | 0.05–99.9 km |
| Mileage Precision | Absolute Error ≤±0.5m |
| Power Requirements | 380V±10%, 50Hz, 5.5KW |
| Obstacle Angle | Fixed 45-degrees |
| Tray Lifting Range | 50–200 mm |
To ensure comprehensive testing, the machine incorporates several key operational features:
Versatile Operation: Supports both forward and reverse rotation to simulate diverse real-world riding conditions.
Certified Performance: The Feihong FH-551D is CE and ISO 9001 certified, guaranteeing reliability and adherence to global standards, ensuring it is a trusted bicycle wheel rim quality control testing equipment.
The Feihong machine Bicycle Wheel Rim Fatigue Testing Machine is engineered to deliver comprehensive, accurate, and repeatable results, empowering your quality assurance and R&D teams.
Integrated 4-in-1 Testing Solution: Streamline your workflow with a single, efficient unit. This bike rim performance test machine combines critical tests for:
Bike Wheel Rim Mileage Test: Adjustable mileage (0.05-99.9km) and speed (0.05-35000m/h) to simulate extended riding and reveal wear over time.
Bicycle Wheel Rim Obstacle Test: A fixed 45-degree obstacle angle replicates impacts with road debris, assessing the rim’s ability to absorb sudden force.
Cyclic Fatigue Test: Applies repeated stress to measure the rim’s resistance to long-term wear and determine its lifespan.
Load Capacity Test: Delivers direct pressure (0-2000N) to evaluate rim performance under heavy loads without structural failure.
Uncompromising Precision and Accuracy: Validate your rim designs with data you can trust. Achieve exceptional mileage precision with an error rate of ≤±0.5m. The system supports both forward and reverse rotation, enabling you to simulate diverse, real-world riding conditions.
Versatile Design for All Rim Sizes: Maximize your testing capabilities. An adjustable tray lifting range of 50-200mm allows you to easily accommodate and test a full spectrum of wheel rims, from children's bicycles to full-sized adult models.
Robust, Industrial-Grade Construction: Rely on a machine built for continuous operation. Its durable, high-strength framework is designed for demanding industrial environments, ensuring maximum uptime and long-term reliability for your testing lab, compatible with standard industrial electrical systems (380V±10%, 50HZ, 5.5KW).
The Feihong machine Bicycle Wheel Rim Fatigue Testing Machine operates by precisely replicating the dynamic forces and environmental stresses a wheel rim endures during its service life. This allows your R&D and QA teams to gather actionable data on structural integrity and long-term durability.
Dynamic Driving Simulation: A large, motor-driven roller functions as a simulated road, powering the rotation of your test wheel rim. This core mechanism, which drives the wheel rim structure, enables dynamic "walking" tests, mileage accumulation (for bike wheel rim mileage test), and brake performance analysis. It supports both forward and reverse rotation to mimic varied riding conditions and the absolute error of the tested mileage is ≤±0.5m.
Realistic Load Application: To evaluate performance under stress, the machine uses a weight superposition system. This method applies direct, controlled pressure (ranging from 0—2000N) onto the wheel rim, accurately simulating rider weight and cargo for fatigue and static load tests, creating a realistic test environment.
Integrated Stress Testing: This bike rim performance test machine combines key functions to provide a complete performance profile. It simulates impacts by running the rim against a fixed 45-degree obstacle (for bicycle wheel rim obstacle test) and applies cyclic stress to measure its resistance to long-term wear, deflection, and potential failure points. The adjustable tray lifting range of 50-200mm further enhances its versatility.
The Feihong machine Bicycle Wheel Rim Fatigue Testing Machine consolidates four critical tests into one powerful unit, providing the comprehensive data your quality assurance and R&D teams need to validate rim durability, safety, and performance against international standards like ISO and ASTM.
Endurance and Fatigue AnalysisSimulate the entire lifespan of a wheel rim with customizable long-distance endurance tests, supporting bike wheel rim mileage test. Set travel ranges from 0.05 to 99.9 km and variable speeds up to 35,000 m/h to analyze how rims withstand long-term cyclic stress and material degradation over time. This function reveals how rims withstand wear over time, highlighting areas prone to degradation.
Impact and Obstacle SimulationReplicate real-world road hazards using a fixed 45-degree obstacle angle for bicycle wheel rim obstacle test. This function rigorously assesses the rim’s ability to absorb sudden impacts from curbs or debris without cracking or deforming, a critical factor for ensuring rider safety and product integrity. This assessment gauges the rim’s ability to absorb sudden force without cracking or warping.
Structural Load TestingVerify rim strength under heavy weight with a direct pressure load capacity of 0—2000N. This powerful test simulates the combined weight of the rider and cargo, confirming the rim’s structural integrity and preventing catastrophic failures under realistic usage conditions. This evaluates how rims perform under heavy loads (e.g., rider weight plus cargo) without structural failure.
Cyclic Stress Fatigue TestingApply repeated cyclic stress to mimic prolonged use and measure the rim's resistance to long-term wear. This critical bike rim performance test machine capability determines the rim's expected lifespan and helps identify points of failure under continuous stress.
The Feihong machine Bicycle Wheel Rim Fatigue Testing Machine is engineered to be a versatile asset for ensuring product integrity across the global bicycle industry. It empowers various teams to validate safety, durability, and performance.
Manufacturing & Quality Control: Integrate our bicycle wheel rim quality control testing equipment into your QA workflow to validate every production batch. Ensure your wheel rims consistently meet internal durability benchmarks and crucial international safety standards like ISO 4210.
Research & Development: Accelerate your innovation cycle. Rigorously test prototype rims by simulating real-world conditions, helping you optimize material selection and perfect designs for lightweight yet robust performance.
Third-Party Certification & Compliance: Use this tester to independently verify that wheel rims for road bikes, mountain bikes, and e-bikes meet strict safety and endurance regulations, providing credible certification for manufacturers.
Retailer Validation & Market Assurance: Validate supplier rims before stocking, reducing post-purchase returns and enhancing customer trust in product reliability. This also supports regulatory agencies in enforcing safety standards.
Comprehensive Performance Simulation: Realistically test rim fatigue and structural integrity under various scenarios, including sustained weight-bearing and obstacle impacts, to identify design flaws before products reach the market. The machine supports rims for all common bicycle types, including road bikes, mountain bikes, hybrid bikes, and electric bicycles, with an adjustable tray height (50~200mm) ensuring compatibility.
The Feihong machine Bicycle Wheel Rim Fatigue Testing Machine is engineered to be the cornerstone of your quality assurance program. It delivers the high-fidelity data required to validate rim durability, performance, and safety, ensuring every product meets stringent international standards like ISO 4210.
With a focus on accuracy and robust construction, you can eliminate guesswork and make data-driven decisions with confidence. Our machine guarantees repeatable outcomes, essential for R&D, production-line testing, and certification. This makes it an indispensable bicycle wheel rim quality control testing equipment.
| Parameter | Specification |
|---|---|
| Mileage Accuracy | ≤±0.5m Absolute Error |
| Load Application | 0—2000N Direct Pressure |
| Travel Control Range | 0.05—99.9km |
| Measurement Time Accuracy | 0.1 second absolute error |
| Feature | Description |
|---|---|
| Standards Compliance | Designed to meet ISO, ASTM, EN 14764, and GB testing protocols for global recognition |
| Data Integrity | Integrated logging with digital data export (CSV) for trend analysis and record-keeping |
| Industrial Durability | High-strength, low-maintenance build for continuous operation, minimizing downtime and ensuring long-term reliability |
| Flexible Operation | Supports both forward and reverse rotation to simulate varied riding patterns for comprehensive analysis |
| Adaptable Design | Tray lifting range of 50-200mm accommodates a wide range of rim sizes, enhancing versatility |
When you choose the Bicycle Wheel Rim Fatigue Testing Machine, you're not just getting a product; you're gaining a partner dedicated to your quality assurance success. Feihong machine is your specialist in precision testing equipment.
Dedicated Expertise: Since our founding in 2014, we have specialized in developing high-precision testing equipment for the bicycle industry. We understand the unique challenges you face in ensuring wheel rim durability and safety.
Certified Quality You Can Trust: Your compliance is our priority. Feihong machine is an ISO9001 certified manufacturer, and our products, including this fatigue tester, meet stringent CE certification standards for global market access. We are a certified high-tech enterprise.
Innovative and Reliable Manufacturing: We leverage advanced technology within our 10,000-square-meter facility, located in Dongguan City, Guangdong Province, to build robust and accurate testing solutions that empower your R&D and QA teams.
Focused on Your Industry: While we serve multiple sectors, our deep experience in bicycle, electronic atomizer, scooter, and racket testing equipment ensures we provide solutions that are perfectly tailored to your specific product development and quality control needs, offering customized support (OEM, ODM, OBM, Software Reengineering).
Ensure your bicycle wheels meet stringent international safety and durability requirements. The Feihong machine Bicycle Wheel Rim Fatigue Testing Machine is engineered for full compliance, providing you with globally recognized and trusted results. This allows third-party certification bodies and QA teams to verify product integrity with confidence using this advanced bicycle wheel rim quality control testing equipment.
Our commitment to quality and adherence to international standards is detailed below, giving you the assurance you need for global market access.
| Standard / Certification | Compliance & Benefits for Your Business |
|---|---|
| Design Standards (ISO 4210, EN 14764) | The machine is designed specifically around these core bicycle safety standards. This enables you to perform critical "dynamic walking," "brake performance," and "static pressure" tests to validate your wheel rims for international certification. |
| Testing Applicability (ASTM, GB) | Test data from our machine is applicable to a wide range of global standards, including ASTM and GB. This simplifies your compliance process and validates your product quality for diverse markets. |
| Quality & Safety (CE, ISO 9001) | Feihong machine operates under an ISO 9001 certified quality system. The machine is CE marked, guaranteeing it meets rigorous EU safety, health, and environmental protection requirements for your laboratory. |
What types of wheel rims can the Feihong machine test?
Our Bicycle Wheel Rim Fatigue Testing Machine is engineered for versatility. It accommodates rims for all major bicycle types, including road bikes, mountain bikes, hybrid bikes, and e-bikes. With an adjustable tray height of 50-200mm, you can confidently test rims of various sizes, from children's models to large adult versions.
How does the machine ensure realistic test conditions?
The machine applies 0-2000N of direct pressure, accurately simulating real-world forces like rider weight (typically 50-120kg) and additional cargo (e.g., backpacks, panniers). This ensures your test results provide a true reflection of the rim's durability and performance under typical usage. This makes it an effective bike rim performance test machine.
Is this testing machine compliant with international standards?
Yes. The Feihong machine is designed to meet stringent global testing standards, including ISO and ASTM. This guarantees your test data is credible and recognized worldwide, simplifying your product certification and quality assurance processes as a reliable bicycle wheel rim quality control testing equipment.
Can we export test data for analysis?
Absolutely. The system features built-in data logging to record critical metrics such as test duration, applied load, mileage, and speed. You can easily export this data in digital formats such as CSV for in-depth analysis, compliance reporting, or comparing performance across different production batches.
What maintenance does the machine require?
Routine maintenance is minimal, focusing primarily on regular calibration of moving parts and inspection of electrical connections. Its durable construction is designed to reduce wear, and detailed guidelines are provided by the manufacturer to ensure long-term reliability and maximum uptime.
