The Ping Pong Ball Rebound Tester is specially designed to measure the rebound height and elasticity performance of table tennis balls. The system uses a photoelectric detection method to accurately capture the rebound height of the ball after impact with a steel plate surface, ensuring reliable and repeatable test results.
The Ping Pong Ball Rebound Tester is specially designed to measure the rebound height and elasticity performance of table tennis balls. The system uses a photoelectric detection method to accurately capture the rebound height of the ball after impact with a steel plate surface, ensuring reliable and repeatable test results.

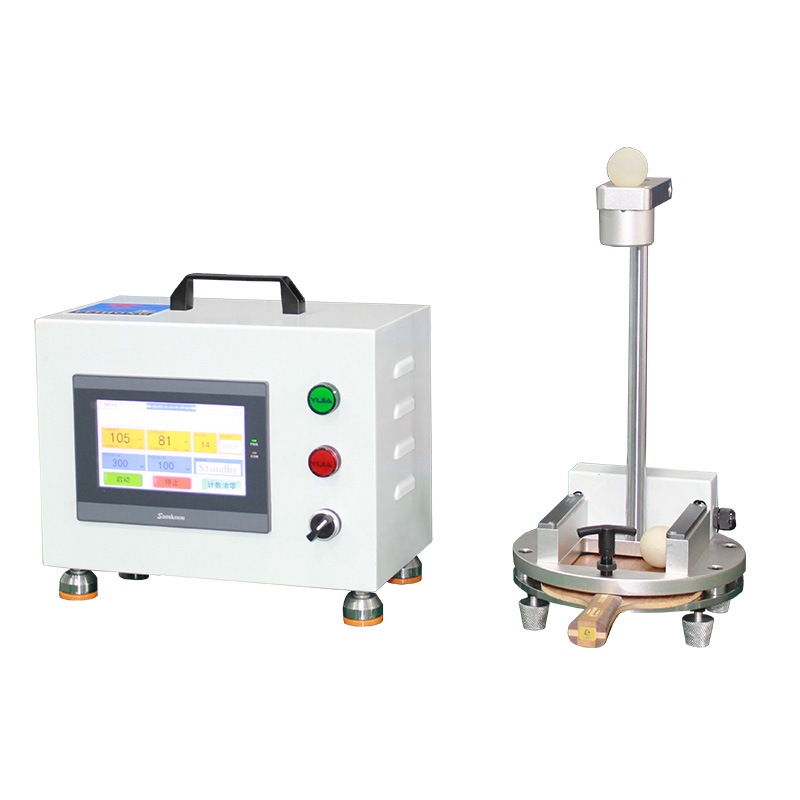

The equipment consists of a rebound test chamber and a data processing controller. The rebound chamber is equipped with a precision photoelectric sensing system on both sides of the circular steel plate. The steel plate can be leveled and adjusted to ensure testing accuracy. The data processor is microcomputer-controlled and provides automatic data acquisition, statistical analysis, display, printing, and output functions.
It is widely used by table tennis ball manufacturers, sports equipment testing laboratories, quality inspection agencies, and research institutions for product quality control and compliance testing.
Standards
Complies with:
GB/T 20045-2005 Table Tennis Balls
Technical Specifications
Item
Specification
Test Method
Photoelectric rebound height measurement
Test Object
Table tennis balls
Test Platform Size
220 × 220 × 420 mm
Control Box Size
335 × 190 × 220 mm
Power Supply
AC 220V
Power Consumption
220 W
Current
1 A
Detection System
Photoelectric sensing system
Data Processing
Microcomputer control
Functions
Data collection, statistics, display, printing, output
Compliance Standard
GB/T 20045-2005
FAQ
1. What is a Ping Pong Ball Rebound Tester used for?
A Ping Pong Ball Rebound Tester is used to measure the rebound height of table tennis balls after impact. The test evaluates ball elasticity, consistency, and performance to ensure compliance with quality standards such as GB/T 20045-2005.
2. How does the Table Tennis Ball Rebound Test Machine work?
The Table Tennis Ball Rebound Test Machine uses a photoelectric detection system positioned on both sides of the rebound chamber. When the ball rebounds from the steel plate, sensors automatically detect and record the rebound height, providing accurate and repeatable test data.
3. Which standard does the Ping Pong Ball Bounce Tester comply with?
This Ping Pong Ball Bounce Tester is designed according to GB/T 20045-2005, the standard that specifies performance requirements and testing methods for table tennis balls, including rebound characteristics.
4. Why is rebound height testing important for table tennis balls?
Rebound height is a critical indicator of ball quality and playing performance. A Table Tennis Ball Rebound Height Tester helps manufacturers verify elasticity consistency, maintain product quality, and ensure that balls deliver uniform bounce characteristics during competition and recreational play.
5. What industries use a Ping Pong Ball Rebound Testing Machine?
The Ping Pong Ball Rebound Testing Machine is commonly used by:
Table tennis ball manufacturers
Sporting goods quality control departments
Third-party testing laboratories
Research and development centers
National sports equipment inspection agencies
6. What are the advantages of a photoelectric Ping Pong Ball Rebound Tester?
Compared with manual measurement methods, a Photoelectric Ping Pong Ball Rebound Tester offers higher accuracy, automatic data collection, reduced human error, statistical analysis functions, and improved testing efficiency. The system also supports data display, printing, and output for quality documentation and traceability.
