Round Bottle Labeling Machine | Positioning Labeler for Cosmetics, Wine & Pharma Bottles

Round Bottle Labeling Machine with Precision Positioning System

Overview

Labeling round containers accurately is one of the most persistent challenges in packaging automation. Unlike flat-sided bottles, round bottles roll and rotate during the labeling process, making it difficult to consistently align labels with a fixed point — such as a logo, brand mark, or anti-counterfeit code. Our Round Bottle Labeling Machine is engineered specifically to solve this problem, offering smooth, stable, high-speed labeling for cylindrical containers across a wide range of industries.

For brands that import cosmetics, supplements, or beverages and need to apply Chinese-language labels, regulatory compliance labels, or anti-counterfeit tags at an exact position relative to existing markings, our machine includes an optional circumferential positioning labeling mechanism. This system detects a reference point on the bottle — typically a printed logo, seam line, or existing label edge — and synchronizes the label application so it lands in exactly the same spot on every single bottle, run after run.

This level of precision is critical for industries where brand presentation and regulatory accuracy both matter: a misaligned label on a pharmaceutical vial or an imported cosmetic jar can create compliance issues, while inconsistent label placement on a wine bottle undermines the premium look a brand is trying to project.

How the Positioning Labeling System Works

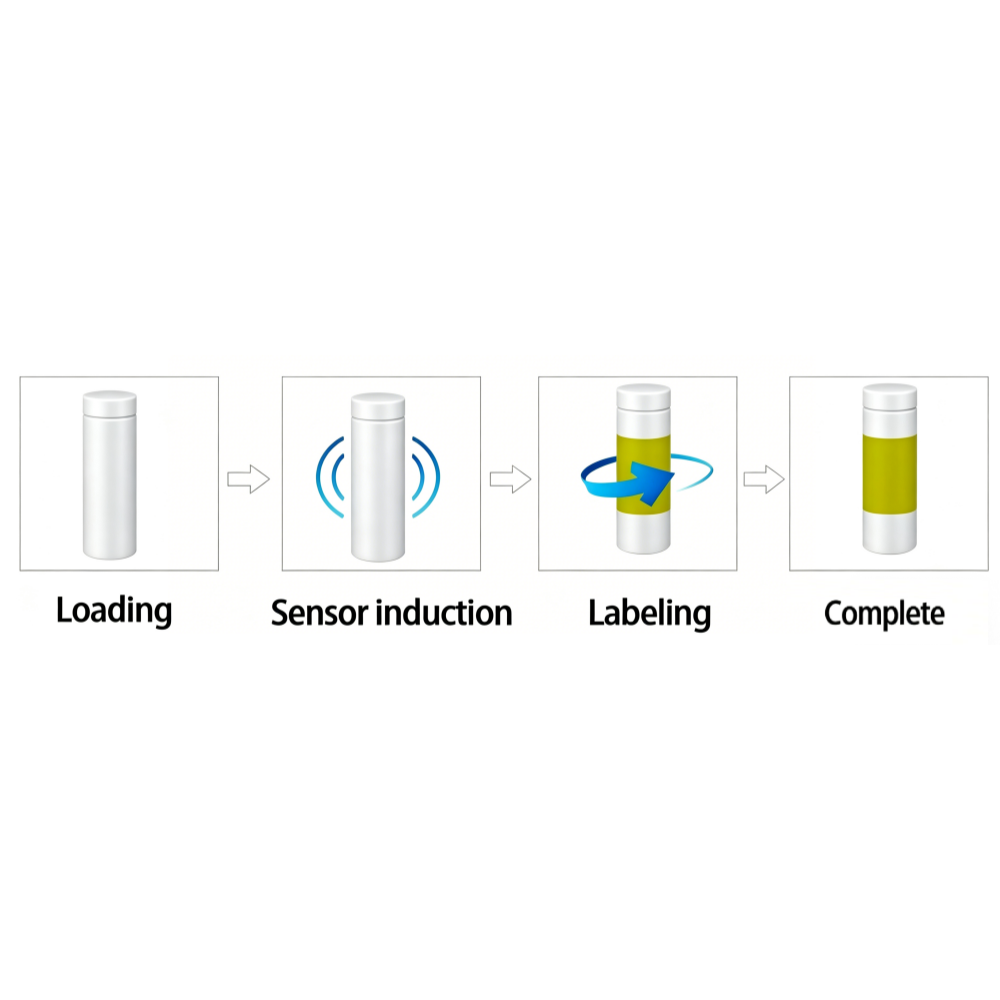

The positioning mechanism works by using a photoelectric or visual sensor to detect a fixed reference feature on the bottle as it rotates through the labeling station. Once that reference point is detected, the machine's control system calculates the exact rotational timing needed to apply the label at the desired offset from that point. This means:

• Labels can be applied directly opposite a logo, beside it, or at any custom angle you specify

• Every bottle in the batch receives the label in the same position, regardless of minor variations in bottle placement on the conveyor

• The system works even when bottles have asymmetric markings, embossed logos, or printed graphics that must align with the new label

This is particularly valuable for repackaging or relabeling scenarios — for example, when an imported cosmetic product needs a Chinese ingredient label, registration number, or anti-counterfeit QR code added without disturbing the original branding layout.

Wide Container Compatibility

One of the strengths of this machine is its versatility across container types and materials. The round bottle labeling machine is suitable for:

• Wine and spirits bottles – front labels, back labels, neck labels, or capsule-area labels

• Pharmaceutical bottles and penicillin vials – compliance labels, dosage labels, batch/lot coding labels

• Eye drop bottles – small-diameter precision labeling without crushing or deforming thin-walled containers

• Chili sauce jars and preserved plum jars – food-grade label application with adjustable pressure settings

• Health supplement and protein powder containers – including larger-diameter cylindrical tubs

• PET bottles and mineral water bottles – high-speed labeling for beverage production lines

• Imported cosmetics and tin cans – precision positioning for logo-aligned anti-counterfeit or import compliance labels

Because container diameter, height, and material vary so much across these categories, the machine is built with adjustable guide rails, interchangeable labeling heads, and tool-free format-change components, allowing operators to switch between product types within minutes.

Key Features

• Stable bottle rotation system – ensures consistent label wrap and prevents wrinkling or air bubbles on curved surfaces

• Optional circumferential positioning module – enables logo-aligned or mark-aligned label placement

• Adjustable labeling speed – suitable for both small-batch specialty production and high-volume beverage or pharma lines

• Quick-change tooling – minimizes downtime when switching between bottle sizes or label formats

• PLC/touchscreen control – simple operation and recipe storage for repeat jobs

• Compatible with self-adhesive labels – including paper, PVC, PP, and BOPP label stock

• Optional date/batch coder integration – for combined labeling and coding in one pass

• Stainless steel frame – suitable for washdown environments common in food, pharma, and cosmetics production

Why Positioning Accuracy Matters for Imported Cosmetics

When cosmetics, health products, or beverages are imported into China, regulations typically require a secondary Chinese-language label disclosing ingredients, manufacturer information, or a registration/filing number. Brands also frequently want to apply anti-counterfeit verification labels (QR codes, holograms, or scratch-off codes) to protect against grey-market diversion.

In both cases, the new label has to be applied in a position that:

1. Doesn't cover or obscure the original brand logo or required information

2. Is placed consistently enough that quality control and retail presentation remain professional

3. Can be verified or scanned reliably (which requires a predictable position)

Manual labeling or generic labeling machines without positioning control often produce inconsistent results — labels drift a few degrees off-target on each bottle, which looks unprofessional and can even cause compliance flags during customs or market inspection. Our positioning labeling mechanism removes this variability entirely.

Typical Applications by Industry

Frequently Asked Questions (FAQ)

Q1: What is the difference between a standard round bottle labeling machine and one with the positioning system?
A standard round bottle labeling machine applies labels at a fixed rotational starting point on the conveyor, which works fine when the bottle itself has no reference marking that needs to be matched. The positioning version adds a sensor that detects a logo, seam, or existing mark on each bottle and adjusts the label placement accordingly, so the new label is always aligned the same way relative to that existing feature — not just relative to the conveyor.

Q2: Can this machine handle different bottle diameters without buying a new machine?
Yes. The machine uses adjustable guide rails and format parts that can be reconfigured for different bottle diameters and heights. Very large diameter changes (for example, switching from eye drop bottles to large protein powder tubs) may require an additional tooling set, but the core machine frame and drive system remain the same.

Q3: What kind of bottles or marks can the positioning sensor detect?
The sensor can typically detect printed logos with sufficient contrast, embossed or debossed marks (with the right sensor type), existing label edges, or color-contrast seams. During setup, we configure the sensor sensitivity and detection logic based on samples of your actual bottles.

Q4: Is this machine suitable for both small-batch cosmetic brands and large beverage manufacturers?
Yes. The base machine speed and configuration can be tailored — slower, more precise settings for specialty cosmetics or pharma batches, or higher-speed configurations for beverage and PET bottle lines. Let us know your expected output (bottles per minute) and bottle specifications so we can recommend the right configuration.

Q5: Can the machine apply labels to both the front and back of a round bottle in one pass?
Yes, with a dual-head configuration, the machine can apply front and back labels in a single pass, which is common for wine bottles and cosmetic bottles that require both a brand label and an ingredient/compliance label.

Q6: Does this machine work with anti-counterfeit labels such as QR codes or holographic labels?
Yes. As long as the anti-counterfeit label is a standard self-adhesive label format, the machine can apply it using the positioning system to ensure it lands in a consistent, verifiable location on every bottle.

Q7: What label materials are compatible?
The machine works with most self-adhesive label stocks including paper, PVC, PP, and BOPP, in roll format. If you have a specific label material or unusual label shape, let us know and we can confirm compatibility or recommend adjustments.

Q8: What is the typical lead time and what information do you need for a quotation?
Lead time generally depends on configuration complexity, but we typically need: bottle diameter and height range, label size and material, required output speed (bottles/minute), and whether positioning, dual-head, or coding functions are needed. With this information we can provide an accurate quotation and estimated delivery time.

Q9: Is installation and training support provided?
Yes, we provide installation guidance, commissioning support, and operator training, either remotely or on-site depending on your location and project scope.

Q10: Can this machine be integrated into an existing production line?
Yes, the machine can be configured to integrate with upstream and downstream equipment such as filling machines, capping machines, and conveyor systems, allowing it to function as part of a complete automated packaging line rather than a standalone unit.
