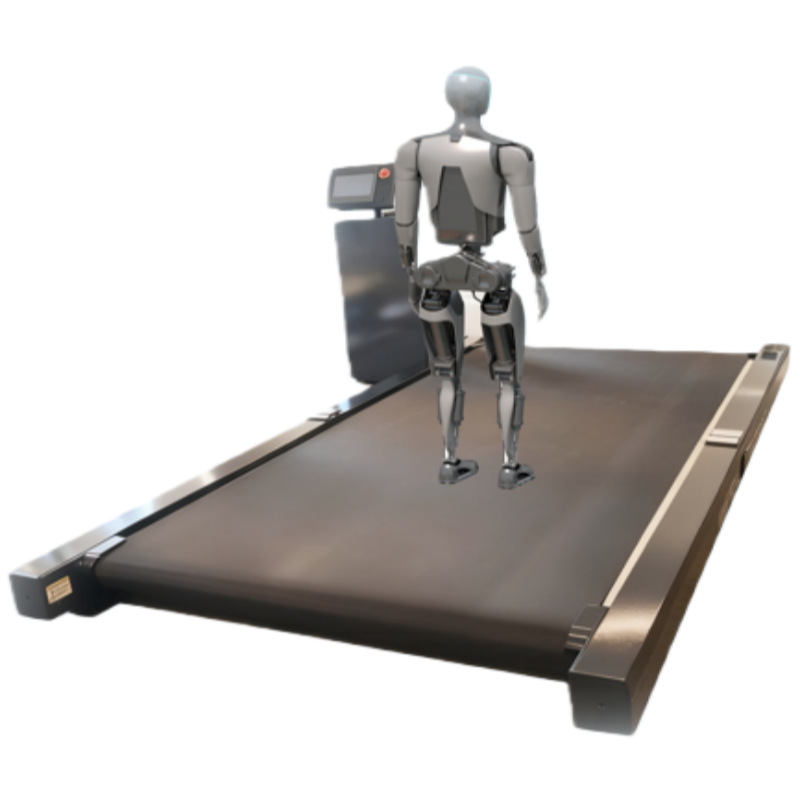

Humanoid Robot Foldable Test Bench Motion Durability Test Platform Walking Endurance Testing System

The Humanoid Robot Foldable Test Platform is designed to evaluate the durability, reliability, and lifecycle performance of humanoid robots, quadruped robots, exoskeleton systems, and other intelligent mobile robotic devices.

The system simulates repetitive folding, walking, bending, turning, and dynamic motion scenarios encountered during real-world operation. By reproducing continuous movement cycles under controlled conditions, manufacturers and research laboratories can assess structural integrity, motion stability, mechanical fatigue, and long-term reliability before product deployment.

The platform is ideal for robotics R&D centers, AI laboratories, universities, certification organizations, and robot manufacturers seeking repeatable and data-driven validation of robotic mobility systems.

Main Features

High-Precision Servo Drive System

The platform utilizes a high-precision servo motor to ensure stable speed control and repeatable testing conditions.

Benefits include:

• Smooth operation

• Accurate speed regulation

• Low vibration

• Consistent test repeatability

Full-Touch Intelligent Control Interface

The integrated touchscreen displays:

• Running time

• Travel distance

• Current speed

• Maximum speed

• System status

• Fault diagnostics

Users can easily configure:

• Acceleration profiles

• Target speeds

• Test duration

• Motion parameters

Real-Time Data Monitoring

The system continuously records operational parameters to support engineering analysis and reliability verification.

Monitored parameters include:

• Speed

• Distance

• Runtime

• Peak speed

• Equipment status

Data can be transmitted through Ethernet or RS485 communication interfaces for integration with external monitoring systems.

Portable Wireless Remote Control

A detachable wireless controller allows operators to start, stop, accelerate, or decelerate the platform remotely while observing robot behavior from different positions.

Industrial Safety Protection

The platform incorporates multiple safety mechanisms, including:

• Ground fault protection

• Emergency stop system

• Safety interlocks

• Anti-misoperation logic

• Reset confirmation before startup

These features help protect personnel, robots, and testing equipment during operation.

Technical Specifications

Typical Applications

• Humanoid Robot Testing

• Quadruped Robot Testing

• Exoskeleton Validation

• AI Robot Development

• Mobility Robot Endurance Testing

• Robotic Joint Reliability Studies

• Robotics Research Laboratories

• Product Certification Preparation

• Mechanical Lifecycle Evaluation

• Autonomous Navigation Validation

FAQ

1. Why is motion durability testing critical for humanoid robots?

Motion durability testing evaluates how a robot performs after thousands or even millions of repetitive movement cycles.

In real-world applications, humanoid robots continuously walk, turn, bend, squat, and perform repetitive actions. These motions place constant stress on joints, bearings, structural frames, actuators, and transmission systems.

The Foldable Test Platform allows manufacturers to simulate long-term operation in an accelerated testing environment, helping identify:

• Joint wear and backlash

• Structural fatigue

• Fastener loosening

• Motion instability

• Premature component failure

This enables engineers to improve reliability before commercial deployment.

2. What is the purpose of robot walking and gait simulation testing?

Walking simulation verifies whether a robot can maintain stable and repeatable movement under continuous operating conditions.

A robot may demonstrate excellent performance during short demonstrations but develop gait drift, balance issues, or control deviations after extended operation.

By running the robot continuously on the test platform, engineers can evaluate:

• Walking stability

• Gait consistency

• Motion control accuracy

• Balance performance

• AI navigation behavior

The collected data helps optimize control algorithms and mechanical design for long-term operation.

3. How does lifecycle testing help predict robot service life?

Lifecycle testing accelerates the aging process of mechanical and electromechanical components.

Instead of waiting years to observe failures in the field, engineers can run continuous movement cycles on the platform to simulate extended usage in a shorter period.

This testing helps determine:

• Expected service life

• Maintenance intervals

• Component replacement schedules

• Long-term reliability trends

The results provide valuable evidence for product validation, quality assurance, and warranty planning.

4. Why is real-time speed and distance monitoring important during robot testing?

Speed and distance are key indicators used to verify repeatability and consistency throughout a test cycle.

Changes in travel speed, movement efficiency, or total distance covered can indicate hidden issues such as:

• Motor degradation

• Gearbox wear

• Increased mechanical resistance

• Battery performance decline

• Control system abnormalities

By continuously monitoring and recording these parameters, engineers can detect performance changes early and correlate them with mechanical or electrical system behavior.

This data-driven approach allows more accurate reliability analysis and helps validate whether the robot can maintain its designed performance over its intended service life.

5. Can the platform be used for both humanoid and quadruped robots?

Yes.

The platform is designed as a versatile mobility testing system capable of supporting various robotic platforms, including:

Humanoid robots

Quadruped robots

Service robots

Inspection robots

Exoskeleton systems

Autonomous mobile robots (AMRs)

The large running area, programmable speed control, and flexible communication interfaces make it suitable for both research and commercial robotics development programs.
