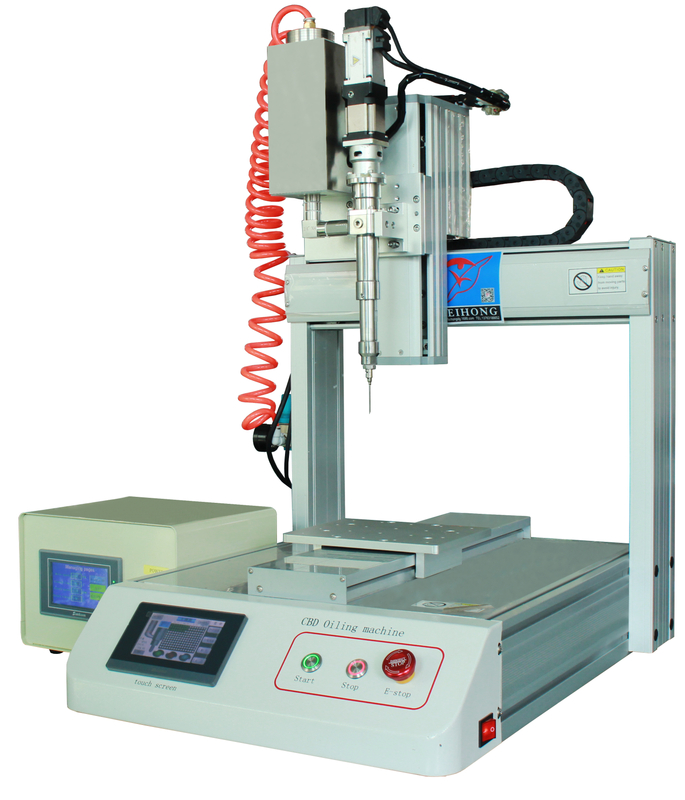

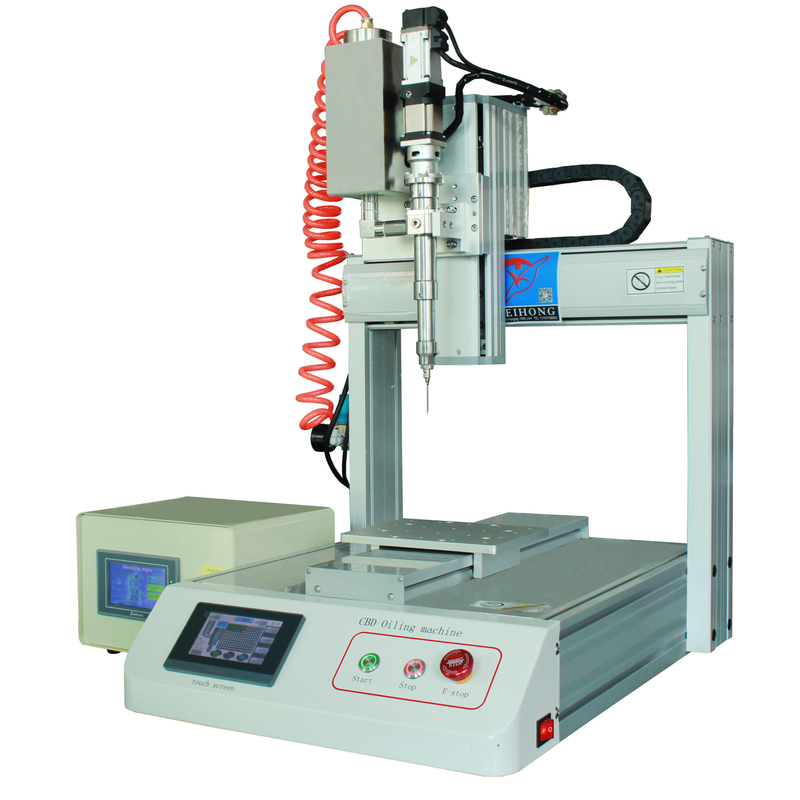

THC Automatic Oil Filling Machine | CBD Vape Cartridge Filling Equipment

Filling Principle: Manually pour oil into the oil cup, place the smoking device on the custom fixture, power on the machine, set the filling parameters, and move the three-axis platform to perform the filling operation.

Three-axis module: Domestic

Touchscreen: Xiankong

Fixture: Custom

Motor: Shenli

Specifications:

Oil Cup Capacity: 500 ml

Heating Temperature: 60°C

Dosing Volume: 0.3 ml

Dosing Accuracy: 0.02 ml

Configuration:

3-Axis Moving Module Platform: 1 set

Stepper Motors: 3 sets

CBD Heating Dosing Pump (with 1 motor): 1 set

Heating Fixture: 1 set

Positioning Fixture: 1 set
