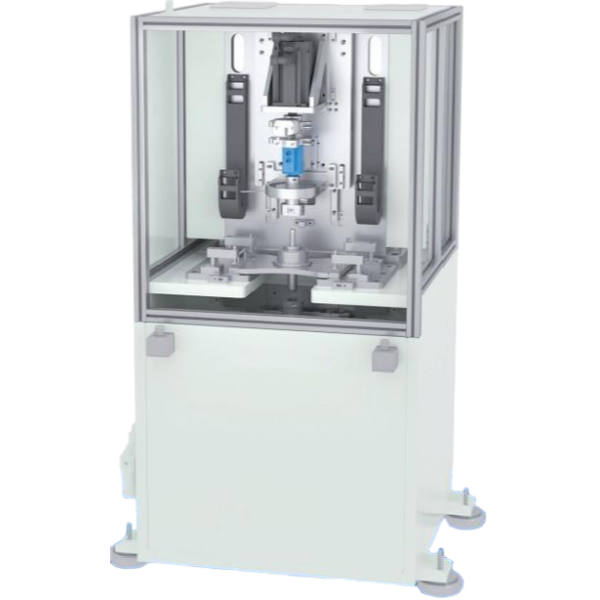

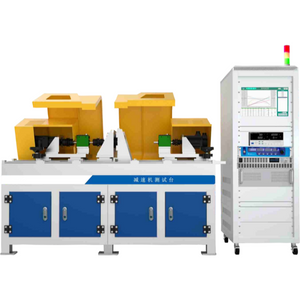

The Harmonic & Planetary Reducer End-of-Line Test Bench is a high-speed, high-precision production testing system specifically developed for factory acceptance testing and quality verification of harmonic drives, RV reducers, planetary gearboxes, and robotic precision transmission systems.

Designed according to the latest domestic and international gearbox testing methodologies, the system combines advanced real-time control technology, high-speed data acquisition, and automated evaluation software to deliver rapid and repeatable performance verification before shipment.

Unlike R&D-oriented test platforms, this system is optimized for high-throughput manufacturing environments, allowing manufacturers to verify critical reducer performance indicators within a short testing cycle while maintaining laboratory-grade accuracy.

Typical Applications

• Harmonic drives

• RV reducers

• Planetary reducers

• Humanoid robot joint reducers

• Industrial robot gearboxes

• Collaborative robot transmissions

• Servo reducer assemblies

• Precision motion-control gearboxes

Key Test Functions & Testing Logic

1. No-Load Friction Torque Test

Purpose

Verify internal mechanical resistance and assembly quality.

Testing Logic

The reducer operates at a specified speed without external loading while the system measures friction torque generated by bearings, gears, and seals.

Quality Benefits

• Detect assembly defects

• Verify lubrication quality

• Ensure smooth operation

2. Starting Torque Test

Purpose

Measure the torque required to initiate reducer movement.

Testing Logic

The drive motor gradually increases torque until the gearbox begins rotating.

Quality Benefits

• Verify startup performance

• Detect excessive friction

• Improve low-speed control characteristics

3. Reverse Starting Torque Test

Purpose

Evaluate bidirectional transmission consistency.

Testing Logic

The gearbox repeatedly changes rotational direction while startup torque is measured in both directions.

Quality Benefits

• Verify directional consistency

• Detect asymmetrical gear meshing

• Improve robotic motion control accuracy

4. Transmission Efficiency Test

Purpose

Measure gearbox energy transfer efficiency.

Testing Logic

Input and output torque and speed are measured simultaneously.

Efficiency is calculated as:

η=PoutPin×100%\eta=\frac{P_{out}}{P_{in}}\times100\%η=Pin​Pout​​×100%

Quality Benefits

• Detect abnormal power losses

• Compare batch consistency

• Improve energy efficiency

5. Overload Test

Purpose

Verify reducer strength and operational safety margin.

Testing Logic

The system applies controlled torque levels above rated operating conditions while monitoring gearbox response.

Quality Benefits

• Validate structural integrity

• Confirm overload capability

• Detect manufacturing defects

6. Backlash & Hysteresis Curve Testing

Purpose

Evaluate gearbox positioning accuracy.

Testing Logic

The reducer is rotated alternately in forward and reverse directions while high-resolution encoders measure angular displacement differences.

Quality Benefits

• Verify backlash specifications

• Improve robot positioning accuracy

• Detect gear assembly issues

7. Torsional Stiffness Test

Purpose

Measure resistance to torsional deformation.

Testing Logic

Controlled torque loads are applied while angular deflection is recorded.

Quality Benefits

• Verify joint rigidity

• Improve motion control performance

• Ensure batch consistency

8. Lost Motion (Hysteresis) Test

Purpose

Evaluate transmission responsiveness.

Testing Logic

Small forward and reverse motion commands are applied to quantify angular response delay.

Quality Benefits

• Improve servo precision

• Verify robotic joint performance

• Reduce positioning errors

9. Transmission Error Test

Purpose

Measure motion accuracy.

Testing Logic

Input and output positions are continuously compared using ultra-high-precision encoders.

Quality Benefits

• Detect manufacturing inaccuracies

• Verify precision-grade reducer quality

• Improve motion smoothness

10. Vibration Analysis

Purpose

Evaluate dynamic operating quality.

Testing Logic

Vibration sensors continuously monitor gearbox behavior during operation.

Quality Benefits

• Detect bearing defects

• Identify gear meshing abnormalities

• Improve long-term reliability

Why This System Is Ideal for End-of-Line Testing

Fast Testing Cycle

Designed specifically for production environments where large volumes of reducers must be tested efficiently before shipment.

Automated Quality Judgment

The software automatically compares measured results against predefined pass/fail limits and generates immediate test conclusions.

Consistent Production Verification

Ensures every gearbox leaving the factory meets the same performance standards.

High-Speed Real-Time Control

Advanced control architecture delivers:

• Fast response

• High repeatability

• Stable measurements

• Reduced operator influence

Technical Specifications

Key Advantages

✅ Designed specifically for factory acceptance and shipment inspection

✅ Supports harmonic drives, RV reducers, and planetary gearboxes

✅ Fast testing cycle for mass-production environments

✅ Automatic pass/fail evaluation

✅ High-precision torque, speed, and angle measurement

✅ Real-time monitoring and data acquisition

✅ Traceable production records and quality reports

✅ Compatible with MES and smart factory systems

FAQ

Q1: What is the difference between this End-of-Line Test Bench and an R&D Gearbox Test Bench?

An End-of-Line (EOL) system focuses on rapid production inspection and automatic pass/fail verification, while an R&D test bench emphasizes deeper analysis such as durability, lifetime, thermal behavior, and design optimization. EOL systems prioritize testing speed and production throughput.

Q2: Why is backlash testing critical for robot reducers?

Backlash directly affects robot positioning accuracy, repeatability, and motion smoothness. Excessive backlash can lead to control instability and reduced precision in humanoid robots and robotic arms.

Q3: How does the system determine whether a gearbox passes inspection?

The software automatically compares measured parameters—including friction torque, efficiency, backlash, stiffness, and transmission error—against predefined tolerance limits and generates an automatic PASS/FAIL result.

Q4: Why are harmonic and RV reducers commonly tested before shipment?

These reducers are precision components used in robotic joints and servo systems. Even small deviations in backlash, transmission error, or efficiency can significantly affect overall robot performance, making 100% inspection highly valuable.

Q5: Can the test bench integrate with factory MES systems?

Yes. The platform can be configured with MES, ERP, barcode scanning, QR code traceability, and automated production-line communication interfaces to support Industry 4.0 manufacturing environments.

Q6: What is the purpose of transmission error testing?

Transmission error testing measures the difference between theoretical and actual output motion. Lower transmission error indicates higher gearbox precision, smoother operation, and better robotic control performance.

Q7: Which industries typically use this testing system?

The system is widely used in:

• Humanoid robot manufacturing

• Industrial robotics

• Collaborative robots (Cobots)

• Medical robotics

• Aerospace motion systems

• Precision automation equipment

• Servo transmission manufacturing

• High-end gearbox production facilities

These industries require consistent, traceable, and high-precision reducer quality verification before products are delivered to customers.
