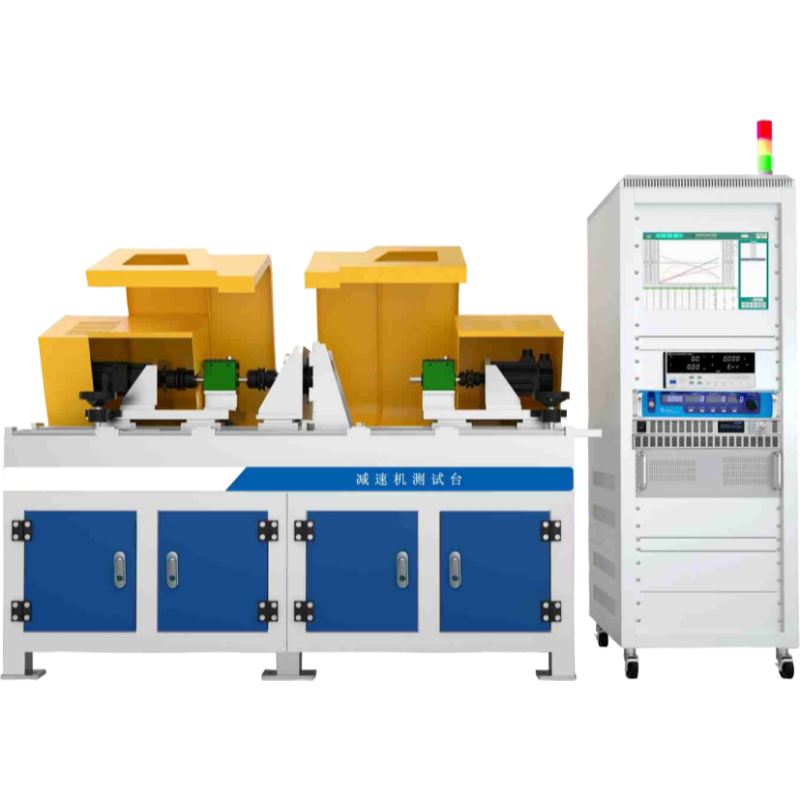

The Robot Gearbox Test Bench is a comprehensive performance evaluation platform designed for testing and validating robotic reducers, precision gearboxes, harmonic drives, RV reducers, planetary gearboxes, worm gear reducers, and other transmission systems used in humanoid robots, industrial robots, automation equipment, and servo drive applications.

The system measures critical mechanical, electrical, and thermal performance parameters under real operating conditions, helping manufacturers verify gearbox efficiency, transmission accuracy, durability, and reliability before deployment.

With modular architecture and customizable loading systems, the test bench can be configured to meet specific R&D, production quality control, certification, and endurance testing requirements.

Applicable Standards

The system can be configured to support testing requirements based on:

• ISO 9283 – Robot Performance Testing

• ISO 230 Series – Machine Tool Accuracy Testing

• IEC 60034 – Rotating Electrical Machines

• AGMA Gear Standards

• DIN Gearbox Testing Standards

• JIS Mechanical Transmission Standards

• GB/T Reducer Performance Testing Standards

• Customer-Specific Internal Validation Procedures

Key Test Functions & Testing Logic

1. Input and Output Torque Measurement

Purpose:
Evaluate the torque transmission capability of the reducer.

Testing Logic:

• A servo motor drives the gearbox input shaft.

• Precision torque sensors are installed at both input and output ends.

• The system continuously records transmitted torque under different load conditions.

• Torque loss and transmission characteristics are automatically calculated.

Benefits:

• Verify rated torque capacity

• Identify torque loss

• Evaluate overload performance

2. Speed and Power Performance Testing

Purpose:
Analyze gearbox speed reduction performance and power transmission characteristics.

Testing Logic:

• Input shaft speed is precisely controlled.

• Output speed is measured in real time.

• Input and output power are calculated simultaneously.

• Speed ratio accuracy is automatically verified.

Benefits:

• Validate reduction ratio

• Verify transmission consistency

• Detect mechanical abnormalities

3. Gearbox Efficiency Testing

Purpose:
Determine actual transmission efficiency.

Testing Logic:

The system calculates:

Efficiency=Output PowerInput Power×100%Efficiency = \frac{Output\ Power}{Input\ Power} \times 100\%Efficiency=Input PowerOutput Power​×100%

under multiple operating points.

Benefits:

• Evaluate energy loss

• Compare gearbox designs

• Optimize robot joint efficiency

4. Backlash Measurement

Purpose:
Measure rotational clearance between gear components.

Testing Logic:

• Bidirectional torque is applied.

• Angular displacement is monitored.

• Backlash is calculated in arc-seconds.

Benefits:

• Critical for humanoid robot precision

• Improves motion control accuracy

• Reduces positioning errors

5. Transmission Error Testing

Purpose:
Assess gearbox motion precision.

Testing Logic:

• High-resolution encoders measure input/output rotation.

• Actual output motion is compared with theoretical values.

• Transmission error curves are generated automatically.

Benefits:

• Evaluate robotic joint accuracy

• Improve motion smoothness

• Reduce vibration and resonance

6. Stiffness Testing

Purpose:
Measure torsional rigidity under load.

Testing Logic:

• Increasing torque loads are applied.

• Angular deformation is recorded.

• Torsional stiffness is calculated automatically.

Benefits:

• Important for robot stability

• Evaluates structural rigidity

• Supports precision motion control

7. Temperature Rise Testing

Purpose:
Assess thermal performance during continuous operation.

Testing Logic:

• Reducer operates under specified load cycles.

• Temperature sensors monitor housing and critical components.

• Temperature rise curves are generated automatically.

Benefits:

• Detect lubrication issues

• Verify thermal design

• Prevent premature failures

8. Vibration and Noise Analysis

Purpose:
Evaluate operating smoothness and gear meshing quality.

Testing Logic:

• Vibration sensors monitor dynamic response.

• Noise sensors capture sound pressure levels.

• FFT spectrum analysis can be integrated.

Benefits:

• Identify bearing defects

• Detect gear wear

• Improve NVH performance

Technical Features

High-Precision Measurement

• Torque accuracy up to ±0.2% F.S.

• Angular measurement accuracy up to ±1 arc-second

• High-speed synchronized data acquisition

Flexible Loading Options

Available loading methods include:

• Magnetic Powder Brake

• Eddy Current Dynamometer

• Regenerative Electrical Loading

Different loading systems allow simulation of various operating conditions and duty cycles.

Advanced Data Analysis Software

The software automatically:

• Displays real-time test data

• Generates efficiency maps

• Records temperature curves

• Creates torque-speed curves

• Exports reports in Excel, Word, and PDF formats

Advantages

 Suitable for harmonic drives, RV reducers, planetary gearboxes, and worm gear reducers

 Supports R&D validation and production quality control

 High-accuracy torque and transmission error measurement

 Real-time efficiency, temperature, vibration, and noise monitoring

 Customizable test procedures and loading modes

 Automatic report generation and data traceability

FAQ

Q1: What types of reducers can this test bench evaluate?

The system supports testing of planetary gearboxes, harmonic drives, RV reducers, worm gear reducers, cycloidal reducers, servo gearboxes, and customized robotic transmission systems.

Q2: Why is backlash testing important for humanoid robots?

Backlash directly affects positioning accuracy and motion stability. Excessive backlash can cause delayed responses, oscillation, and reduced control precision in robotic joints.

Q3: How is gearbox efficiency measured?

The system simultaneously measures input and output torque and speed, calculates power at both ends, and automatically determines transmission efficiency under different load conditions.

Q4: Can the test bench perform durability or life-cycle testing?

Yes. By combining continuous loading with temperature, vibration, and efficiency monitoring, the system can perform long-term endurance testing to evaluate gearbox reliability and service life.

Q5: What loading methods are available and how do they differ?

• Magnetic Powder Brake: Suitable for low-speed, high-stability loading.

• Eddy Current Dynamometer: Ideal for dynamic and high-speed testing.

• Regenerative Electrical Loading: Returns energy to the grid, reducing power consumption during long-duration tests.

Q6: Why is transmission error testing important?

Transmission error is one of the key indicators of gearbox precision. Lower transmission error results in smoother motion, reduced vibration, higher positioning accuracy, and improved robot performance.

Q7: Can the system integrate with factory MES or quality management systems?

Yes. Communication interfaces and data protocols can be customized to integrate with MES, ERP, SPC, and automated production quality systems for Industry 4.0 applications.
