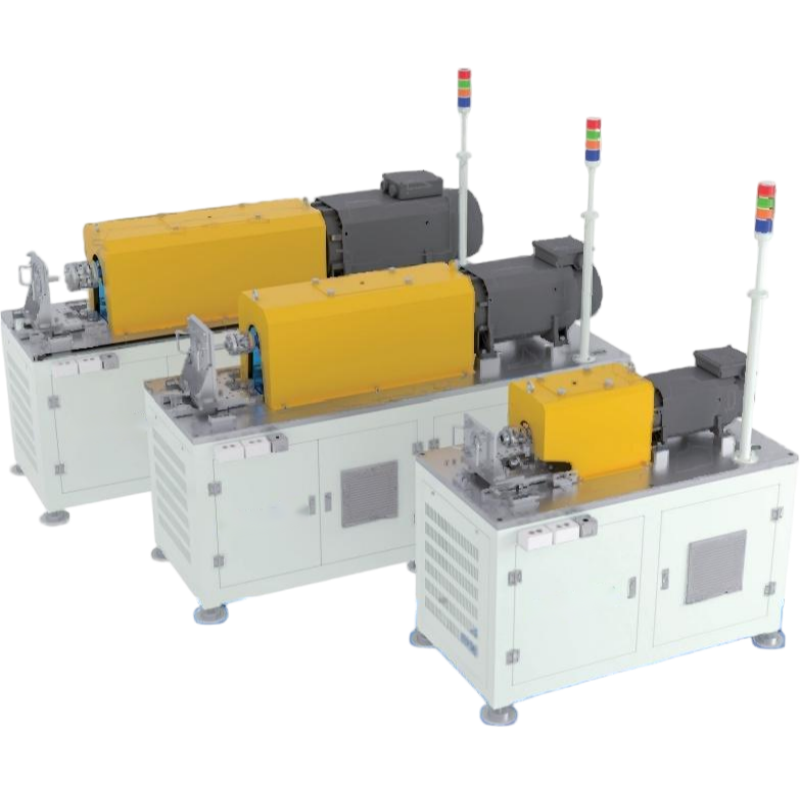

The Humanoid Robot Joint Module Comprehensive Performance Test Bench is a professional testing platform specifically developed for evaluating the performance, reliability, and durability of humanoid robot joint modules.
The system provides comprehensive testing of critical joint parameters including rotational speed, output torque, load capacity, positioning accuracy, power characteristics, and endurance performance. Designed for both R&D validation and production quality control, the platform supports automated testing, real-time data acquisition, and intelligent analysis, enabling manufacturers to verify joint performance throughout the product lifecycle.
Its highly adaptable fixture design allows compatibility with various joint module specifications, reducing setup time and improving testing efficiency across multiple robot platforms.
Key Features
Comprehensive Performance Evaluation
A single platform capable of testing:
Rotational Speed
Output Torque
Load Capacity
Positioning Accuracy
Electrical Performance
Dynamic Response
Durability & Endurance
Reliability Verification
High-Precision Measurement
Equipped with high-accuracy sensors for torque, voltage, current, speed, and angle measurement to ensure reliable and repeatable test results.
Multi-Model Compatibility
Supports a wide range of humanoid robot joint modules without frequent fixture replacement, significantly improving laboratory and production efficiency.
Automated Testing & Data Analysis
Automated test execution minimizes human error while enabling real-time data acquisition, analysis, storage, and traceability.
Ideal for R&D and Mass Production
Suitable for prototype validation, design optimization, product certification, production inspection, and quality assurance applications.
Test Functions
Joint Speed Performance Test
Evaluates maximum speed, operating stability, acceleration characteristics, and dynamic response.
Torque & Load Capacity Test
Measures output torque and verifies load-bearing capability under different operating conditions.
Positioning Accuracy Test
Assesses angular positioning precision, repeatability, and control accuracy.
Electrical Performance Test
Monitors voltage, current, power consumption, and efficiency during operation.
Endurance & Life Cycle Testing
Performs long-duration operational testing to evaluate reliability and service life.
Dynamic Performance Analysis
Captures motion characteristics during acceleration, deceleration, load changes, and cyclic operation.
Technical Specifications
Parameter Range Accuracy
Voltage Measurement 0 – 100 V ±0.2%
Current Measurement 0 – 200 A ±0.2%
Torque Measurement 0 – 200 N·m ±0.05%
Speed Measurement 0 – 2000 rpm ±1 rpm
Angular Position Accuracy ±2.5 arc-sec (±1 arc-sec optional) High Precision
Data Acquisition & Analysis
The integrated software platform provides:
Real-Time Torque Curves
Speed Curves
Current & Voltage Monitoring
Position Tracking
Efficiency Analysis
Dynamic Response Evaluation
Historical Data Comparison
Automatic Report Generation
Data Export Functions
Traceable Test Records
Applications
Humanoid Robot Manufacturers
Validation and quality inspection of robotic joint modules used in humanoid robots.
Robot Actuator Developers
Performance verification and optimization of integrated servo actuators.
Robotics Research Institutes
Evaluation of motion control systems, drive technologies, and actuator designs.
Quality Control Laboratories
Standardized testing and reliability assessment of production components.
Universities & Research Centers
Robotics research, actuator development, and motion control studies.
Product Advantages
One Platform, Multiple Tests
Combines speed, torque, accuracy, electrical, and endurance testing into a single integrated system.
Strong Adaptability
Compatible with various joint module sizes and configurations, reducing fixture replacement requirements.
High Testing Efficiency
Automated testing procedures improve throughput while minimizing operator involvement.
Accurate and Traceable Results
Precision sensors and real-time data acquisition ensure repeatable, reliable, and fully traceable test results.
Supports Product Development and Quality Assurance
From prototype verification to mass production inspection, the system provides comprehensive performance validation for robot joint modules.
FAQ
Q1: What types of robot joints can be tested?
A: The system is suitable for humanoid robot joints, servo actuators, rotary drive modules, integrated joint actuators, and other robotic motion modules.
Q2: Can different joint sizes be tested on the same machine?
A: Yes. The test bench is designed with adaptable fixtures and supports multiple joint module specifications.
Q3: What is the maximum torque measurement range?
A: The standard configuration supports torque measurement up to 200 N·m with an accuracy of ±0.05%.
Q4: Is endurance testing supported?
A: Yes. The system can perform continuous life-cycle and durability testing to evaluate long-term reliability.
Q5: Can test reports be exported?
A: Yes. The software automatically records all test data and generates exportable reports, charts, and performance analyses.
