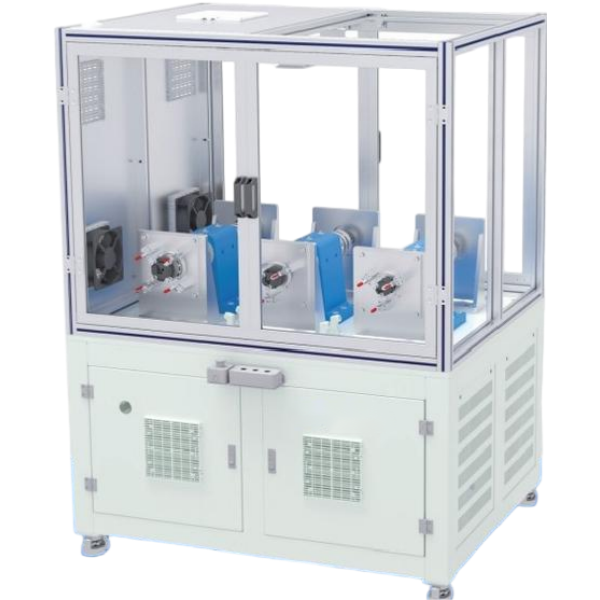

The Humanoid Robot Joint Module Aging Test Bench is a professional reliability and endurance testing platform specifically developed for long-term validation of robotic joint modules, servo actuators, and integrated drive units used in humanoid robots, collaborative robots, service robots, exoskeletons, and advanced automation systems.

The system simulates continuous operation, cyclic loading, repeated motion cycles, and long-duration endurance conditions to evaluate the long-term performance degradation, stability, thermal behavior, and service life of robot joint modules.

Featuring a 6-station architecture capable of testing up to 12 joint modules simultaneously, the platform significantly improves testing efficiency for R&D laboratories, production quality assurance, and mass-production reliability validation.

Typical Applications

• Humanoid robot joint modules

• Rotary servo actuators

• Integrated robot drive units

• Harmonic drive joint assemblies

• Exoskeleton joint systems

• Collaborative robot actuators

• Service robot drive modules

• Industrial robot joint assemblies

Key Testing Functions & Testing Logic

1. Continuous Operation Aging Test

Purpose

Evaluate long-term operational stability and durability of robot joint modules.

Testing Logic

The joint module operates continuously under predefined speed, torque, and duty-cycle conditions for extended periods.

During testing, the system continuously monitors:

• Voltage

• Current

• Torque

• Speed

• Operating status

Performance variations are automatically recorded and analyzed.

Benefits

• Identify early-life failures

• Verify product reliability

• Evaluate long-term stability

• Validate mass-production quality

2. Life Cycle Endurance Testing

Purpose

Determine the service life of robotic actuators under repeated operating conditions.

Testing Logic

The system repeatedly executes programmed motion profiles, including:

• Forward/reverse rotation

• Start-stop cycles

• Acceleration/deceleration cycles

• Repetitive load cycles

The number of completed cycles is automatically counted and stored.

Benefits

• Predict service life

• Compare design iterations

• Verify durability targets

3. Performance Degradation Analysis

Purpose

Measure how actuator performance changes over time.

Testing Logic

Key electrical and mechanical parameters are continuously collected throughout the aging process.

The software compares initial performance against current performance to identify:

• Torque degradation

• Efficiency reduction

• Speed instability

• Increased power consumption

Benefits

• Detect wear mechanisms

• Evaluate gearbox durability

• Improve actuator design

4. Thermal Stability Evaluation

Purpose

Assess heat generation and temperature-related performance changes.

Testing Logic

Under continuous operation, current draw and load conditions are monitored while temperature sensors (optional) track thermal behavior.

Engineers can evaluate:

• Heat accumulation

• Thermal equilibrium

• Efficiency changes due to temperature rise

Benefits

• Verify thermal design

• Prevent overheating failures

• Improve cooling solutions

5. Multi-Parameter Reliability Monitoring

Purpose

Provide a complete reliability assessment throughout the test period.

Testing Logic

The system simultaneously records:

• Voltage

• Current

• Torque

• Speed

• Running time

• Cycle count

Abnormal parameter fluctuations trigger warnings or automatic shutdown.

Benefits

• Prevent catastrophic failures

• Enable unattended operation

• Improve testing efficiency

Key Advantages

High Throughput Testing

• 6 independent stations

• Up to 12 samples tested simultaneously

• Significant reduction in validation time

Quick Fixture Changeover

Fast-clamping fixture design minimizes setup time and supports different joint module configurations.

24/7 Continuous Operation

Industrial-grade hardware and control architecture support uninterrupted long-duration testing.

Automated Data Acquisition

Real-time collection and storage of all critical test parameters for complete traceability.

Intelligent Alarm Protection

Automatic fault detection and warning functions help protect test samples and equipment.

Technical Specifications

Applicable Standards

The platform can be configured to support reliability verification requirements related to:

• ISO 9283 – Manipulating Industrial Robots Performance Testing

• IEC 60034 – Rotating Electrical Machines

• IEC 61800 – Adjustable Speed Drive Systems

• ISO 13849 – Functional Safety of Machinery

• ISO 10218 – Industrial Robot Safety

• Customer-Specific Reliability Validation Protocols

• Internal Life Cycle and Endurance Test Standards

FAQ

Q1: Why is aging testing important for humanoid robot joint modules?

Joint actuators are among the most heavily used components in humanoid robots. Aging testing identifies performance degradation, thermal issues, and early-life failures before products enter mass production or field deployment.

Q2: Why can the system test 12 samples with only 6 stations?

Each station can be configured with dual-fixture arrangements, allowing two joint modules to run simultaneously under the same test profile, maximizing throughput and testing efficiency.

Q3: What parameters are monitored during endurance testing?

The system continuously records voltage, current, torque, speed, runtime, and cycle count. Additional sensors such as temperature and vibration monitoring can also be integrated.

Q4: How does the system determine whether a joint module has degraded?

The software compares real-time performance data against baseline values. Changes in torque output, speed stability, power consumption, and efficiency indicate potential wear or degradation.

Q5: Can different robot joint models be tested on the same machine?

Yes. The quick-change fixture system allows rapid adaptation to different joint module sizes, mounting patterns, and actuator configurations.

Q6: Is the system suitable for production quality control as well as R&D?

Absolutely. The platform is widely applicable for:

• Product development validation

• Reliability engineering

• Design verification testing (DVT)

• Production quality assurance

• Incoming supplier inspection

• Lifetime and durability studies

Q7: What is the main testing objective of a robot joint aging test?

The primary goal is to verify whether the joint module can maintain stable torque output, speed accuracy, electrical performance, and mechanical reliability throughout its expected service life under real-world operating conditions.
