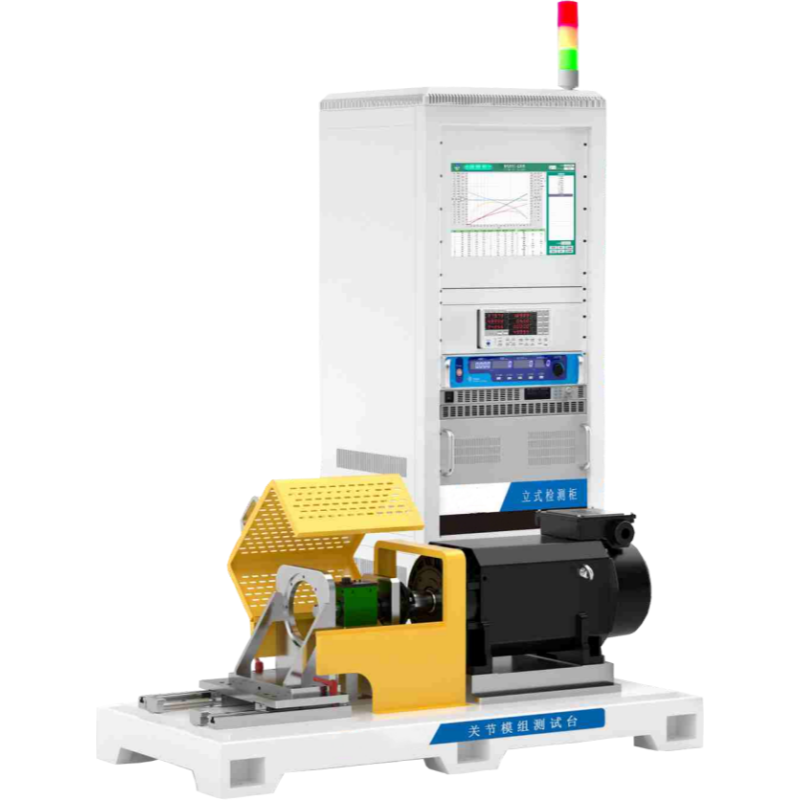

The Robotic Joint Module Motor Test Bench is a professional testing platform designed for performance evaluation, reliability verification, and quality inspection of robotic joint motors and integrated actuator modules.

The system enables comprehensive testing of critical parameters including torque, speed, response time, efficiency, positioning performance, and endurance characteristics. Equipped with high-precision measurement sensors and intelligent control software, the platform provides accurate and repeatable test results for R&D laboratories, production lines, and quality assurance departments.

Designed with excellent flexibility, the test bench supports various servo motors, robotic actuators, integrated joint modules, and humanoid robot drive systems, making it an ideal solution for both product development and mass-production validation.

Key Features

Comprehensive Performance Evaluation

Evaluate essential motor and actuator characteristics, including:

• Output Torque

• Rotational Speed

• Dynamic Response Time

• Acceleration & Deceleration Performance

• Positioning Accuracy

• Operational Stability

• Endurance & Reliability

High-Precision Measurement

Advanced sensors provide accurate acquisition of torque, speed, current, voltage, and motion data, ensuring reliable performance assessment under real operating conditions.

Intelligent Automated Testing

Automated test execution minimizes human error while improving testing efficiency and repeatability.

Powerful Data Analysis

The integrated software performs real-time data processing and generates comprehensive reports for performance comparison, optimization, and quality control.

Flexible Test Configuration

Supports multiple testing modes and accommodates different motor sizes, joint modules, and actuator specifications.

User-Friendly Operation

An intuitive graphical interface simplifies parameter setup, test execution, result monitoring, and report generation.

Main Test Functions

Torque Performance Testing

Measure continuous torque, peak torque, and load-bearing capability under various operating conditions.

Speed Performance Testing

Evaluate rotational speed characteristics, acceleration performance, and speed stability.

Dynamic Response Testing

Analyze motor response time and motion control performance during rapid load and speed changes.

Efficiency Testing

Monitor electrical input and mechanical output to calculate overall motor efficiency.

Endurance & Reliability Testing

Perform long-duration operation and cyclic loading tests to verify service life and durability.

Positioning Performance Testing

Assess positioning precision, repeatability, and control accuracy for robotic motion applications.

Software & Data Management

The intelligent software platform provides:

• Real-Time Torque Curves

• Speed Monitoring

• Current & Voltage Analysis

• Efficiency Calculations

• Dynamic Response Analysis

• Historical Data Comparison

• Automatic Report Generation

• Data Storage and Export

• Traceable Test Records

Applications

Humanoid Robot Manufacturers

Validation and quality inspection of joint drive modules used in humanoid robots.

Robot Actuator Developers

Performance characterization and optimization of servo actuators and integrated joints.

Industrial Robotics Manufacturers

Testing and verification of robotic drive systems for industrial automation.

Research Institutes & Universities

Robotics research, motion control studies, and actuator development projects.

Quality Assurance Laboratories

Standardized inspection and reliability verification of robotic components.

Product Advantages

Accurate Performance Validation

High-precision sensors accurately reflect motor behavior under real operating conditions.

Increased Testing Efficiency

Automated testing reduces labor requirements and improves repeatability.

Multi-Product Compatibility

Supports a wide range of robot joint motors and actuator configurations.

Intelligent Data Analysis

Transforms raw test data into actionable engineering insights and optimization recommendations.

Reliable Quality Control Solution

Provides consistent and traceable test results for both R&D and production environments.

FAQ

Q1: What products can be tested on this platform?

A: The system is suitable for robotic joint motors, servo actuators, integrated joint modules, humanoid robot actuators, and other rotary drive systems.

Q2: Can different motor sizes be tested?

A: Yes. The test platform supports multiple motor specifications and can be customized with adaptable fixtures.

Q3: Does the system support endurance testing?

A: Yes. Long-term life cycle and durability testing can be performed under programmable load and operating conditions.

Q4: Can test data be exported?

A: Yes. All test data can be stored, analyzed, and exported in report format for quality documentation and engineering analysis.

Q5: Is the system suitable for production quality control?

A: Absolutely. The platform is designed for both research laboratories and high-volume manufacturing inspection applications.

Q6: Can customized test programs be developed?

A: Yes. Customized testing procedures, fixtures, software interfaces, and reporting formats can be developed according to customer requirements.
