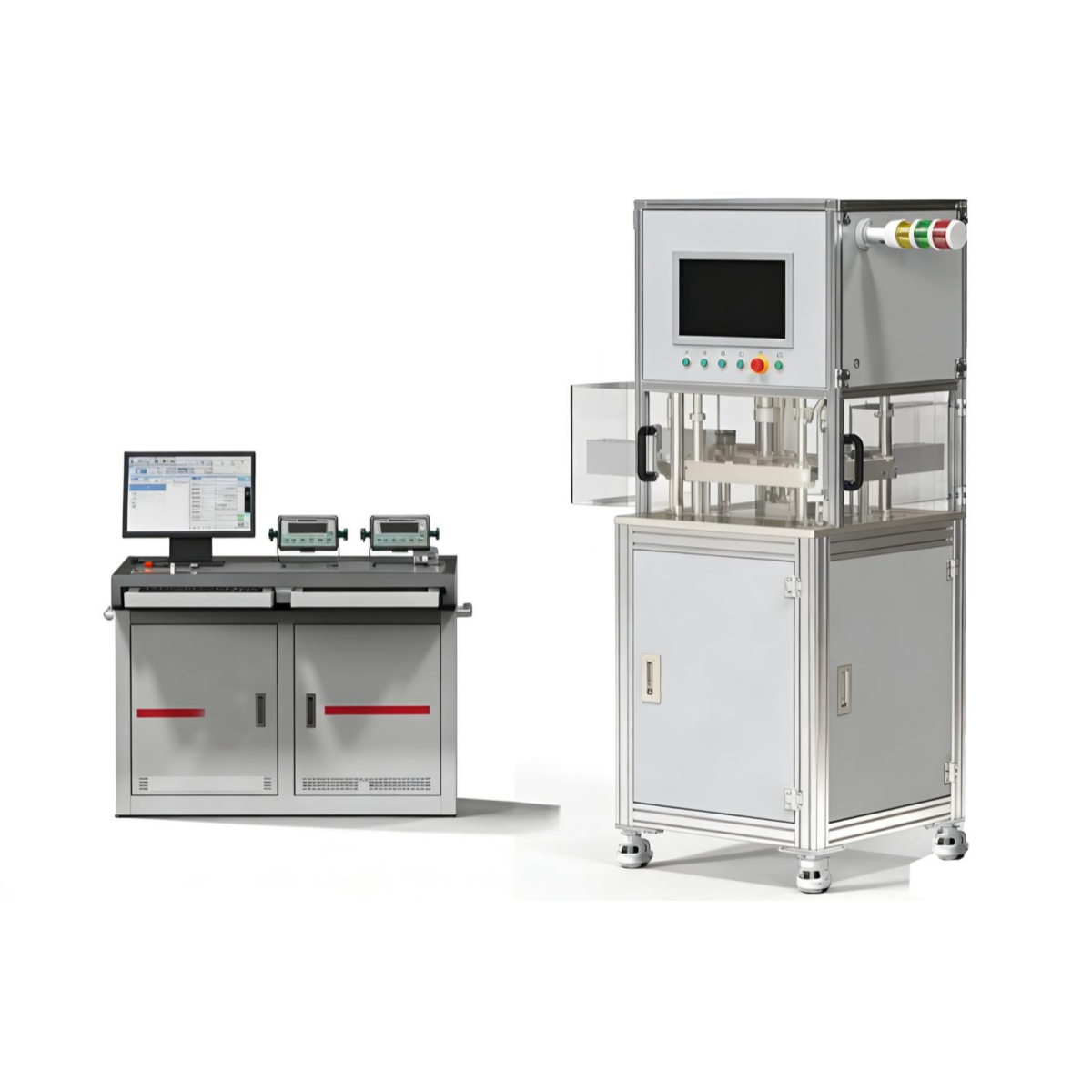

The Microcomputer-Controlled Six-Axis Force Calibration & Verification Test Bench is designed for the calibration, verification, and performance evaluation of six-axis force/torque sensors used in humanoid robots, collaborative robots, industrial automation, aerospace systems, medical robotics, and precision measurement applications.

Designed in accordance with GB/T 43199-2023, the system utilizes servo-controlled loading technology to apply highly accurate forces and torques across multiple axes. It supports both single-axis calibration and combined multi-axis loading, enabling comprehensive validation of sensor performance under real-world operating conditions.

The software automatically performs step loading, load holding, unloading, data acquisition, calibration analysis, and report generation, significantly improving calibration efficiency and repeatability while reducing operator influence.

Key Features & Advantages

High-Precision Multi-Axis Calibration

Capable of accurately applying forces and torques across all six degrees of freedom:

• Force Calibration:

  • Fx (X-axis Force)

  • Fy (Y-axis Force)

  • Fz (Z-axis Force)

• Torque Calibration:

  • Mx (Roll Torque)

  • My (Pitch Torque)

  • Mz (Yaw Torque)

Supports comprehensive sensor characterization and performance verification.

Servo-Controlled Loading System

Advanced servo-driven loading mechanism provides:

• Precise force application

• Stable load holding

• Smooth loading and unloading

• Excellent repeatability

Load holding accuracy reaches 3/100000, ensuring reliable calibration results.

Single-Axis & Multi-Axis Combined Loading

The platform supports:

• Independent force loading

• Independent torque loading

• Combined force loading

• Combined force-torque coupling calibration

This enables simulation of actual robot end-effector and joint operating conditions where multiple loads occur simultaneously.

Automated Calibration Workflow

The software automatically performs:

• Step-by-step loading

• Automatic dwell/holding

• Automatic unloading

• Data recording

• Calibration coefficient calculation

• Error analysis

• Calibration report generation

Reports can be exported for quality documentation and traceability.

Ideal for Robotics & Precision Sensor Manufacturers

Suitable for:

• Humanoid robot developers

• Collaborative robot manufacturers

• Industrial robot suppliers

• Aerospace sensor laboratories

• Research institutes

• National metrology laboratories

• Force sensor manufacturers

• University research centers

Calibration Standard

GB/T 43199-2023

Designed according to:

GB/T 43199-2023 – Calibration Specification for Multi-Axis Force/Torque Sensors

The system supports standardized calibration procedures and traceable measurement verification.

Technical Specifications

FAQ

1. Why is calibration of a six-axis force sensor important?

A six-axis force/torque sensor measures forces and torques simultaneously in multiple directions. Calibration ensures the sensor outputs accurately correspond to applied loads, improving the reliability of robot force control, collision detection, assembly operations, and precision manipulation.

2. What is the purpose of multi-axis combined loading?

In real applications, forces and torques rarely occur independently. For example, a humanoid robot hand may experience gripping force, lateral force, and rotational torque simultaneously.

Multi-axis loading verifies how accurately the sensor performs under these coupled load conditions and evaluates cross-axis interference characteristics.

3. What parameters can be calibrated on this system?

The system can calibrate all six channels of a force-torque sensor:

• Fx (X-direction force)

• Fy (Y-direction force)

• Fz (Z-direction force)

• Mx (Roll torque)

• My (Pitch torque)

• Mz (Yaw torque)

It can also generate calibration matrices and evaluate sensor linearity, repeatability, and coupling errors.

4. How does the automatic calibration process work?

The software automatically performs:

1. Incremental force/torque application

2. Load stabilization and holding

3. Sensor data acquisition

4. Multi-point calibration analysis

5. Automatic unloading

6. Calibration report generation

This eliminates operator variability and improves testing consistency.

5. Which industries commonly use six-axis force sensor calibration systems?

The system is widely used in:

• Humanoid robot development

• Collaborative robots (Cobots)

• Industrial robot end-effectors

• Aerospace force measurement systems

• Medical robotic devices

• Research laboratories

• Force/torque sensor manufacturing

• Automotive testing and automation industries

These applications require highly accurate force measurement to ensure safety, precision, and control performance.
