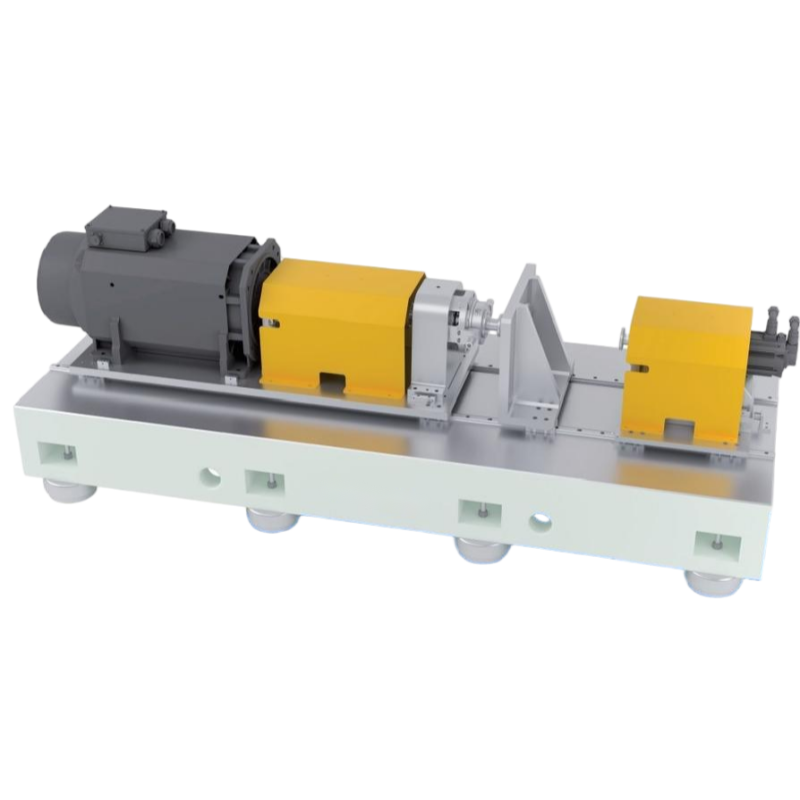

The Harmonic & Planetary Gear Reducer Comprehensive Performance Test Bench is a high-precision testing platform developed for evaluating the mechanical, dynamic, and durability performance of harmonic drives, planetary gearboxes, precision reducers, and robotic transmission systems.

The system integrates a servo drive unit, intelligent control platform, high-precision torque and angle sensors, motion controller, data acquisition system, pneumatic brake system, and dedicated analysis software to perform comprehensive performance validation throughout the entire reducer development and manufacturing process.

With a control cycle as fast as 1 ms and data acquisition rates up to 10 kHz, the platform captures highly detailed dynamic behavior, making it ideal for robotic joints, humanoid robots, industrial automation, aerospace actuators, medical robotics, and precision motion-control applications.

Typical Applications

• Harmonic drives

• Planetary gearboxes

• Precision reducers

• Humanoid robot joints

• Industrial robot actuators

• Collaborative robot drive systems

• Exoskeleton transmission systems

• Aerospace positioning mechanisms

• Servo transmission assemblies

Key Test Functions & Testing Logic

1. No-Load Friction Torque Test

Purpose

Measure internal mechanical resistance when the reducer operates without external load.

Testing Logic

The servo motor rotates the reducer at a specified speed while no output load is applied.

The system continuously measures:

• Input torque

• Rotational speed

• Friction losses

Benefits

• Evaluate transmission smoothness

• Assess lubrication quality

• Detect assembly defects

• Compare reducer efficiency

2. Starting Torque Test

Purpose

Determine the minimum torque required to initiate motion.

Testing Logic

The reducer starts from a stationary condition while torque gradually increases.

The system records:

• Initial breakaway torque

• Starting behavior

• Mechanical resistance

Benefits

• Evaluate startup performance

• Verify low-speed control capability

• Improve robotic motion accuracy

3. Reverse Starting Torque Test

Purpose

Analyze reducer behavior during bidirectional operation.

Testing Logic

The reducer repeatedly switches rotation direction while measuring reverse startup torque.

Benefits

• Essential for robotic joints

• Evaluates direction-switching responsiveness

• Detects internal mechanical asymmetry

4. Transmission Efficiency Test

Purpose

Determine actual power transmission efficiency.

Testing Logic

Input and output torque and speed are measured simultaneously.

Efficiency is calculated as:

η=PoutPin×100%\eta=\frac{P_{out}}{P_{in}}\times100\%η=Pin​Pout​​×100%

Benefits

• Identify power losses

• Optimize reducer design

• Improve robot energy efficiency

5. Overload Capacity Test

Purpose

Verify gearbox reliability under extreme loading conditions.

Testing Logic

The system gradually increases load torque beyond rated values while monitoring:

• Torque

• Temperature

• Vibration

• Mechanical stability

Benefits

• Determine safety margins

• Validate structural strength

• Prevent field failures

6. Backlash & Hysteresis Curve Test

Purpose

Measure mechanical clearance and transmission hysteresis.

Testing Logic

The reducer is driven alternately in clockwise and counterclockwise directions.

Angular displacement differences are measured using high-resolution encoders.

Benefits

• Critical for humanoid robots

• Improves positioning precision

• Evaluates gear meshing quality

7. Torsional Stiffness Test

Purpose

Measure gearbox resistance to torsional deformation.

Testing Logic

Controlled torque is applied while angular deformation is recorded.

Torsional stiffness is calculated from torque-angle relationships.

Benefits

• Enhances robot control accuracy

• Improves dynamic stability

• Evaluates structural rigidity

8. Transmission Error Test

Purpose

Evaluate rotational accuracy.

Testing Logic

High-precision angle sensors compare theoretical and actual output positions throughout rotation.

Benefits

• Quantifies motion accuracy

• Detects gear manufacturing deviations

• Improves servo control performance

9. Life Cycle Endurance Test

Purpose

Assess long-term durability.

Testing Logic

The reducer operates continuously under programmed speed and load cycles.

The system records:

• Torque drift

• Efficiency changes

• Temperature variation

• Wear-related performance degradation

Benefits

• Predict service life

• Validate reliability

• Support product qualification

10. Noise & Vibration Analysis

Purpose

Evaluate operational smoothness and NVH performance.

Testing Logic

Noise sensors and vibration sensors monitor dynamic behavior throughout operation.

Benefits

• Detect bearing defects

• Identify gear mesh issues

• Improve user experience and reliability

11. Temperature Rise Test

Purpose

Evaluate thermal performance under sustained operation.

Testing Logic

The reducer runs continuously under defined loads while temperature sensors monitor thermal behavior.

Benefits

• Verify thermal stability

• Assess lubrication performance

• Prevent overheating failures

12. Bending Stiffness Test

Purpose

Evaluate structural resistance to external bending forces.

Testing Logic

Controlled radial loads are applied while deformation is measured.

Benefits

• Validate housing rigidity

• Improve robot joint durability

• Assess structural integrity

Core Technical Advantages

Modular Testing Architecture

The platform can be freely configured for different test objectives, allowing rapid switching between performance, durability, accuracy, and NVH evaluations.

High-Speed Real-Time Control

• Control cycle up to 1 ms

• Data acquisition frequency up to 10 kHz

Suitable for dynamic performance analysis and advanced robotic transmission research.

Custom Testing Software

Supports:

• Automatic testing

• Manual testing

• Real-time monitoring

• Curve analysis

• Automated report generation

Technical Specifications

FAQ

Q1: Why are harmonic drives and planetary gearboxes tested differently from ordinary reducers?

Precision reducers used in robots require extremely low backlash, high positioning accuracy, and superior torsional stiffness. Conventional gearbox testing often cannot achieve the measurement precision required for robotic applications.

Q2: What is the purpose of backlash testing?

Backlash testing measures the angular clearance between transmission components. Excessive backlash can reduce robot positioning accuracy, increase vibration, and negatively affect motion control performance.

Q3: Why is torsional stiffness important for humanoid robots?

Higher torsional stiffness allows robot joints to respond more accurately to control commands while minimizing deformation under load, improving balance, walking stability, and motion precision.

Q4: How does the transmission error test help improve product quality?

Transmission error testing identifies deviations between theoretical and actual motion. Lower transmission error results in smoother movement, reduced vibration, and better servo control accuracy.

Q5: What is the advantage of a 10 kHz data acquisition rate?

A high sampling rate captures rapid transient events such as vibration spikes, startup impacts, torque fluctuations, and dynamic load changes that may be missed by conventional testing systems.

Q6: Can this system be used for humanoid robot joint development?

Yes. The platform is specifically well-suited for harmonic drives, planetary reducers, and integrated robot joint transmission systems used in humanoid robots, collaborative robots, service robots, and industrial robotic arms.

Q7: Can the test bench generate automated reports for certification and quality control?

Yes. The software automatically records all test data and can generate customizable reports in Excel, Word, and PDF formats, supporting R&D validation, production quality control, supplier audits, and certification testing.
