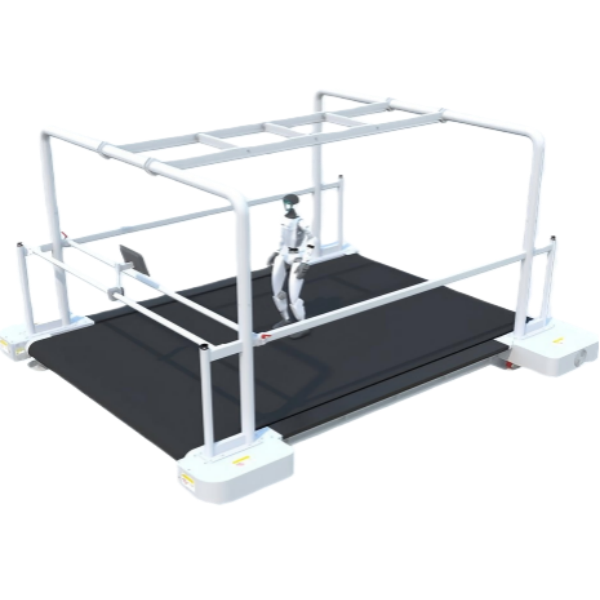

The Large-Scale Robot Testing Bench is a high-performance robotic mobility testing platform engineered for humanoid robots, biped robots, quadruped robots, exoskeleton systems, and advanced robotic locomotion research.

Featuring a 4.5 m × 3 m extra-large treadmill area, ±15° bidirectional incline simulation, and 0–40 km/h speed range, the platform enables engineers to evaluate robot walking, running, climbing, balance control, endurance, energy consumption, and motion stability under highly repeatable laboratory conditions.

Designed for robotics manufacturers, AI laboratories, universities, research institutes, and autonomous mobility developers, the system combines industrial-grade reliability with comprehensive safety protection for long-duration testing and algorithm validation.

Key Features & Advantages

1. Bidirectional Slope Simulation for Complex Terrain Testing

The platform supports incline adjustment from -15° to +15°, allowing engineers to simulate:

• Uphill locomotion

• Downhill descent control

• Uneven terrain adaptation

• Dynamic balance recovery

• Drive system load variation

Testing Objective:
Evaluate robot stability, traction performance, actuator efficiency, and gait adaptability across different terrain conditions.

2. High-Speed Dynamic Motion Testing

With a speed range of 0–40 km/h, the system covers:

• Low-speed precision walking

• Human-like gait validation

• Jogging and running tests

• High-speed mobility evaluation

• Emergency maneuver verification

Testing Objective:
Measure robot performance across the entire operational speed envelope while ensuring repeatable testing conditions.

3. Extra-Large Test Area

The generous 4.5 m × 3 m running surface accommodates:

• Full-size humanoid robots

• Heavy robotic platforms

• Exoskeleton systems

• Biomimetic robots

• Multi-legged robotic systems

Maximum load capacity:

• 230 kg

Testing Objective:
Support testing of larger robots without motion restrictions.

4. Real-Time Motion Data Acquisition

The integrated 15.6-inch touchscreen displays:

• Speed

• Incline angle

• Distance

• Running time

• Heart-rate data (for human-assisted testing)

The system records:

• Speed curves

• Incline curves

• Physiological monitoring curves

Up to 4 hours of continuous data logging.

Testing Objective:
Provide quantitative data for robot control optimization, AI training, and performance validation.

5. Industrial Automation Integration

The testing bench supports:

• Servo motor control

• Automated test execution

• Remote control operation

• Robotics R&D integration

• Customized software interfaces

Suitable for:

• AI locomotion algorithm training

• Reinforcement learning experiments

• Autonomous navigation validation

• Robot certification preparation

6. Multi-Layer Safety Protection

Safety features include:

• Four emergency stop switches

• Dual remote-control emergency stop

• Safety rails and guard structures

• Robot safety harness compatibility

• Industrial electrical protection architecture

Testing Objective:
Protect expensive robotic prototypes while ensuring operator safety during dynamic testing.

Typical Applications

Humanoid Robot Testing

• Walking stability

• Running performance

• Balance recovery

• Terrain adaptation

• Fall prevention algorithm validation

Quadruped Robot Testing

• Dynamic gait optimization

• Slope traversal

• High-speed locomotion

• Endurance testing

Exoskeleton Systems

• Assisted walking evaluation

• Rehabilitation research

• Load-bearing validation

Robotics Research

• Motion control development

• AI training and validation

• Reinforcement learning testing

• Energy efficiency studies

Technical Specifications

FAQ

Q1: Why does a humanoid robot need treadmill testing instead of field testing?

Field testing is important, but environmental variables often make results difficult to reproduce. A robot testing treadmill provides controlled and repeatable conditions for evaluating gait stability, balance algorithms, locomotion efficiency, and motion control performance before deployment in real-world environments.

Q2: What is the purpose of bidirectional incline testing?

The -15° to +15° incline simulation allows engineers to evaluate how a robot responds to uphill and downhill conditions. This helps verify actuator output, braking strategies, balance control algorithms, energy consumption, and foot-ground interaction under varying terrain loads.

Q3: What performance indicators can be measured during testing?

The system can monitor and record:

• Walking/running speed

• Distance traveled

• Incline angle

• Endurance duration

• Motion stability

• Gait consistency

• Dynamic balance behavior

• Energy efficiency trends

These datasets are critical for robot control system optimization.

Q4: Can this platform support AI and reinforcement learning development?

Yes. The platform provides a repeatable training environment that is ideal for:

• Reinforcement learning

• Robot motion planning

• Autonomous navigation development

• Dynamic balance training

• Human-like gait generation

The stable testing conditions improve algorithm validation efficiency and reduce development cycles.

Q5: How does the safety system protect expensive robot prototypes?

The platform integrates multiple safety layers including:

• Four physical emergency stop switches

• Dual remote emergency stop controls

• Safety rail structures

• Harness compatibility

• Industrial electrical protection

These measures help prevent prototype damage during unexpected falls, software faults, or extreme testing conditions.

Q6: Which customers typically use this robot testing bench?

Typical users include:

• Humanoid robot manufacturers

• Robotics startups

• AI robotics companies

• University robotics laboratories

• Government research institutes

• Autonomous mobility developers

• Exoskeleton manufacturers

• Industrial robot R&D centers

The platform is particularly suitable for organizations developing next-generation humanoid robots and advanced locomotion systems.
