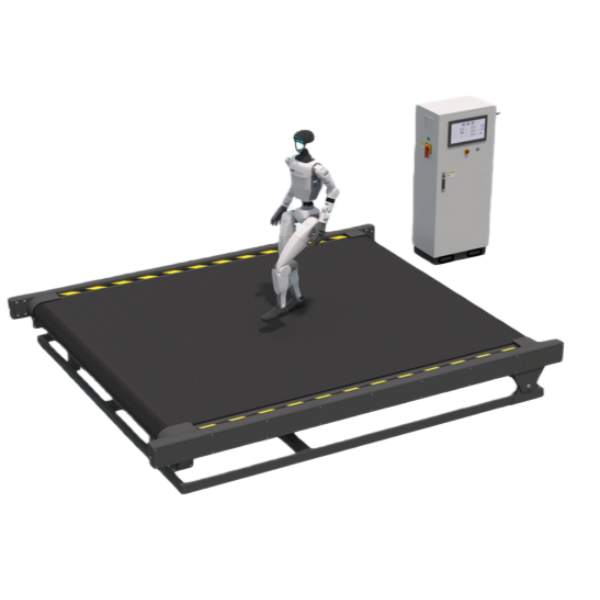

The Humanoid Robot Test Bench is a high-precision mobility validation platform developed for humanoid robot manufacturers, robotics research institutes, AI laboratories, universities, and automation developers.

The system combines precision speed control, programmable incline simulation, automated data acquisition, and industrial communication interfaces into a compact and highly stable testing environment. It enables engineers to evaluate robot locomotion performance, gait stability, balance control, motion algorithms, energy consumption, and terrain adaptability under repeatable laboratory conditions.

Designed specifically for next-generation humanoid robots, the platform supports the complete development cycle from prototype verification and control algorithm optimization to product validation and reliability testing.

Key Testing Functions & Testing Logic

1. Walking Stability Test

Testing Logic

The robot walks continuously on the moving test surface while speed remains precisely controlled.

Engineers monitor:

• Walking posture

• Center of gravity stability

• Step consistency

• Balance correction behavior

• Fall recovery capability

Purpose

To verify whether the humanoid robot can maintain stable locomotion during continuous operation and identify control-system weaknesses before real-world deployment.

2. Incline Walking Performance Test

Testing Logic

The platform inclination can be adjusted from:

0° to 20°

while maintaining controlled walking speed.

The robot must continuously adapt its:

• Joint torque output

• Body posture

• Foot placement strategy

• Dynamic balance control

Purpose

To evaluate terrain adaptability and climbing performance under realistic operating conditions.

This is particularly important for:

• Service robots

• Industrial inspection robots

• Logistics robots

• Military and emergency-response robots

3. Gait Algorithm Validation

Testing Logic

Different locomotion algorithms can be executed repeatedly under identical speed and incline conditions.

Performance indicators include:

• Step frequency

• Stability margin

• Trajectory tracking

• Energy efficiency

Purpose

To compare and optimize walking-control algorithms using repeatable and quantifiable test conditions.

4. Endurance & Reliability Testing

Testing Logic

The robot performs extended-duration walking cycles at predefined speeds and slopes.

The system records:

• Running time

• Walking distance

• Speed consistency

• Fault events

Purpose

To identify:

• Mechanical wear

• Joint overheating

• Sensor drift

• Actuator degradation

• Long-term control instability

5. AI Motion Model Training & Validation

Testing Logic

The test bench provides a controlled environment where AI models can repeatedly perform motion tasks under identical conditions.

Purpose

To generate high-quality training and validation data for:

• Reinforcement learning

• Motion planning

• Dynamic balancing

• Autonomous navigation

Core Advantages

High-Precision Incline Simulation

• Electric incline adjustment

• Range: 0°–20°

• Smooth and repeatable control

Enables realistic simulation of:

• Slopes

• Ramps

• Uneven terrain conditions

Research-Level Speed Control

• Speed range: 0–5.0 km/h

• Accuracy: ±0.01 m/s

Suitable for:

• Slow-walking robots

• Human-like gait studies

• Precision locomotion research

Industrial Automation Ready

Integrated:

• Ethernet communication

• Touchscreen control

• Remote operation

Supports direct integration into:

• Automated testing systems

• Robotics laboratories

• AI training environments

Compact Low-Profile Design

Compared with conventional large robotic test tracks, the platform features:

• Low center of gravity

• Easier installation

• Better operator visibility

• Reduced laboratory space requirements

Heavy-Duty Construction

• Approximate system weight: 1500 kg

• Servo-driven motion system

• Long-term continuous operation capability

Designed for intensive research and development use.

Technical Specifications

FAQ

Q1: Why use a humanoid robot test bench instead of direct floor testing?

Floor testing often introduces environmental variations that make results difficult to reproduce. A robot test bench provides controlled speed, slope, and operating conditions, allowing engineers to obtain repeatable data and accurately compare algorithm performance.

Q2: What is the purpose of incline simulation testing?

Incline testing evaluates how a humanoid robot adapts to changes in terrain. By increasing the slope angle, engineers can analyze joint torque requirements, balance control effectiveness, gait stability, and climbing performance.

Q3: Can the platform be used for AI training and reinforcement learning?

Yes. The platform is highly suitable for reinforcement learning and motion-control development because it provides repeatable testing conditions that generate consistent training and validation datasets for AI models.

Q4: What data can be collected during testing?

Depending on the robot's onboard sensors and software integration, users can collect:

• Walking speed

• Travel distance

• Gait cycles

• Joint positions

• Motor torque

• Power consumption

• Balance correction events

• Fall detection information

The platform serves as a controlled environment for gathering reliable locomotion data.

Q5: Who are the typical users of this system?

The Humanoid Robot Test Bench is ideal for:

• Humanoid robot manufacturers

• Robotics startups

• AI development companies

• University robotics laboratories

• Research institutes

• Automation equipment developers

• Military and industrial robotics programs
