Designed for Extreme Slope Mobility Validation

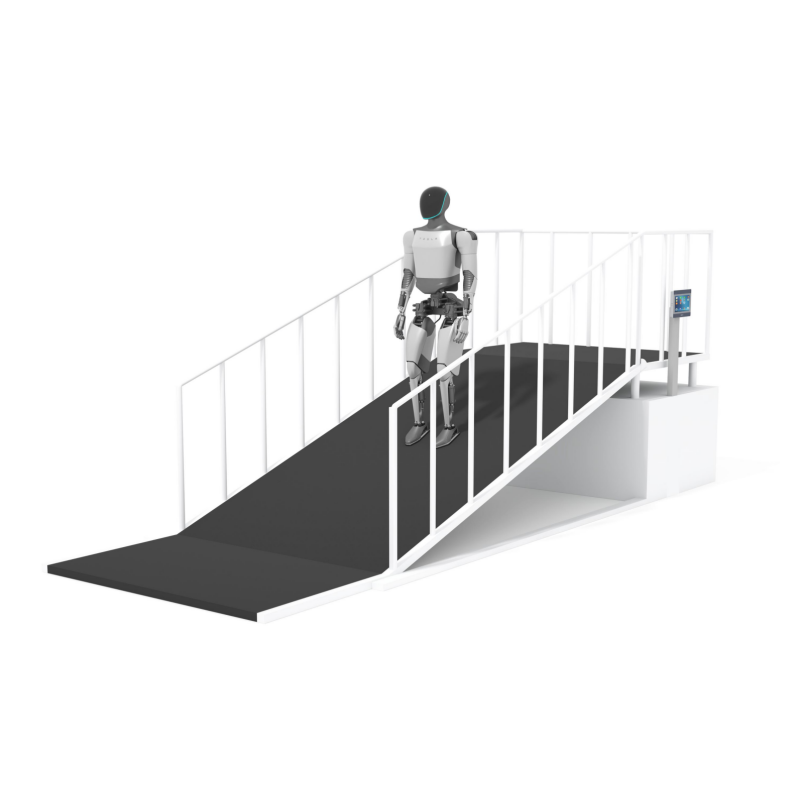

The High-Incline Robot Testing Platform is specifically developed for evaluating the climbing capability, balance control, traction performance, and terrain adaptability of humanoid robots and advanced robotic mobility systems.
Unlike conventional robot treadmills that focus on walking and running performance, this platform is engineered to simulate steep slopes ranging from 20° to 30°, enabling developers to challenge robotic locomotion systems under extreme terrain conditions.
The system provides a safe, repeatable, and highly controlled environment for validating robotic performance before deployment in real-world industrial, logistics, rescue, defense, and outdoor applications.
Key Features
Extreme Incline Simulation
Incline range:
Adjustment accuracy:
This exceeds the capability of most conventional robotic testing platforms.
Testing Objective
Evaluate:
High-Precision Incline Control
The platform combines:
Real-time slope monitoring ensures accurate and repeatable testing conditions.
Testing Objective
Provide consistent terrain conditions for performance comparison and algorithm validation.
High-Traction Surface Design
The entire running surface is covered with:
Industrial-grade rubber
Anti-slip texture
High-friction material
Testing Objective
Minimize platform-induced slippage and allow engineers to evaluate the robot’s true traction performance.
Flexible Remote Operation
Control options include:
Testing Objective
Enable safe operation while engineers observe robot behavior from different locations around the test area.
Compact Industrial Design
Platform size:
Suitable for:
Humanoid robots
Biped robots
Exoskeleton systems
Research prototypes
The compact footprint allows installation in most robotics laboratories and development centers.
Industrial Reliability
Features include:
Servo motor drive
AC220V industrial power supply
Corrosion-resistant frame construction
Wear-resistant surface treatment
Designed for continuous research and development environments.
Typical Applications
Humanoid Robot Development
Logistics Robotics
Outdoor Mobile Robots
Defense & Rescue Robotics
Exoskeleton Systems
Technical Specifications
Item | Specification |
Platform Size | 5 m × 1.8 m × 2.6 m |
Incline Range | 20°–30° |
Incline Accuracy | ±0.1° |
Maximum Load Capacity | ≥100 kg |
Drive System | Servo Motor |
Power Consumption | <5 kW |
Power Supply | AC220V |
Control Method | Touchscreen + Dual Remote Controls |
Angle Display | Mechanical Scale + Digital Display |
Surface Material | Anti-Slip High-Friction Rubber |
Frame Finish | Black Sand Texture Coating |
FAQ
Q1: Why test robots on slopes as steep as 30°?
Most real-world environments are not flat. Industrial facilities, ramps, outdoor terrain, and disaster zones often involve steep gradients. Testing at up to 30° helps verify whether the robot can maintain stability, traction, and mobility under extreme conditions.
Q2: What is the testing logic behind incline validation?
As the slope increases, the robot's center of gravity shifts and motor torque demand rises significantly. The test evaluates how effectively the robot maintains balance, generates traction, compensates for posture changes, and prevents slipping or tipping.
Q3: Why is incline accuracy important?
A deviation of even 1° can noticeably affect motor load, power consumption, and balance performance. The ±0.1° accuracy ensures repeatable test conditions, making results reliable for R&D comparisons and performance benchmarking.
Q4: Why use a high-friction rubber surface?
The purpose is to isolate robot performance from surface limitations. A high-friction surface allows engineers to evaluate the robot's actual climbing and traction capability without interference from platform-induced slipping.
This platform is particularly valuable for:
where slope-climbing capability and balance control are critical performance indicators.
