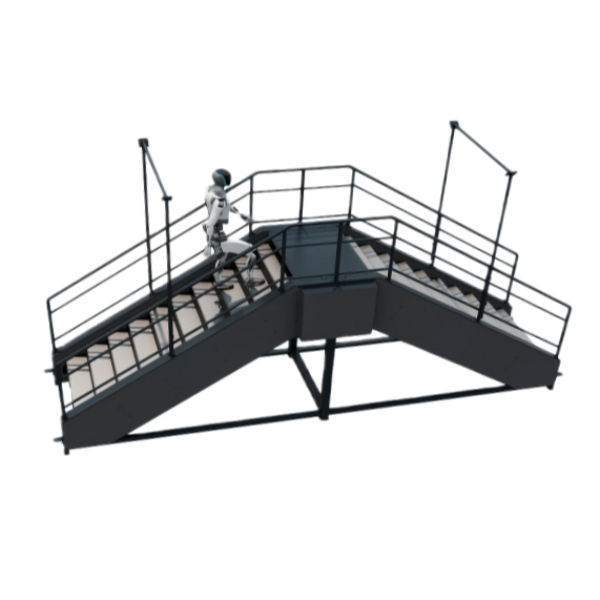

The Robot Stair Climbing Test Platform is a specialized testing and training system developed to evaluate the stair-climbing capability, gait coordination, balance control, load-carrying performance, and long-duration mobility of humanoid robots and legged robotic systems.

By reproducing real-world staircase environments in a controlled laboratory setting, the platform enables engineers to validate robot locomotion algorithms, optimize motion control systems, and assess mechanical durability under repetitive stair-climbing conditions.

The system is ideal for:

• Humanoid robot manufacturers

• Robotics research institutes

• AI locomotion development teams

• Service robot developers

• Defense and industrial robotics laboratories

• Universities and robotics innovation centers

Key Features & Testing Logic

1. Stair Climbing Stability Evaluation

The platform continuously simulates stair ascent and descent movements to evaluate robot stability during multi-step climbing operations.

Testing Purpose:

• Verify center-of-gravity control

• Assess dynamic balance performance

• Detect foot placement errors

• Validate stair-climbing algorithms

Benefits:

• Reduce fall risk

• Improve motion planning accuracy

• Accelerate robot mobility development

2. Gait Coordination Verification

The moving stair mechanism creates repetitive climbing scenarios that allow engineers to evaluate synchronization between legs, joints, sensors, and control systems.

Testing Purpose:

• Analyze gait consistency

• Validate walking rhythm

• Improve joint coordination

• Optimize locomotion control software

3. Endurance and Continuous Operation Testing

The platform supports long-duration climbing cycles to evaluate robot performance under sustained workloads.

Testing Purpose:

• Assess motor endurance

• Evaluate gearbox durability

• Monitor thermal behavior

• Validate battery consumption during stair operations

Applications:

• Commercial service robots

• Inspection robots

• Industrial mobility platforms

• Search-and-rescue robots

4. Load-Bearing Capability Assessment

Additional payloads can be applied during testing to evaluate stair-climbing performance under realistic working conditions.

Testing Purpose:

• Verify actuator torque reserve

• Evaluate climbing efficiency with payloads

• Measure balance performance under load

5. Repeatable Standardized Testing

The system allows users to preset the total number of stair steps. The platform automatically stops once the programmed cycle is completed.

Testing Purpose:

• Ensure test repeatability

• Support benchmark comparisons

• Generate consistent R&D data

Industrial-Grade Mechanical Design

Heavy-Duty Structural Frame

The main structure is fabricated from industrial-grade 50×100 mm rectangular steel tubing, providing exceptional rigidity and long-term stability.

Aluminum Alloy Stair Construction

The stair steps are manufactured from high-strength aluminum alloy, offering:

• Corrosion resistance

• Wear resistance

• Lightweight structure

• Long service life

Intelligent Control System

Real-Time Monitoring

The display interface continuously shows:

• Running time

• Travel distance

• Stair count

• Operating status

Programmable Testing

Users can easily define:

• Total stair cycles

• Test duration

• Running speed

The system automatically executes the test and stops upon completion.

Adjustable Speed Simulation

Powered by a 1 kW servo motor with chain-and-sprocket transmission.

Speed Range

0–68 m/min continuously adjustable

This allows simulation of:

• Slow climbing

• Normal walking pace

• High-frequency stair negotiation

for different robot development stages.

Technical Specifications

FAQ

Q1: Why is stair-climbing testing important for humanoid robots?

Stair negotiation is one of the most challenging mobility tasks for humanoid robots because it requires simultaneous balance control, joint coordination, force distribution, and real-time perception. This platform helps engineers validate whether a robot can safely and consistently navigate multi-level environments.

Q2: What data can be collected during stair-climbing tests?

The system records key operational parameters such as running time, climbing distance, stair cycles, speed, and test completion status. Additional external sensors can be integrated for force, torque, temperature, and motion analysis if required.

Q3: How does the platform evaluate robot endurance?

By running thousands of repeated stair-climbing cycles, the platform subjects motors, reducers, joints, and control systems to long-term operational stress. Engineers can identify wear trends, overheating issues, and reliability concerns before deployment.

Q4: Can the platform test robots carrying payloads?

Yes. The platform is designed to evaluate stair-climbing performance under loaded conditions, helping engineers determine how additional payload weight affects balance, climbing efficiency, motor torque demand, and energy consumption.

Q5: What types of robots can use this stair-climbing test platform?

The system is suitable for:

• Humanoid robots

• Bipedal robots

• Service robots

• Inspection robots

• AI mobility platforms

• Research and educational robotic systems

The speed and test parameters can be adjusted to accommodate different robot sizes and performance levels.

Typical Applications

• Humanoid Robot Development

• Robot Mobility Algorithm Validation

• Stair Climbing Performance Evaluation

• Dynamic Balance Research

• Robot Durability Testing

• AI Motion Control Optimization

• Autonomous Navigation Validation

• Industrial and Service Robot Certification Testing
