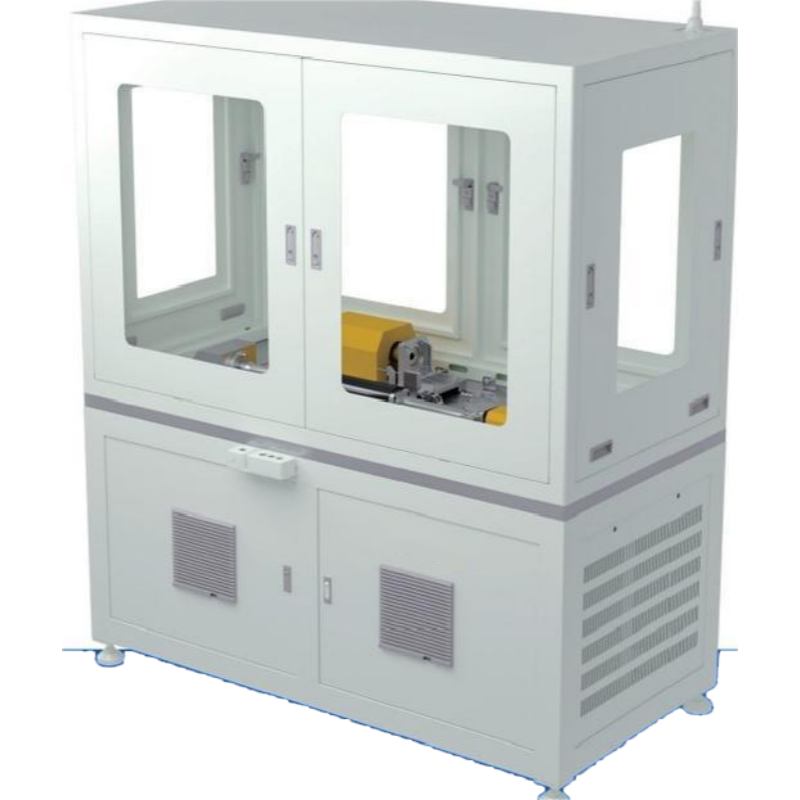

The Linear Joint Module Test Bench is a comprehensive testing system specifically developed for evaluating the performance, reliability, and service life of linear actuators and linear joint modules used in humanoid robots, industrial automation equipment, collaborative robots, AGVs, medical devices, and intelligent manufacturing systems.
The system provides a complete testing solution covering stroke accuracy, thrust force, response speed, electrical performance, temperature rise, and endurance life testing. Through automated control and real-time data acquisition, engineers can accurately monitor actuator behavior throughout the entire operating cycle, enabling product optimization, quality verification, and reliability assessment.
Its modular fixture design supports a wide range of actuator sizes and specifications, making it an ideal platform for both R&D laboratories and production quality control environments.
Key Features & Advantages
A single platform can evaluate multiple critical actuator parameters, including:
This significantly reduces testing equipment investment while improving efficiency.
High-Precision Measurement
Equipped with industrial-grade sensors and advanced data acquisition systems, the platform delivers highly accurate and repeatable results for actuator performance verification.
Measurement Capabilities:
Parameter | Range |
Voltage | 0–60 V |
Current | 0–100 A |
Force | 0–20,000 N |
Displacement | -100 mm to +100 mm |
Speed | Up to 500 mm/s |
Temperature | -20°C to 300°C |
Automated Testing Workflow
The system automatically executes predefined test procedures, records measurement data, generates performance curves, and stores results for traceability and analysis.
Benefits include:
Reduced operator intervention
Improved testing consistency
Increased throughput
Standardized quality verification
Wide Compatibility
The flexible fixture system accommodates various:
Electric linear actuators
Ball screw actuators
Rod-type actuators
Belt-driven linear modules
Robot linear joints
Industrial servo actuators
Custom fixtures can be provided for special actuator designs.
Real-Time Data Analysis
All test data can be monitored and analyzed in real time, including:
Force-displacement curves
Speed-position curves
Current-force relationships
Temperature rise trends
Long-term durability performance
The software supports report generation and export for engineering documentation.
Typical Test Functions
Stroke Accuracy Test
Measures the actuator's actual travel against the commanded displacement to verify positioning accuracy and motion consistency.
Purpose:
Ensure the actuator achieves precise positioning required for robotics and automation applications.
Output Force Test
Applies controlled resistance and measures the maximum thrust or pull force generated by the actuator.
Purpose:
Validate load-bearing capability and actuator sizing requirements.
Response Speed Test
Measures acceleration, deceleration, and motion response time under different operating conditions.
Purpose:
Evaluate dynamic performance for high-speed motion control applications.
Monitors voltage, current, and power consumption during operation.
Purpose:
Assess efficiency and detect abnormal electrical behavior.
Temperature Rise Test
Tracks temperature changes during continuous operation or under heavy load conditions.
Purpose:
Verify thermal stability and motor protection performance.
Durability & Life Cycle Test
Performs long-term cyclic operation to simulate real-world usage conditions.
Purpose:
Evaluate wear characteristics, reliability, and expected service life.
Applications
Humanoid robot linear joints
Service robots
Industrial robots
Collaborative robots (Cobots)
Automated production equipment
Medical automation systems
Electric actuators
Smart manufacturing equipment
Aerospace positioning systems
Research laboratories and testing centers
Compliance & Reference Standards
The test platform can be configured to support international testing methodologies and customer-specific requirements, including:
ISO 9283 – Robot Performance Testing
ISO 10218 – Industrial Robot Safety
IEC 60068 – Environmental & Reliability Testing
IEC 60529 – Protection and Reliability Verification
Internal OEM Validation Standards
Custom R&D Test Procedures
FAQ
1. What is the purpose of stroke accuracy testing?
Stroke accuracy testing compares commanded travel with actual actuator displacement to verify positioning precision and repeatability. This is particularly important for robotics, automation, and precision assembly applications.
2. Why is force testing important for linear actuators?
Force testing determines whether the actuator can reliably deliver the required thrust or pulling force under load conditions. It helps validate design performance and prevents underpowered actuator selection.
3. How does durability testing evaluate actuator reliability?
The actuator is continuously cycled through predefined motion profiles while key parameters such as force, speed, current, and temperature are monitored. Performance degradation or failures can then be identified before deployment.
4. Can the system test different actuator models and sizes?
Yes. The modular fixture design allows quick adaptation to different actuator lengths, mounting configurations, and force ratings. Custom fixtures are also available for specialized applications.
5. What data can be collected during testing?
The system can record:
Voltage
Current
Force
Displacement
Speed
Temperature
Cycle count
Performance curves
Durability trends
All data can be exported for further analysis, certification reports, and product development documentation.
6. Is this test bench suitable for humanoid robot joint development?
Absolutely. The platform is particularly suitable for testing linear actuators used in humanoid robot legs, arms, waist mechanisms, and auxiliary motion systems, providing critical data for motion control optimization and reliability validation.
