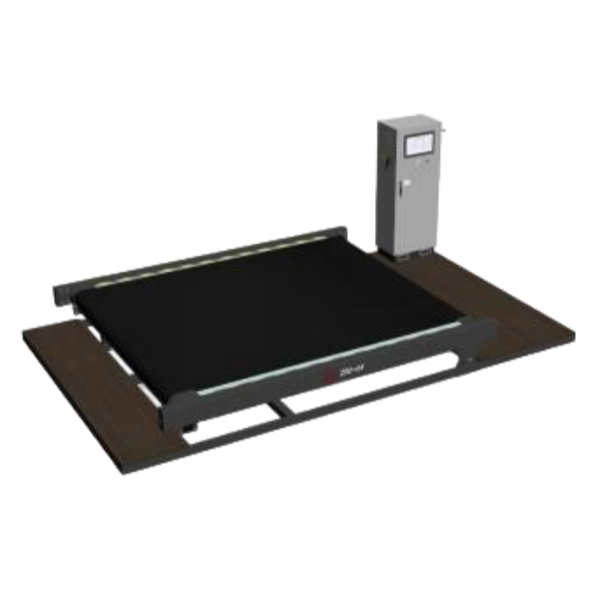

Robot Testing Treadmill | High-Speed Humanoid Robot Dynamic Performance & Locomotion Validation Platform

The Large-Scale Robot Testing Treadmill is a professional dynamic testing platform designed for evaluating the locomotion performance, stability, endurance, and control algorithms of humanoid robots, biped robots, quadruped robots, exoskeletons, and other intelligent mobile robotic systems.

Featuring a 3m × 2.5m oversized running area, 20° incline simulation, and speeds up to 11.12 m/s (40 km/h), the platform enables engineers to conduct realistic walking, running, endurance, slope-climbing, and AI motion control validation under repeatable laboratory conditions.

Built with industrial-grade servo drive technology and high-speed communication architecture, the system provides precise speed control, real-time monitoring, and seamless integration with robot control systems for advanced R&D and performance verification.

Key Features & Advantages

Extra-Large Testing Area

The spacious running surface provides sufficient room for:

• Humanoid robots

• Biped robots

• Quadruped robots

• Mobile robotic platforms

• Exoskeleton systems

• AI locomotion research

Running Area: 3000 × 2500 mm

This allows natural gait testing without restricting movement.

High-Speed Dynamic Testing

The servo-driven platform supports:

• Walking tests

• Jogging tests

• Running tests

• Sprint simulations

• Dynamic balance validation

Speed Range: 0–11.12 m/s (0–40 km/h)

Speed Accuracy: ±0.01 m/s

This makes the system suitable for both low-speed precision studies and high-speed robotic locomotion development.

Incline & Terrain Simulation

The integrated incline adjustment mechanism enables realistic terrain simulation.

Incline Range: 0°–20°

Engineers can evaluate:

• Uphill locomotion

• Load adaptation

• Energy consumption

• Balance control under varying slopes

Industrial-Grade Precision Control

The treadmill is powered by a servo motor with closed-loop speed feedback, ensuring:

• Stable operation

• Accurate speed regulation

• Fast response

• High repeatability

Communication cycle time reaches 2 ms, enabling synchronization with advanced robotic control systems.

Heavy-Duty Load Capacity

The reinforced structural frame supports:

Maximum Load Capacity: >300 kg

Suitable for:

• Full-size humanoid robots

• Industrial robotic platforms

• Multi-sensor testing systems

• Heavy robotic prototypes

Long-Duration Reliability Testing

The platform supports continuous operation for endurance verification and long-term reliability studies.

Continuous Running Time: >1 hour

Ideal for:

• Endurance testing

• Battery consumption studies

• Long-distance locomotion evaluation

• Autonomous navigation validation

Technical Specifications

Typical Testing Applications

Humanoid Robot Walking Test

Evaluates walking stability and gait performance under controlled speed conditions.

Testing Logic:

The treadmill provides a constant moving surface while the robot continuously adjusts balance and foot placement.

Purpose:

Validate locomotion algorithms and walking performance.

Dynamic Running Performance Test

Measures robot behavior at medium and high speeds.

Testing Logic:

The robot is gradually accelerated across various speed ranges while monitoring posture stability and motion coordination.

Purpose:

Assess high-speed mobility capabilities and control robustness.

Incline Climbing Test

Simulates uphill terrain by adjusting treadmill inclination.

Testing Logic:

The robot maintains stable movement while compensating for gravitational load changes.

Purpose:

Evaluate climbing capability, actuator performance, and energy efficiency.

Endurance & Reliability Test

Allows robots to operate continuously for extended periods.

Testing Logic:

The system runs predefined speed profiles for long durations while monitoring operational consistency.

Purpose:

Identify wear, overheating, and long-term reliability issues.

AI Motion Control Validation

Supports machine learning and reinforcement learning development.

Testing Logic:

Robots repeatedly perform locomotion tasks while collecting real-time motion and control data.

Purpose:

Accelerate training and optimization of AI locomotion models.

Applications

Humanoid Robot Development

• Walking algorithm validation

• Running performance testing

• Balance control optimization

• Mobility benchmarking

Quadruped Robotics

• Dynamic gait development

• Stability verification

• Terrain adaptation studies

Exoskeleton Systems

• Human-assist device testing

• Rehabilitation research

• Motion assistance validation

Research Institutions & Universities

• Robotics research

• AI locomotion development

• Biomechanics studies

Commercial Robot Manufacturers

• Product development

• Quality validation

• Reliability testing

• Certification preparation

FAQ

1. Why use a treadmill instead of floor-based robot testing?

A treadmill allows long-duration, repeatable locomotion testing within a compact laboratory space while maintaining consistent environmental conditions and test parameters.

2. What is the purpose of incline testing?

Incline testing simulates uphill terrain and evaluates a robot's ability to maintain stability, generate sufficient drive force, and manage increased energy consumption.

3. Why is speed accuracy important for robot testing?

Precise speed control ensures repeatable test conditions, making it easier to compare different robot versions, control algorithms, and mechanical designs.

4. Can this platform be used for AI and reinforcement learning research?

Yes. The high-speed communication architecture and precise motion control make it suitable for reinforcement learning, autonomous locomotion development, and real-time robot control research.

5. What types of robots can be tested?

The platform is suitable for:

• Humanoid robots

• Biped robots

• Quadruped robots

• Exoskeleton systems

• Mobile robotic platforms

• Service robots

• Research prototypes

6. How does the system evaluate robot endurance?

The robot operates continuously under predefined speed and incline conditions while the system monitors locomotion stability, power consumption, thermal behavior, and overall reliability over extended periods.

7. What makes this platform different from standard commercial treadmills?

Unlike fitness treadmills, this industrial testing platform offers:

• Ultra-large testing area

• Heavy-duty load capacity (>300 kg)

• 20° incline simulation

• 40 km/h maximum speed

• Servo-controlled precision drive

• Industrial communication interfaces

• Integration with robotic control systems

These features make it specifically engineered for robotics R&D, validation, and performance testing environments.
