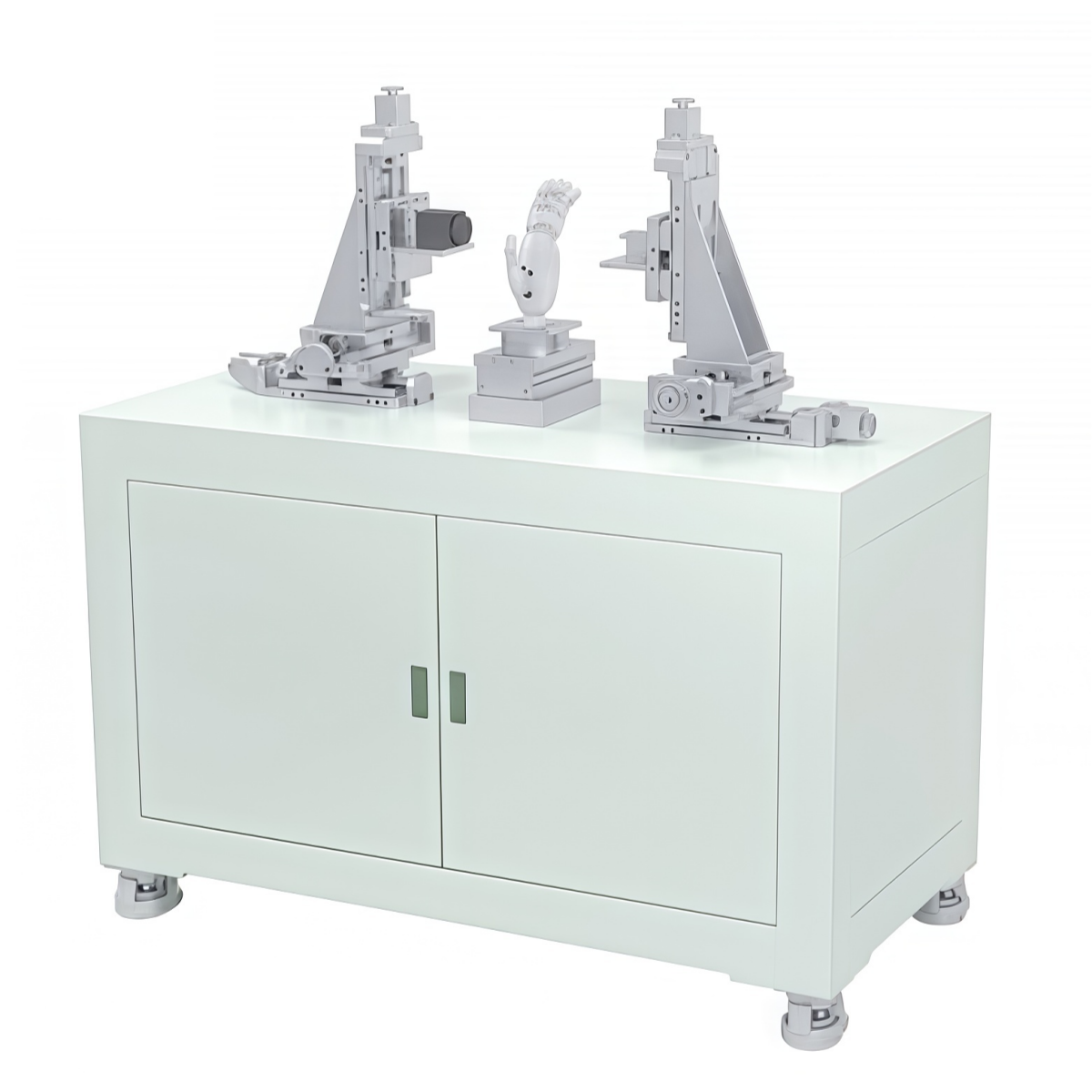

The Dexterous Hand Kinematics Testing System is a specialized measurement and validation platform designed for humanoid robot hands, dexterous manipulators, robotic grippers, and advanced end-effectors.

The system performs comprehensive kinematic performance testing, motion characterization, and calibration verification. With a high-speed data acquisition rate of up to 1 kHz, it captures complete motion trajectories, joint angles, positioning accuracy, movement speed, and gesture execution data in real time.

By providing precise motion analysis and quantitative performance evaluation, the system helps engineers optimize robot hand control algorithms, improve manipulation capabilities, and validate product performance throughout R&D and production stages.

Key Features & Advantages

Comprehensive Kinematic Performance Evaluation

The platform evaluates multiple motion-related parameters within a single testing environment, including:

• Joint angle measurement

• Motion trajectory tracking

• Position accuracy analysis

• Motion speed measurement

• Repeatability verification

• Gesture execution testing

• Dynamic motion performance evaluation

• System calibration validation

This enables a complete understanding of dexterous hand movement behavior under real operating conditions.

High-Speed Data Acquisition

With sampling rates up to 1,000 Hz, the system captures rapid finger and hand movements with exceptional temporal resolution.

Benefits include:

• Accurate motion reconstruction

• Dynamic movement analysis

• High-frequency control verification

• Detailed trajectory monitoring

Precision Motion Analysis

The system records and analyzes:

• Joint rotation angles

• Finger displacement

• Motion paths

• Velocity profiles

• Position deviations

• Repeatability performance

These measurements provide critical feedback for improving robotic hand control and mechanical design.

Calibration & System Verification

The platform supports kinematic calibration procedures used during:

• New product development

• Manufacturing quality verification

• Sensor validation

• Motion control optimization

• Periodic system maintenance

Advanced Control Development Support

The collected data can be used to:

• Optimize motion planning algorithms

• Improve grasping performance

• Refine gesture recognition

• Enhance manipulation accuracy

• Validate AI-based hand control systems

Technical Specifications

Main Test Functions

Joint Angle Measurement

Measures finger and joint rotation angles throughout the movement cycle.

Testing Purpose:
Verify whether each joint achieves the intended motion range and positioning accuracy.

Motion Displacement Measurement

Tracks linear and rotational movement distances of fingers and hand mechanisms.

Testing Purpose:
Evaluate motion consistency and validate actuator performance.

Motion Speed Measurement

Measures movement velocity during opening, closing, grasping, and gesture execution.

Testing Purpose:
Assess dynamic response capability and control system efficiency.

Repeatability Positioning Test

Repeatedly executes identical movements and compares endpoint positions.

Testing Purpose:
Determine positioning consistency and long-term stability.

Gesture Performance Testing

Analyzes execution quality of predefined hand gestures and manipulation sequences.

Testing Purpose:
Validate gesture recognition, motion coordination, and human-like hand behavior.

Dynamic Motion Performance Test

Captures complete movement trajectories during high-speed or complex operations.

Testing Purpose:
Evaluate motion smoothness, tracking accuracy, and overall kinematic performance.

Applications

Humanoid Robotics

• Dexterous hand development

• Finger joint validation

• Motion algorithm optimization

• Human-like manipulation testing

Service Robots

• Object handling verification

• Gesture interaction testing

• Precision grasping development

Industrial Robotics

• End-effector validation

• Automated manipulation systems

• Quality assurance testing

Research Institutes & Universities

• Robotics research

• Motion control studies

• Human-machine interaction projects

Compliance & Reference Standards

The system can be configured according to international robotics testing requirements and customer-specific validation procedures, including:

• ISO 9283 – Manipulating Industrial Robot Performance Testing

• ISO 13482 – Personal Care Robot Safety

• ISO 10218 – Industrial Robot Safety

• IEC 61508 – Functional Safety

• Internal R&D Validation Protocols

• Custom OEM Test Procedures

FAQ

1. What is the main purpose of a dexterous hand kinematics test?

Kinematic testing evaluates how accurately a robotic hand performs intended movements. It measures joint angles, trajectories, positioning accuracy, speed, and gesture execution to verify overall motion performance.

2. Why is repeatability testing important for humanoid robot hands?

A robot hand must consistently return to the same position when performing repetitive tasks. Repeatability testing identifies positioning drift, mechanical wear, and control system inconsistencies that could affect manipulation accuracy.

3. How does trajectory measurement improve robot hand development?

Trajectory analysis reveals the actual motion path followed by the hand or fingers during operation. Engineers can compare planned and actual trajectories to optimize control algorithms and improve movement precision.

4. What role does the 1 kHz sampling rate play in testing?

The high-speed acquisition rate captures fast finger movements and transient motion events that lower sampling systems may miss. This enables more accurate dynamic performance evaluation and control system tuning.

5. Can the system be used for robotic hand calibration?

Yes. The platform supports kinematic calibration by measuring actual joint positions, movement ranges, and motion errors. Calibration helps improve overall positioning accuracy and control performance.

6. What types of robot hands can be tested?

The system is suitable for:

• Humanoid robot hands

• Multi-finger dexterous hands

• Robotic grippers

• Prosthetic hands

• Service robot manipulators

• Research and experimental robotic end-effectors

It can also be customized for specific hand architectures and joint configurations.
