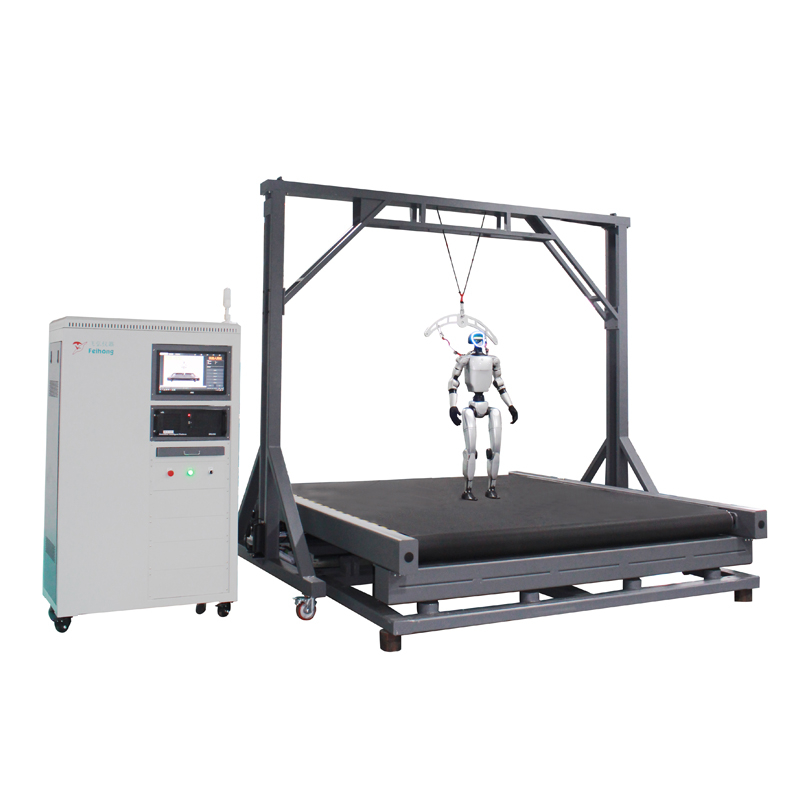

Humanoid Robot Dynamic Testing Platform
Product Overview
This high-performance dynamic testing platform is designed for complete robots and biomimetic motion systems. It supports controlled simulation of walking and motion conditions for research, development and validation.
Key Specifications
• Running surface: 3.2 m × 2.6 m
• Maximum load capacity: 320 kg
• Powered incline range: 0°–20°
• Speed range: -10 to 36 km/h
• Control: touch-screen control and remote control
• Automation interface: RS485
• Gantry: lithium-battery-powered lifting gantry
• Safety: dual emergency-stop system and industrial safety protection
Key Features
• Adjustable speed and incline for different robot motion programs
• Suitable for complex operating-condition simulation
• Stable platform structure for complete robot testing
• Convenient sample loading and unloading
• RS485 interface for automated test integration
• Dual control methods for flexible operation
• Safety protection designed for laboratory and industrial use
Typical Applications
The platform can be used for humanoid robots, legged robots and other biomimetic motion systems. Typical projects include dynamic performance evaluation, endurance testing, motion-program verification, comparative design testing and quality validation.
Customized Testing Solution
Final platform configuration should be confirmed according to robot dimensions, weight, motion range, test speed, incline program, communication protocol and site safety requirements. Contact Feihong with your robot drawings, test procedure and required data channels for a customized technical proposal.
