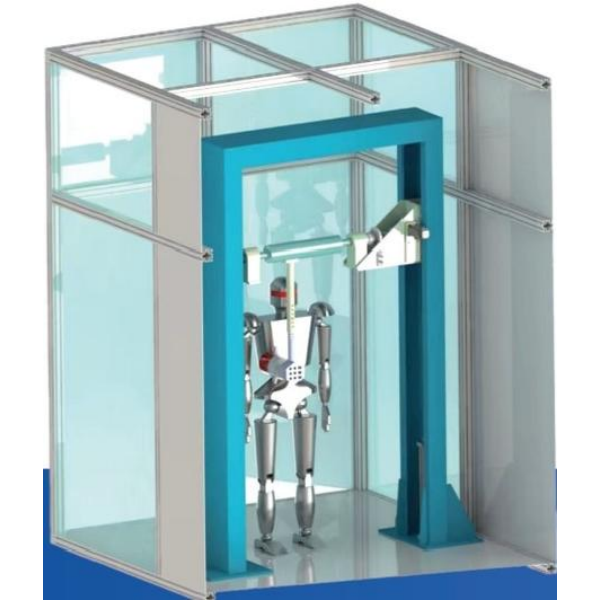

The Humanoid Robot Balance & Disturbance Resistance Testing System is a specialized validation platform designed to evaluate the dynamic stability, balance control, and disturbance recovery capabilities of humanoid robots and legged robotic systems.

The system applies controlled external disturbances through an adjustable pendulum mechanism, allowing engineers to assess how robots respond to unexpected impacts, pushes, and environmental interference. By measuring impact force, acceleration, and recovery behavior, the platform provides quantitative data for optimizing balance algorithms, motion control systems, and whole-body coordination strategies.

The modular design allows flexible adjustment of pendulum mass, release angle, impact position, and disturbance intensity, making it suitable for research laboratories, robot manufacturers, and certification testing organizations.

Key Features & Advantages

Realistic Disturbance Simulation

The pendulum system accurately reproduces real-world external forces that robots may encounter, including:

• Human pushes

• Accidental collisions

• Dynamic environmental disturbances

• Sudden lateral impacts

• Stability recovery challenges

This enables realistic testing of robot balance control performance.

Adjustable Impact Conditions

The system supports flexible test configurations:

• Adjustable pendulum length

• Multiple pendulum masses

• Variable release angles

• Adjustable impact height

• Multiple impact locations

This allows engineers to simulate a wide range of operating scenarios.

Automated Impact Execution

The pendulum lifting and release mechanism operates automatically, ensuring:

• Repeatable test conditions

• Improved testing efficiency

• Reduced operator influence

• Consistent impact energy

High-Speed Data Acquisition

The integrated measurement system records:

• Impact force

• Acceleration

• Recovery response

• Dynamic stability data

With acquisition rates up to 10 kHz, the system captures transient events and rapid balance adjustments with exceptional accuracy.

Enhanced Safety Protection

A dedicated safety enclosure and protective mechanisms help prevent accidental injury and equipment damage during impact testing.

Technical Specifications

Core Test Functions

Balance Stability Testing

The system applies controlled external impacts while monitoring the robot's ability to maintain upright posture.

Testing Logic:

A stable humanoid robot should absorb disturbances and recover balance without falling or entering unstable motion states.

Purpose:

Evaluate overall balance control performance and dynamic stability.

Push Recovery Testing

Controlled impact forces simulate real-world pushes or collisions.

Testing Logic:

After impact, the robot's controller must generate corrective actions such as ankle, hip, or stepping strategies to regain stability.

Purpose:

Assess recovery capability and balance algorithm effectiveness.

Anti-Disturbance Performance Evaluation

Multiple disturbance levels can be applied under repeatable conditions.

Testing Logic:

The robot is subjected to progressively increasing impact forces while monitoring recovery success rates.

Purpose:

Determine the robot's disturbance tolerance limits.

Acceleration Response Analysis

Acceleration sensors capture body movement immediately following impact.

Testing Logic:

Acceleration profiles reveal how effectively impact energy is absorbed and controlled.

Purpose:

Analyze dynamic response characteristics and control stability.

Impact Force Characterization

The system measures actual collision forces generated during testing.

Testing Logic:

Force profiles are correlated with robot motion data to evaluate structural robustness and control system behavior.

Purpose:

Support both mechanical design validation and control system optimization.

Applications

Humanoid Robots

• Balance algorithm validation

• Push recovery testing

• Dynamic locomotion development

• Fall prevention optimization

Bipedal Robots

• Walking stability assessment

• External disturbance evaluation

• Dynamic motion control testing

Service Robots

• Human interaction safety studies

• Collision recovery validation

Research Institutes & Universities

• Robotics control research

• Reinforcement learning validation

• AI-based balance control studies

Robot Manufacturers

• Product development

• Reliability verification

• Factory acceptance testing

• Certification support

Reference Standards & Industry Alignment

Although balance disturbance testing is often application-specific, the system supports evaluation methodologies aligned with international robotics development practices, including:

• IEEE humanoid robotics research protocols

• ISO robotics performance evaluation frameworks

• NIST mobile robot performance assessment methods

• Internal OEM robot validation procedures

• Custom R&D and certification testing programs

FAQ

1. Why is balance testing important for humanoid robots?

Humanoid robots operate in dynamic environments where unexpected disturbances are unavoidable. Balance testing verifies whether the robot can maintain stability and recover from external forces without falling.

2. What is the purpose of push recovery testing?

Push recovery testing evaluates how effectively a robot reacts after being disturbed. It measures whether the robot can use corrective movements such as stepping, ankle adjustment, or body posture compensation to regain balance.

3. Why use a pendulum impact system instead of manual pushing?

A pendulum provides highly repeatable and quantifiable impact conditions. This ensures consistent testing results and allows accurate comparison between different robot designs or control algorithms.

4. What data is collected during testing?

The system records:

• Impact force

• Acceleration

• Pendulum position

• Disturbance intensity

• Recovery behavior

• Stability performance

These measurements help engineers analyze robot response and optimize control strategies.

5. Can the impact strength be adjusted?

Yes. Impact intensity can be modified by adjusting:

• Pendulum mass (5 kg, 10 kg, or 15 kg)

• Pendulum length

• Release angle

• Impact location

This enables simulation of various real-world disturbance scenarios.

6. How does this system support humanoid robot development?

The platform provides objective and repeatable stability data that helps engineers:

• Improve balance algorithms

• Enhance push recovery performance

• Reduce fall risk

• Validate dynamic locomotion systems

• Accelerate robot commercialization and deployment

By quantifying balance performance under controlled disturbances, developers can confidently optimize robot stability before real-world operation.
