Product Overview

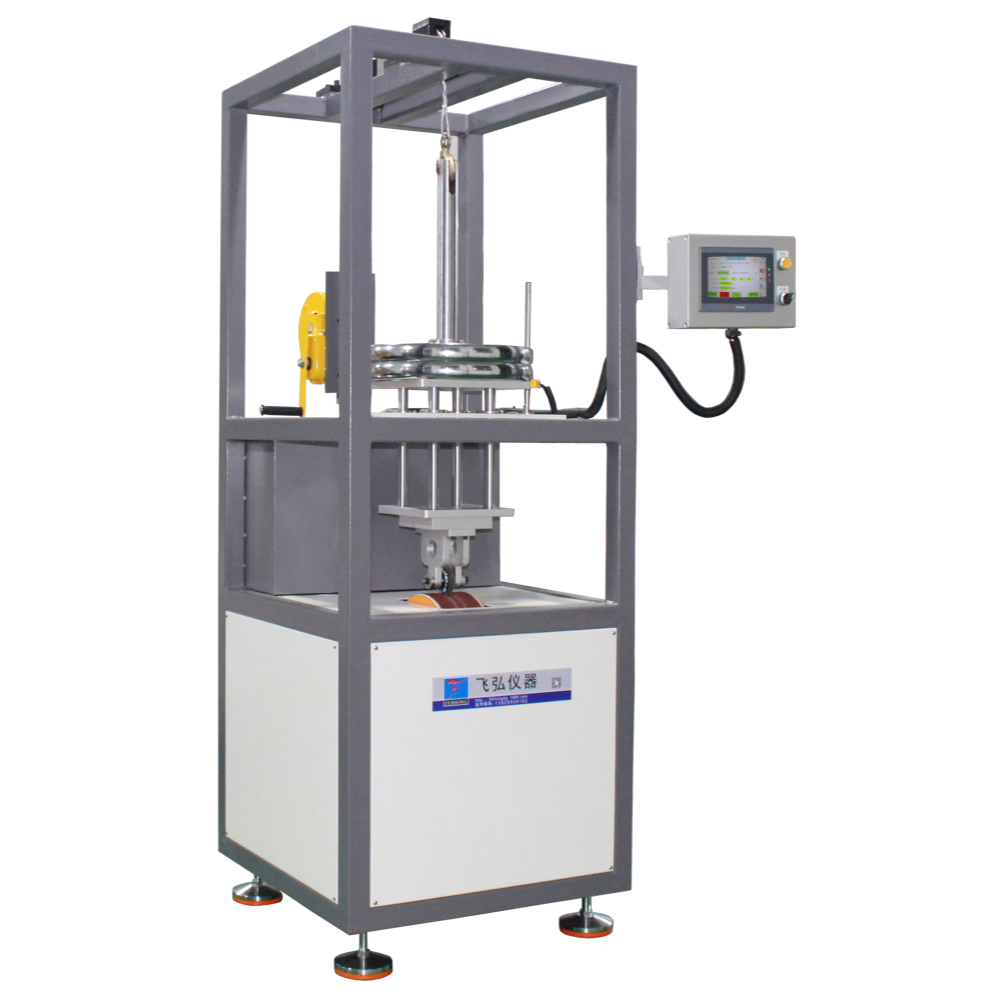

Roller Skate & Wheel Abrasion Testing Machine
The Roller Skate & Wheel Abrasion Testing Machine is designed according to QB/T 2920-2007 for evaluating the wear resistance, durability and structural integrity of wheels under continuous rolling conditions.
The system simulates real-world wheel operation by creating friction between a rotating abrasive drum and the test wheel under a controlled load. After a predetermined travel distance, wheel diameter reduction and wear loss can be measured accurately to assess material performance and service life.
Suitable for testing:
Roller skate wheels
Inline skate wheels
Scooter wheels
Luggage wheels
Suitcase wheels
PU wheels
Rubber wheels
Industrial small wheels
This machine is widely used in wheel manufacturing, product development laboratories, quality control departments and testing institutions.
Why Wheel Wear Testing Matters
Wheel performance directly affects:
✔ Product lifespan
✔ User safety
✔ Rolling efficiency
✔ Material durability
✔ Warranty costs
✔ Brand reputation
Traditional visual inspections cannot accurately predict long-term wheel performance.
The Roller Skate & Wheel Abrasion Testing Machine provides quantifiable wear data for product improvement and quality assurance.
Key Testing Functions
Long-Distance Rolling Test
Simulate years of wheel usage through accelerated endurance testing.
Users can set:
Travel distance
Test duration
Rolling speed
The machine automatically stops once the preset conditions are reached.
Benefits
Maximum programmable travel distance supports extended endurance studies.
Dynamic Rolling Test
The drum can rotate in both forward and reverse directions to simulate real operating conditions.
Features include:
This function helps evaluate wheel fatigue resistance and structural reliability.
Abrasion Resistance Test
The abrasive-covered drum continuously wears the wheel surface under load.
Testing results can be used to determine:
Material wear resistance
Surface degradation
Diameter loss
Product lifespan
Suitable for:
PU wheels
Rubber wheels
Composite wheels
Thermoplastic wheels
Obstacle Simulation Test
Optional obstacles can be mounted on the drum surface to simulate uneven terrain and repeated impacts.
Applications include:
Intelligent Control System
The machine features a PLC-based control platform with a 7-inch touchscreen interface.
Functions include:
✔ Speed adjustment
✔ Distance setting
✔ Runtime setting
✔ Pause interval programming
✔ Forward/reverse cycling
✔ Automatic stop function
✔ Power-off memory protection
This enables unattended testing and highly repeatable results.
Key Advantages
Realistic Wear Simulation
Accurately reproduces wheel friction and rolling wear experienced during actual use.
Adjustable Load Testing
Up to 200 kg of adjustable weight loading for different wheel applications.
Flexible Wheel Angle Settings
Three standard wheel tilt angles available:
Custom angles available upon request.
User-Friendly PLC Control
Touchscreen operation simplifies test setup and monitoring.
Reliable Data Collection
Provides repeatable wear data for R&D and quality assurance purposes.
Applications
Sports Equipment Industry
Roller skate wheels
Inline skate wheels
Training skate wheels
Luggage Industry
Suitcase wheels
Travel luggage wheels
Trolley wheels
Mobility Products
Material Research Laboratories
Quality Control Laboratories
Technical Specifications
Item | Specification |
Test Station | Single Station |
Wheel Diameter Range | 20–200 mm |
Abrasive Paper | 80# |
Drum Size | Ø198 × 120 mm |
Test Speed | 0–20 km/h Adjustable |
Wheel Tilt Angles | 0°, 5°, 9° |
Control System | PLC + 7" Touchscreen |
Maximum Load Weight | 200 kg |
Weight Configuration | 20 kg × 10 Weights |
Machine Dimensions | 960 × 1000 × 2050 mm |
Machine Weight | Approx. 292 kg |
Power Supply | AC220V, 50Hz |
Standard Compliance
Designed according to:
QB/T 2920-2007
Wheel wear resistance testing standard for luggage and rolling wheel products.
Custom testing solutions are available based on customer-specific requirements.
FAQ
What types of wheels can be tested?
The machine is suitable for roller skate wheels, inline skate wheels, luggage wheels, scooter wheels, PU wheels and various small industrial wheels.
Can wheel wear be quantified?
Yes. Wheel diameter reduction before and after testing can be measured to calculate wear loss accurately.
Can testing speed be adjusted?
Yes. Speed can be continuously adjusted between 0 and 20 km/h.
Is load adjustable?
Yes. The machine supports adjustable loading up to 200 kg using modular weights.
Can customized wheel fixtures be provided?
Yes. Custom fixtures can be designed according to wheel size and testing requirements.
