Applications

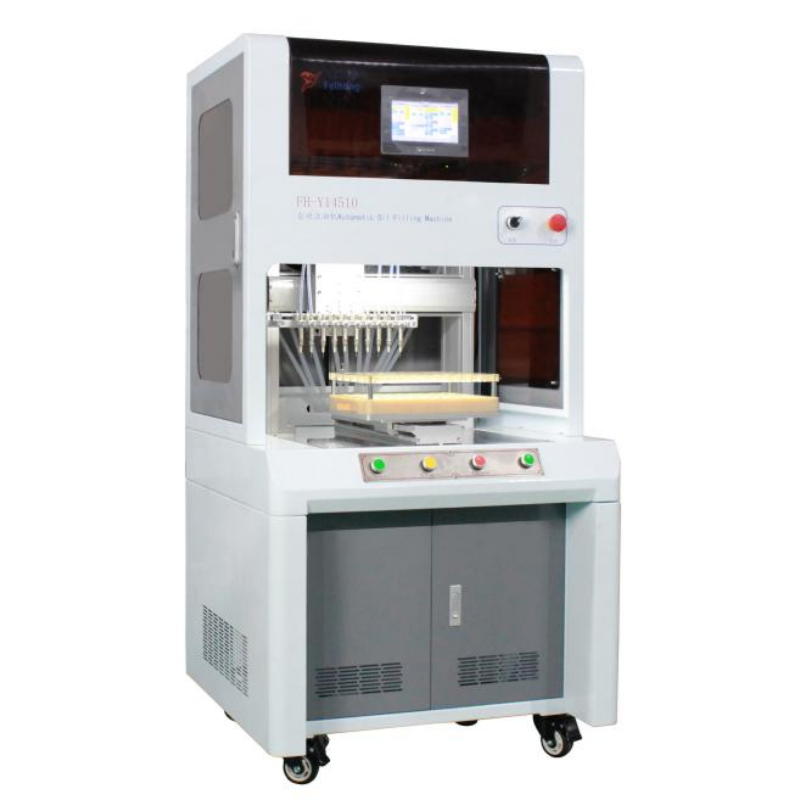

The 3-Axis 5-Head Automatic Filling Machine is specifically designed for high-precision e-liquid filling in disposable vape and vape cartridge production lines. Powered by stepper motors and a PLC control system, the machine utilizes precision metering pumps to deliver accurate and consistent liquid dosing.
During operation, vape devices are placed into custom fixtures mounted on the machine tray. The filling needles, positioned above the work area, are driven by X, Y, and Z-axis motion systems to accurately align with each product. Once the needles reach the programmed filling depth, the e-liquid is dispensed with high precision. After filling, the needles automatically retract to a safe height while the tray indexes to the next position. This cycle repeats until all products are filled.
With its exceptional filling accuracy, high production efficiency, and user-friendly operation, this machine is an ideal solution for modern vape manufacturing.
Key Features & Benefits
Four Filling Modes Available
The machine offers four programmable filling modes to accommodate different product and liquid requirements:
Advanced Functionality
1. Recipe Management
Store filling parameters for multiple product models.
Quickly switch between recipes without repeated setup.
User permission settings simplify production management.
2. Independent Filling Calibration
3. Automated Pump Cleaning Program
Built-in cleaning cycle for pump circulation cleaning.
Ideal before production, before shutdown, or when changing between different e-liquid formulations.
4. Individual Channel Control
5. Parameter Storage & Quick Changeover
Save optimized settings as product recipes.
Instantly recall stored parameters when switching products, reducing downtime and setup errors.
6. Multi-Level User Access Control
7. Food-Grade Wetted Components
Pump body constructed from 316 stainless steel.
Internal plunger rod made of high-performance ceramic material.
All components in contact with e-liquid are food-grade and contamination-free, ensuring product purity and safety.
Technical Specifications
Item | Specification |
Machine Dimensions | 670 × 770 × 1600 mm (W × D × H) |
Power Supply | AC 220V ±10%, 50Hz |
Net Weight | 152.5 ± 0.5 kg |
Transmission System | Timing Belt + Precision Linear Guide Rails |
Control System | PLC + 7-inch Touchscreen HMI |
Filling Travel (X/Y/Z) | 300 / 300 / 100 mm |
Filling Heads | 5 Filling Heads (Customizable) |
Filling Volume Range | 0.1 – 20 ml |
Pump Options | 10 ml or 20 ml Precision Metering Pump |
Filling Accuracy | ±0.02 ml |
Pump Wetted Parts | Food-Grade Materials |
Typical Applications
Disposable Vape Filling
CBD Vape Filling
THC Vape Cartridge Filling
Nicotine E-Liquid Filling
Vape Pod Manufacturing
Multi-Flavor Vape Production Lines
Small to Medium Batch Automated Filling Operations
The 3-Axis 5-Head Automatic Filling Machine combines precision dosing, flexible recipe management, and high-speed automation, making it an efficient and reliable solution for vape manufacturers seeking consistent product quality and increased production throughput.
