Applications:

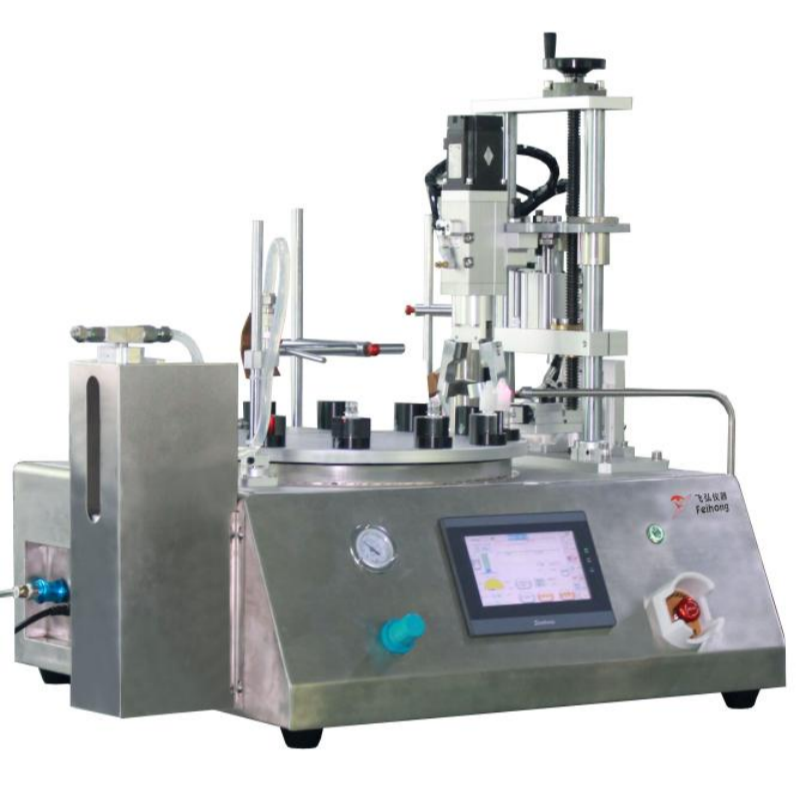

This all-in-one filling and capping machine is suitable for semi-automatic filling and capping of small vials in various shapes for the pharmaceutical, biotech, and cosmetics OEM industries. Different bottle shapes require only a mold change, while different cap shapes require a capping head change. Compact and space-saving, this machine offers high product compatibility, making it an ideal solution for the pharmaceutical and biotechnology industries.
Production Process: Manual tube loading – Automatic inspection – Automatic filling – Manual cap loading – Automatic capping – Automatic bottle discharge (pushed out via ejector).
Product Features and Benefits:
1. The filling section utilizes Feihong’s proprietary piston-type suction pump, ensuring high filling accuracy. The product comes into contact only with the tube, facilitating easy cleaning.
2. Servo motor-driven capping with adjustable torque and torque percentage display, achieving a high capping success rate.
3. Automatic sensing ensures no dripping or leakage; no filling occurs without a bottle; precise alignment with adjustable settings.
Technical Specifications:
1. Filling Method: Piston-type suction pump
2. Filling Accuracy: ±1%
3. Capping Pass Rate: ≥99%
4. Production Capacity: 15–35 bottles per minute (Depends on filling volume and operator speed)
5. Filling Volume: 1–60 ml (adjustable)
6. Voltage: 220 V/50 Hz
7. Air Pressure: 0.4–0.6 MPa
8. Dimensions: 900 x 650 x 765 mm (L x W x H)
9. Weight: Approx. 60 kg
