Automatic Vape Filling & Cap Assembly Machine | E-Liquid Filling, Silicone Plug Insertion and Cap Tightening System

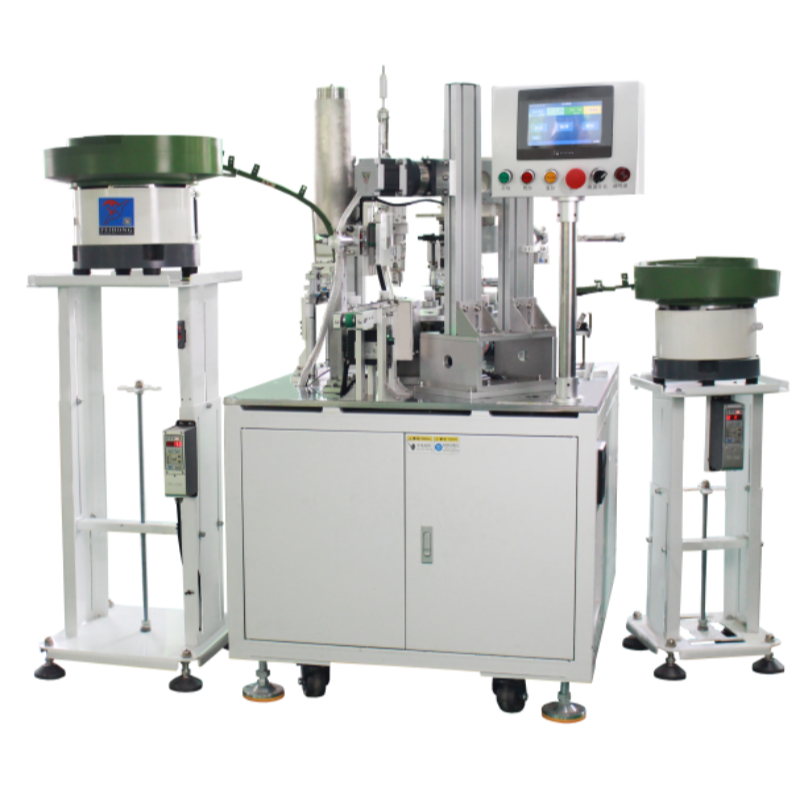

The Automatic Filling & Cap Assembly Machine is designed for the automated assembly of vape cartridges, CBD cartridges, THC cartridges, and other atomizer products. The machine integrates e-liquid filling, silicone plug insertion, aluminum cap assembly, cap tightening, and automatic unloading into a single automated process.

Controlled by a PLC touchscreen system, the machine utilizes a high-precision indexing rotary table to ensure accurate positioning at each station. A vibration bowl feeder automatically supplies components, minimizing manual labor while increasing production efficiency. The precision metering pump delivers accurate and adjustable filling volumes, ensuring consistent product quality.

With a production capacity of up to 1,500 pieces per hour, this machine is an ideal solution for manufacturers seeking reliable, efficient, and automated vape cartridge assembly.

Key Features & Benefits

• All-in-One Filling & Assembly Solution

  • E-liquid filling

  • Silicone plug insertion

  • Aluminum cap assembly

  • Cap tightening

  • Automatic product unloading

• High-Precision Metering Pump

  • Accurate liquid dosing

  • Adjustable filling speed and volume

  • Suitable for various oil viscosities

• Rotary Indexing Table System

  • High positioning accuracy

  • Smooth and stable operation

  • Consistent assembly quality

• Automatic Component Feeding

  • Vibration bowl feeder reduces manual handling

  • Improves production efficiency

  • Ensures continuous operation

• PLC Touchscreen Control

  • User-friendly interface

  • Easy parameter adjustment

  • Simplified production management

• High Production Capacity

  • Output up to 1,500 PCS/hour

  • Suitable for medium and large-scale manufacturing

• Automatic Product Discharge

  • Reduces labor requirements

  • Streamlines production workflow

Technical Specifications

FAQ

Q1: What is a Vape Filling & Cap Assembly Machine used for?

This machine automates the filling, plug insertion, cap assembly, and cap tightening processes for vape cartridges, helping manufacturers improve production efficiency and product consistency.

Q2: What products can be assembled on this machine?

The machine is suitable for vape cartridges, CBD cartridges, THC cartridges, ceramic coil cartridges, and other oil-filled atomizer products.

Q3: How does the filling system work?

The machine uses a high-precision metering pump to dispense a controlled amount of e-liquid or oil into each cartridge. Both filling speed and filling volume can be adjusted according to production requirements.

Q4: Does the machine automatically install silicone plugs?

Yes. The machine includes an automatic silicone plug insertion station that accurately installs plugs after the filling process.

Q5: Can the machine automatically tighten cartridge caps?

Yes. After cap placement, the machine automatically tightens the aluminum cap to a preset torque, ensuring consistent sealing quality.

Q6: What is the production capacity of the machine?

The machine can achieve a production capacity of 1,500 pieces per hour or higher, depending on product specifications and operating conditions.

Q7: Is the machine suitable for CBD and THC oil cartridges?

Yes. The precision filling system is compatible with various oil formulations, including nicotine e-liquids, CBD oils, and THC extracts.

Q8: What are the advantages of using an automatic cartridge assembly machine?

Key benefits include:

• Reduced labor costs

• Higher production efficiency

• Consistent filling accuracy

• Improved assembly quality

• Lower defect rates

• Increased production scalability
