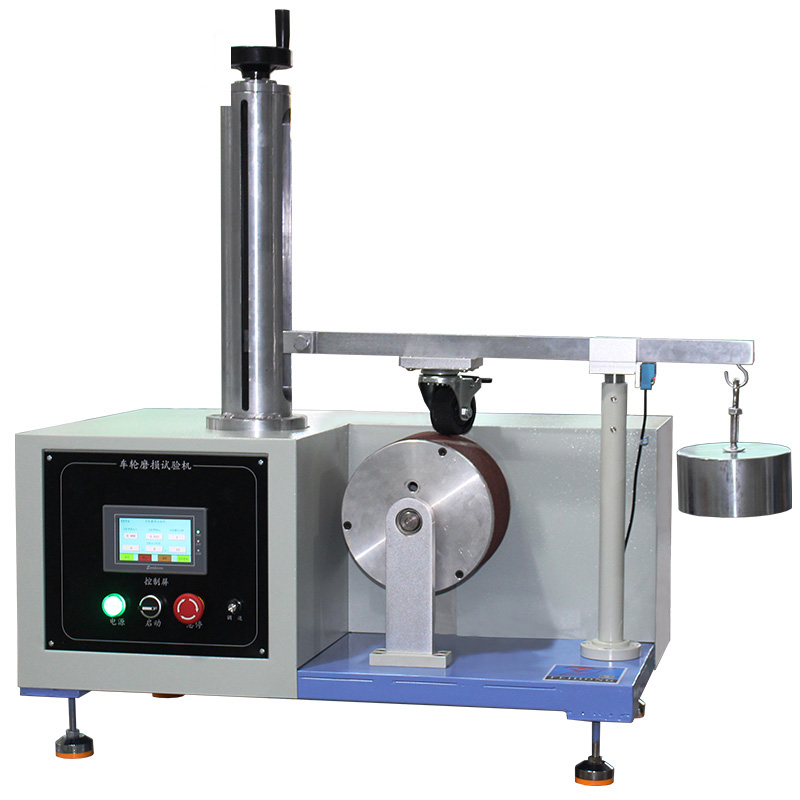

The Wheel Abrasion Test Machine is designed to determine the abrasion resistance and durability of wheels used in luggage, suitcases, travel cases and similar products.

During testing, the wheel continuously rolls against a cement drum under a specified load, simulating long-term usage conditions. After completing the test cycle, wheel wear, deformation and structural integrity can be evaluated to assess product quality and expected service life.

The system provides adjustable speed control, programmable travel distance and automatic operation, making it an essential tool for quality assurance, product development and material comparison testing.

Why Wheel Abrasion Testing Is Important

Wheels experience continuous friction, impact and load during daily use.

Without proper testing, manufacturers may encounter:

✔ Excessive wheel wear

✔ Reduced product lifespan

✔ Structural deformation

✔ Poor rolling performance

✔ Customer complaints

✔ Increased warranty claims

Abrasion testing helps verify wheel quality before products reach the market.

Key Testing Functions

Wheel Abrasion Resistance Test

The wheel is pressed against a rotating cement drum under a specified load to simulate long-term rolling conditions.

Evaluates

• Material wear resistance

• Surface abrasion performance

• Wheel lifespan

• Product consistency

Structural Durability Assessment

The system evaluates whether wheel assemblies exhibit:

• Cracking

• Deformation

• Structural damage

• Material failure

after prolonged testing.

Programmable Test Distance

The total travel distance can be freely configured according to testing requirements.

Benefits

• Accelerated durability testing

• Product comparison studies

• Lifecycle performance evaluation

Adjustable Speed Control

Testing speed can be adjusted to simulate different operating conditions.

Adjustable Speed Range

0 – 5 km/h

Pause Function During Testing

Users can program automatic pause intervals during testing cycles.

Advantages

• Simulate real-world operating conditions

• Increase testing flexibility

• Support customized test procedures

Power Failure Memory Function

The system automatically saves testing parameters and progress.

Benefits

• Prevents data loss

• Improves testing efficiency

• Supports long-duration testing

Intelligent PLC Control System

The machine features a PLC control platform with a 7-inch touchscreen interface.

Functions Include

✔ Speed setting

✔ Travel distance setting

✔ Test duration setting

✔ Pause interval setting

✔ Automatic operation

✔ Power failure memory

✔ Real-time parameter display

Key Advantages

Accurate Wear Simulation

The cement drum accurately reproduces abrasive rolling conditions encountered during actual use.

User-Friendly Touchscreen Operation

Simple parameter configuration and monitoring through a large LCD interface.

Reliable Test Repeatability

PLC automation ensures consistent testing conditions and repeatable results.

Compact Design

Space-saving structure suitable for laboratories, quality control departments and manufacturing facilities.

Standard-Compliant Testing

Designed according to luggage wheel durability testing requirements.

Applicable Standard

Designed according to:

QB/T 2920-2007

Testing method for luggage, suitcase and travel case wheel abrasion resistance evaluation.

Typical Applications

Luggage Manufacturers

• Product development

• Quality inspection

• Durability verification

Suitcase Manufacturers

• Wheel performance evaluation

• Material comparison testing

• Product reliability improvement

Wheel Manufacturers

• Wear resistance testing

• Material validation

• Product optimization

Testing Laboratories

• Compliance testing

• Third-party inspection

• Product certification support

Research & Development Centers

• New material evaluation

• Wheel design improvement

• Lifecycle performance studies

Technical Specifications

Standard Testing Procedure

Step 1

Install the wheel sample onto the test fixture.

Step 2

Select the appropriate test load.

Step 3

Set speed, distance and test duration.

Step 4

Start automatic abrasion testing.

Step 5

Inspect wheel wear, deformation and structural condition after completion.

Step 6

Analyze results for product evaluation and quality improvement.

FAQ

What types of wheels can be tested?

The machine is suitable for luggage wheels, suitcase wheels, travel case wheels and similar rolling components.

Can the testing speed be adjusted?

Yes. The testing speed is adjustable from 0 to 5 km/h.

Does the machine support long-duration testing?

Yes. Programmable distance and time settings allow extended endurance testing.

What wheel loads are available?

Standard wheel loads include 10 kg, 11 kg and 12 kg.

Is power failure protection included?

Yes. The machine features power failure memory to preserve testing progress and parameters.

Improve Wheel Durability and Product Reliability

Evaluate wheel wear resistance, structural integrity and long-term performance under controlled laboratory conditions.

Reduce Failures • Improve Product Quality • Extend Service Life
