Product Application

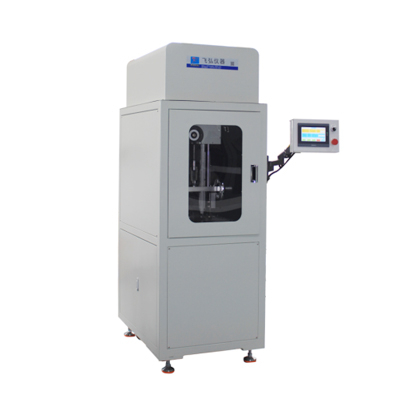

This machine evaluates the wear resistance and running durability of tires and caster wheels under controlled load. The specimen runs against test rollers for a preset time or distance, after which tire diameter and wear can be measured.
Key Features
Long-distance running tests with preset time and mileage
Forward and reverse dynamic tests with adjustable dwell time
Up to 9,999 programmable test cycles
Wear testing with gauze-surface or acrylic-coated rollers
Obstacle blocks simulate bumps during rolling
Programmable acceleration, deceleration and variable-speed conditions
Touchscreen control with real-time speed and mileage display
Test data export in CSV or XLS format
Enclosed test chamber with emergency stop and overload protection
Technical Specifications
Number of stations: 1
Roller structure: Dual hollow-steel rollers with acrylic coating
Roller diameter: ≥400 mm
Roller width: ≥150 mm
Maximum axle load: ≥200 kg
Available test loads: 5, 10, 15 and 20 kg
Maximum simulated speed: 0–40 km/h
Maximum acceleration/deceleration: ≥10 m/s²
Speed control accuracy: ±0.1 km/h
Noise level: ≤65 dB
Machine dimensions: 1060 (minimum 700) × 980 × 1990 mm
Power supply: 220 V, 15 A, 3 kW
