Overview

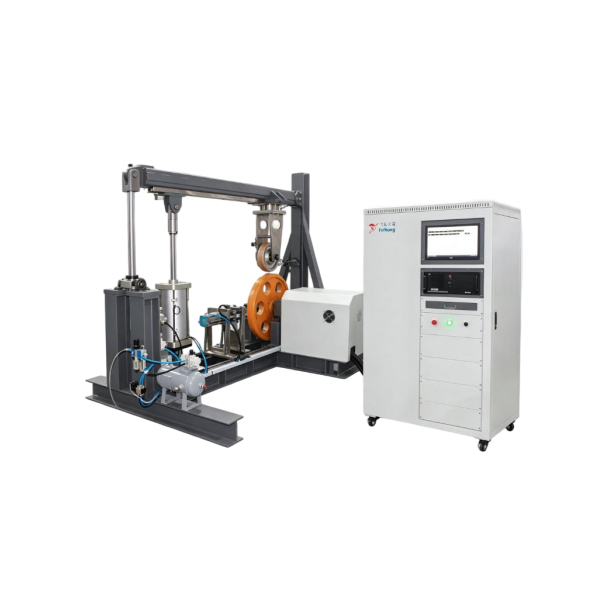

The 8-ton caster rolling durability test machine uses a driven drum to evaluate heavy-duty casters under dynamic running, long-distance endurance and static load conditions. It supports forward and reverse testing, adjustable speed and real-time monitoring.
Key Specifications
• Load range: 50 kg to 8,000 kg
• Load application: pneumatic cylinder with linkage
• Linkage offset adjustment: 100 mm
• Running speed: 1–200 km/h
• Wheel diameter: 50–500 mm
• Drums: R70 roller for coaster wheels and flat roller with ISO 22883 obstacles
• Functions: forward/reverse rotation and programmable running and pause times
• Monitoring: dual temperature sensors for tread and sidewall, PC software and automatic curve recording
• Safety: automatic shutdown on wheel damage, protective guard and splash shield
