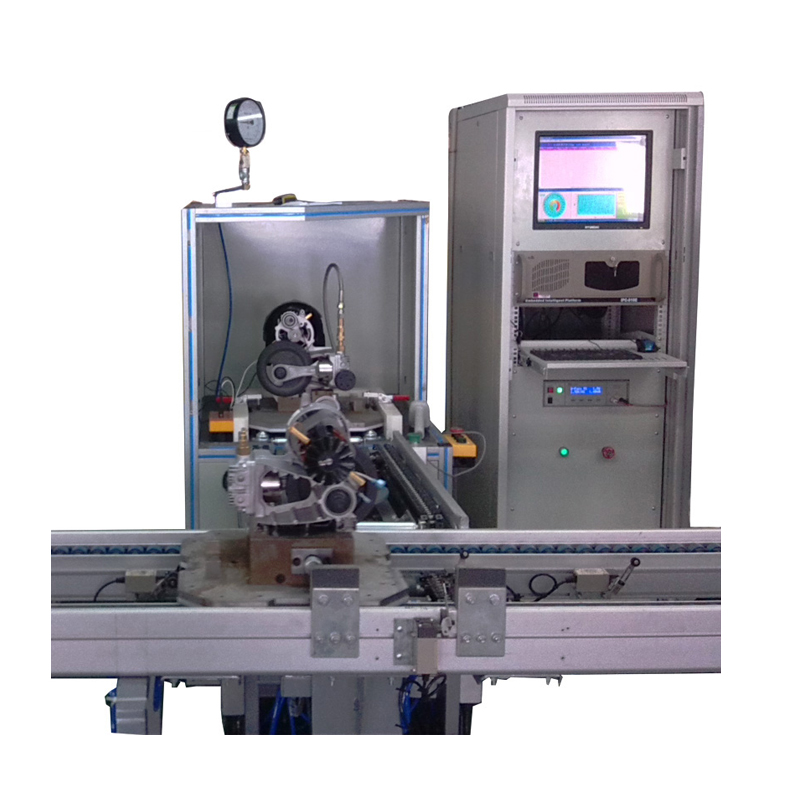

Air Compressor Pump Head Test System

The Air Compressor Pump Head Test System is designed to evaluate the core performance characteristics of air compressor pump heads, vacuum pumps and air pump assemblies.

The system provides automated testing of inflation performance, electrical parameters, rotational speed and maximum pressure capability, ensuring every pump head meets design specifications before assembly or shipment.

Suitable for:

• Air compressor pump heads

• Mini air compressors

• Portable compressors

• Automotive air pumps

• Vacuum pumps

• Inflator pumps

• Industrial air pumps

Widely used in manufacturing facilities, R&D laboratories and quality control departments.

Why Pump Head Testing Matters

The pump head is the most critical component of any compressor system.

Performance variations can result in:

✔ Slow inflation performance

✔ Excessive power consumption

✔ Overloaded motors

✔ Reduced pressure output

✔ Product inconsistency

✔ Increased warranty claims

Our automated testing system identifies performance issues before products enter the market.

Key Testing Functions

Inflation Time Test

Evaluate pumping efficiency by measuring the time required to pressurize a standard air tank.

Standard Test Condition

• Tank Volume: 4.5 Gallons

• Pressure Range: 90 PSI → 130 PSI

The system automatically records inflation time and compares results against predefined specifications.

Benefits

• Pump efficiency verification

• Production consistency control

• Product performance comparison

Current Consumption Test

Real-time current monitoring ensures stable electrical performance during operation.

Parameters measured:

• Running current

• Peak current

• Current stability

Applications

• Motor performance validation

• Energy consumption analysis

• Overload detection

Maximum Pressure Test

Automatically determines the maximum pressure capability of the compressor head.

Safety Function

The system automatically stops testing when pressure exceeds:

200 PSI

This protects both the test equipment and the product being tested.

Benefits

• Pressure performance verification

• Product safety validation

• Production quality control

Power Consumption Test

Measures actual power consumption during operation.

Recorded parameters include:

• Voltage

• Current

• Power

Advantages

• Energy efficiency analysis

• Product optimization

• Performance benchmarking

Rotational Speed Test (RPM)

Accurately measures pump head rotational speed during operation.

Monitoring Benefits

• Verify motor matching

• Detect mechanical abnormalities

• Analyze operational stability

RPM data is automatically recorded and included in test reports.

Intelligent Control System

The PLC-based testing platform provides fully automated operation and data acquisition.

Functions include:

✔ Automatic test sequencing

✔ Real-time parameter monitoring

✔ Pressure protection

✔ Data logging

✔ Pass/Fail judgment

✔ Report generation

✔ Production line integration

The system minimizes operator intervention while improving testing consistency.

Key Advantages

Fast Production Testing

Designed for high-efficiency quality control and production line inspection.

Comprehensive Performance Evaluation

Multiple key performance indicators tested within a single platform.

Accurate Data Collection

Automated measurement eliminates human error and improves repeatability.

Intelligent Safety Protection

Automatic shutdown protects equipment and products from overpressure conditions.

Customizable Test Programs

Testing procedures can be tailored to different compressor models and customer requirements.

Typical Applications

Air Compressor Manufacturers

• Pump head inspection

• Production quality control

• Factory acceptance testing

Automotive Industry

• Tire inflator pumps

• On-board air compressors

• Portable air systems

Vacuum Pump Manufacturers

• Performance validation

• Product reliability testing

Industrial Equipment Manufacturers

• Pneumatic systems

• Air supply units

• Compressor assemblies

Research & Development Laboratories

• Product development

• Design verification

• Comparative testing

Technical Specifications

Standard Production Workflow

Step 1

Install the pump head on the test fixture.

Step 2

Select the corresponding test program.

Step 3

Start automatic testing.

Step 4

System performs:

• Inflation time test

• Current test

• Power test

• Maximum pressure test

• RPM test

Step 5

Automatic pass/fail judgment and report generation.

FAQ

What types of compressor heads can be tested?

The system supports air compressor pump heads, vacuum pumps, inflator pumps and customized air pump assemblies.

Can the machine automatically stop when pressure exceeds the limit?

Yes. The system automatically stops when pressure exceeds 200 PSI or a user-defined threshold.

Does the machine measure power consumption?

Yes. Voltage, current and power are measured and recorded automatically.

Can the system be integrated into a production line?

Yes. The software and fixtures can be customized for automated production environments.

Is custom testing software available?

Yes. Test parameters, reports and evaluation criteria can be customized according to customer requirements.

Improve Compressor Quality with Automated Performance Testing

Verify inflation efficiency, pressure output, electrical performance and operating stability before products leave the factory.
